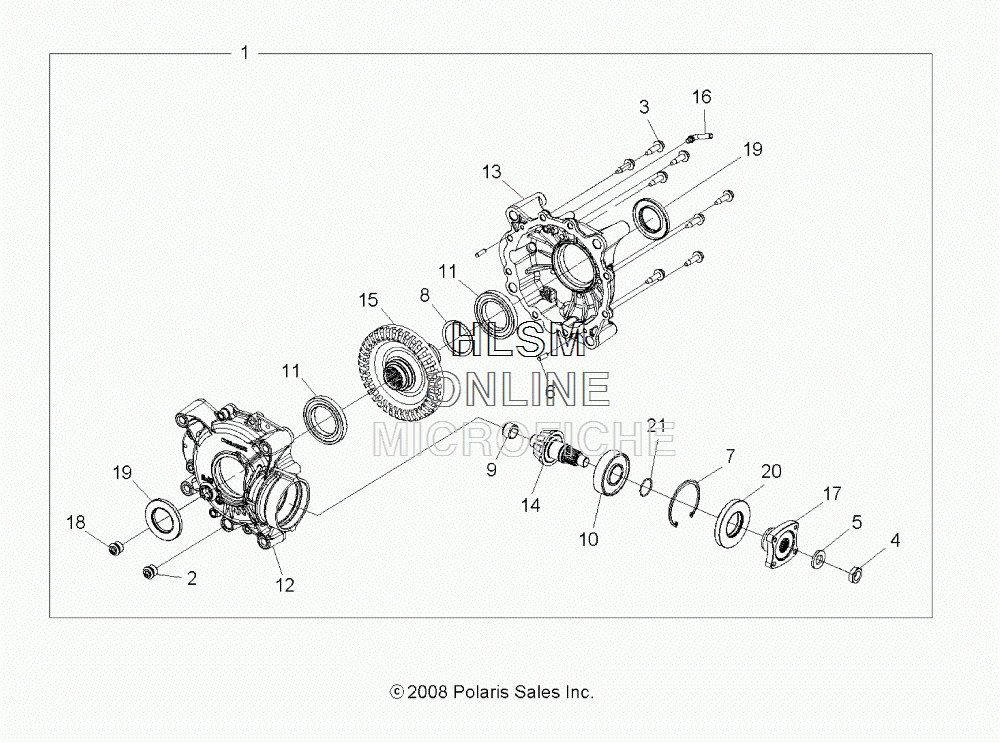

REAR GEARCASE - INTERNAL (BUILT 12/01/08 AND BEFORE) для Polaris SPORTSMAN XP 550 [A09ZN55AX] (GREEN) - 2009 года выпуска
-
№АртикулНазвание
-
11332492 GEARCASE, REAR (INCL. ALL)GEARCASE, REAR (INCL. ALL)
-
23234756 PLUG, SOCKET HEAD W/MAGNETPLUG, SOCKET HEAD W/MAGNET
-
33234329 SCREWSCREW
-
43234776 NUT, HEXNUT, HEX
-
53234777 WASHER, LOCKINGWASHER, LOCKING
-
63234330 PIN, DOWELPIN, DOWEL
-
73234158 RING, RETAININGRING, RETAINING
-
83233554 SHIMSHIM
-
93233577 BEARINGBEARING
-
103233714 BEARING, BALLBEARING, BALL
-
113234275 BEARING, BALLBEARING, BALL
-
123234779 CASE, MAINCASE, MAIN
-
133234682 SUBASM., COVER (INCL. 6)SUBASM., COVER (INCL. 6)
-
143234780 SHAFT, PINION, 10TSHAFT, PINION, 10T
-
153234781 GEAR, 37TGEAR, 37T
-
163234230 TUBE, VENTTUBE, VENT
-
173234782 COUPLERCOUPLER
-
183234755 PLUG, SOCKET HEADPLUG, SOCKET HEAD
-
193234783 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
203234784 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
213234785 O-RINGO-RING
