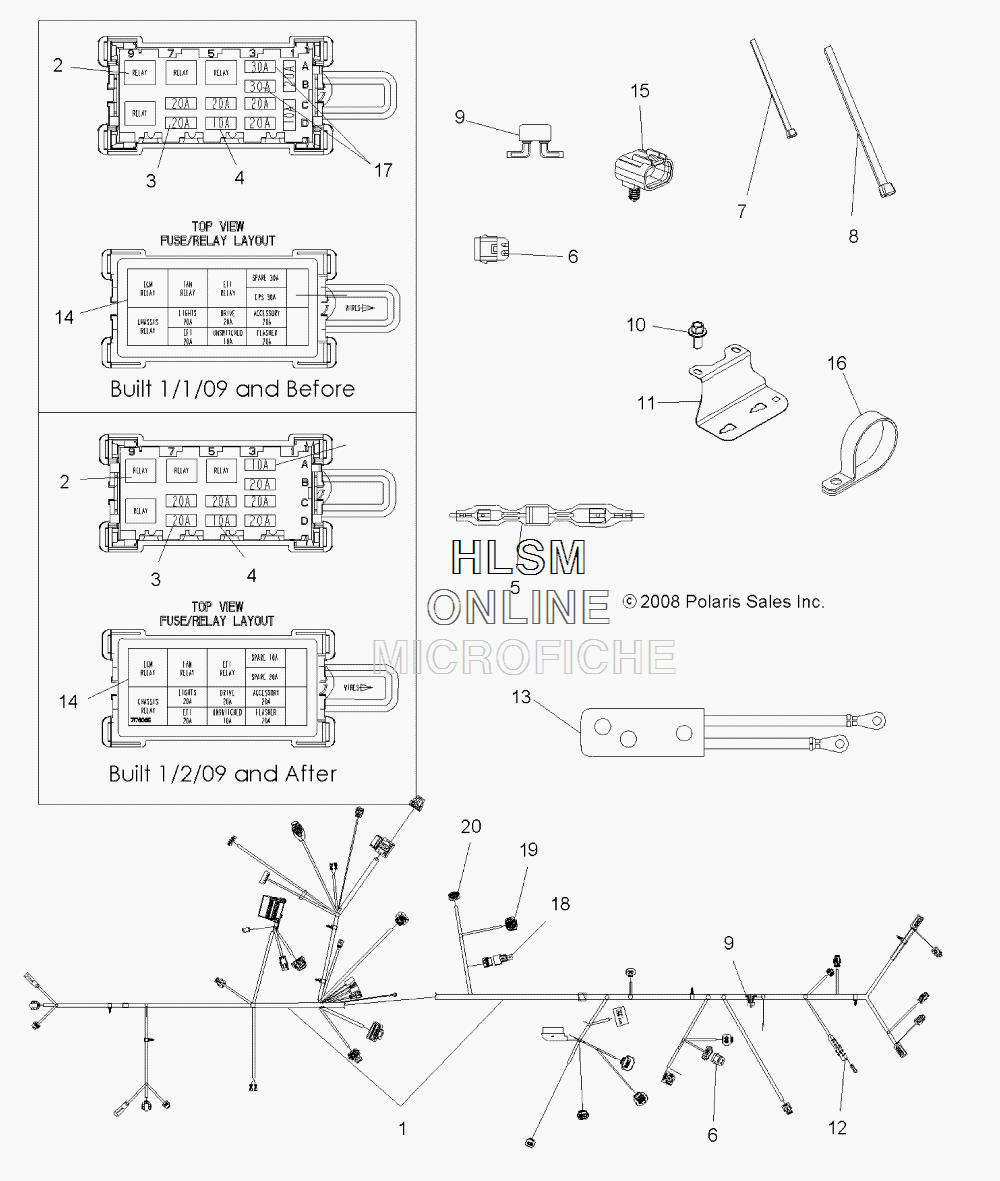

WIRE HARNESS для Polaris SPORTSMAN XP 550 INTL. [A09ZN55FX] - 2009 года выпуска
-
№АртикулНазвание
-
12411231 HARNESS, MAIN, SINGLE, INT'L (BUILT 1/01/09 AND BEFORE) (INCL. 1-6,9,12,14,15,17-20, ALL KITS)HARNESS, MAIN, SINGLE, INT'L (BUILT 1/01/09 AND BEFORE) (INCL. 1-6,9,12,14,15,17-20, ALL KITS)
-
12411337 HARNESS, MAIN, SINGLE, INT'L (BUILT 1/02/09 AND AFTER){INCL. 1-6,9,12,14,15,17-20, ALL KITS)HARNESS, MAIN, SINGLE, INT'L (BUILT 1/02/09 AND AFTER){INCL. 1-6,9,12,14,15,17-20, ALL KITS)
-
12877771 KIT, HARNESS, HANDLEBAR SWITCHKIT, HARNESS, HANDLEBAR SWITCH
-
12877772 KIT, HARNESS, HANDLEBAR SWITCHKIT, HARNESS, HANDLEBAR SWITCH
-
12877773 KIT, HARNESS, HANDLEBAR SWITCHKIT, HARNESS, HANDLEBAR SWITCH
-
12878498 KIT, HARNESS, TPSKIT, HARNESS, TPS
-
24011283 RELAYRELAY
-
32434017 FUSE, 20AMPFUSE, 20AMP
-
42434016 FUSE, 10AMPFUSE, 10AMP
-
52411035 DIODE, 6AMPDIODE, 6AMP
-
64010924 MODULE, RESISTORMODULE, RESISTOR
-
77080138 CABLE TIECABLE TIE
-
87080492 CABLE TIECABLE TIE
-
92410692 BREAKER, CURCUIT, 10 AMPBREAKER, CURCUIT, 10 AMP
-
107518513 SCREWSCREW
-
115250452 BRACKET, MOUNT, FUSE BLOCKBRACKET, MOUNT, FUSE BLOCK
-
122202607 KIT, FUSIBLE LINK, .8 MMKIT, FUSIBLE LINK, .8 MM
-
122203632 KIT, FUSIBLE LINK, 2.0 MMKIT, FUSIBLE LINK, 2.0 MM
-
132411186 HARNESS, WINCH, PRE-WIREHARNESS, WINCH, PRE-WIRE
-
147175635 LABEL, FUSE BOX (BUILT 1/01/09 AND BEFORE)LABEL, FUSE BOX (BUILT 1/01/09 AND BEFORE)
-
147176065 LABEL, FUSE BOX (BUILT 1/02/09 AND AFTER)LABEL, FUSE BOX (BUILT 1/02/09 AND AFTER)
-
154012170 COVER, DIAGNOSTICCOVER, DIAGNOSTIC
-
167080807 CLAMP, HOSECLAMP, HOSE
-
172434015 FUSE, MAIN, 30 AMP (USED W/2411231 ONLY)FUSE, MAIN, 30 AMP (USED W/2411231 ONLY)
-
184011407 RELAY, SEALEDRELAY, SEALED
-
187512113 BOLT (RELAY MOUNTING)BOLT (RELAY MOUNTING)
-
187542105 NUT (RELAY MOUNTING)NUT (RELAY MOUNTING)
-
195430713 PLUG, TUBEPLUG, TUBE
-
205438183 PLUG, TUBEPLUG, TUBE
