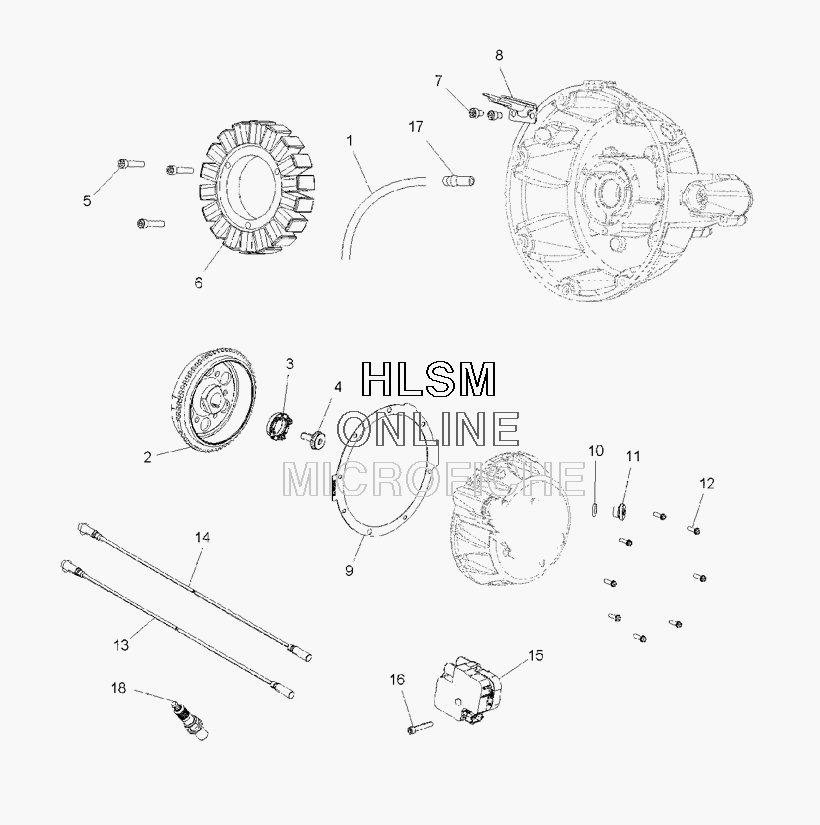

IGNITION SYSTEM для Polaris SPORTSMAN XP 850 (A09ZN85AL) (PAINTED RED) - 2009 года выпуска
-
№АртикулНазвание
-
18360072 TUBING-NYLON 5MMX144MM BLKTUBING-NYLON 5MMX144MM BLK
-
24011428 FLYWHEEL-450W 165MM W/ENCODRNGFLYWHEEL-450W 165MM W/ENCODRNG
-
35136307 COUPLER-WATERPUMP,FLYWHEELCOUPLER-WATERPUMP,FLYWHEEL
-
45136389 BOLT-WATERPUMP DRIVE LEFT HANDBOLT-WATERPUMP DRIVE LEFT HAND
-
57518544 SCR-M6X1.0X30,HX/SOC/CP-Y/DSCR-M6X1.0X30,HX/SOC/CP-Y/D
-
64011427 STATOR-450W W/GROMMETSTATOR-450W W/GROMMET
-
77518765 SCR-M6X1.0X10,SHCSSCR-M6X1.0X10,SHCS
-
85250018 RETAINER-STATOR WIRERETAINER-STATOR WIRE
-
95813267 GASKET-STATOR COVERGASKET-STATOR COVER
-
105411564 O-RINGO-RING
-
115433820 PLUG,HOLE,TMNG,3/4-16,NYLONPLUG,HOLE,TMNG,3/4-16,NYLON
-
127518576 SCR-M6X20,HXFLG,0600214SCR-M6X20,HXFLG,0600214
-
134012343 WIRE-SPARKPLUG MAG 356MMWIRE-SPARKPLUG MAG 356MM
-
144012344 WIRE-SPARKPLUG PTO 406MMWIRE-SPARKPLUG PTO 406MM
-
154010425 KIT-IGNITION COIL,TWIN EFIKIT-IGNITION COIL,TWIN EFI
-
167518922 SCR-10X1.00 TX PN HI/LO-YSCR-10X1.00 TX PN HI/LO-Y
-
177052145 FITTINGFITTING
-
183022111 SPARKPLUG-12MM,CHAMPIONSPARKPLUG-12MM,CHAMPION
