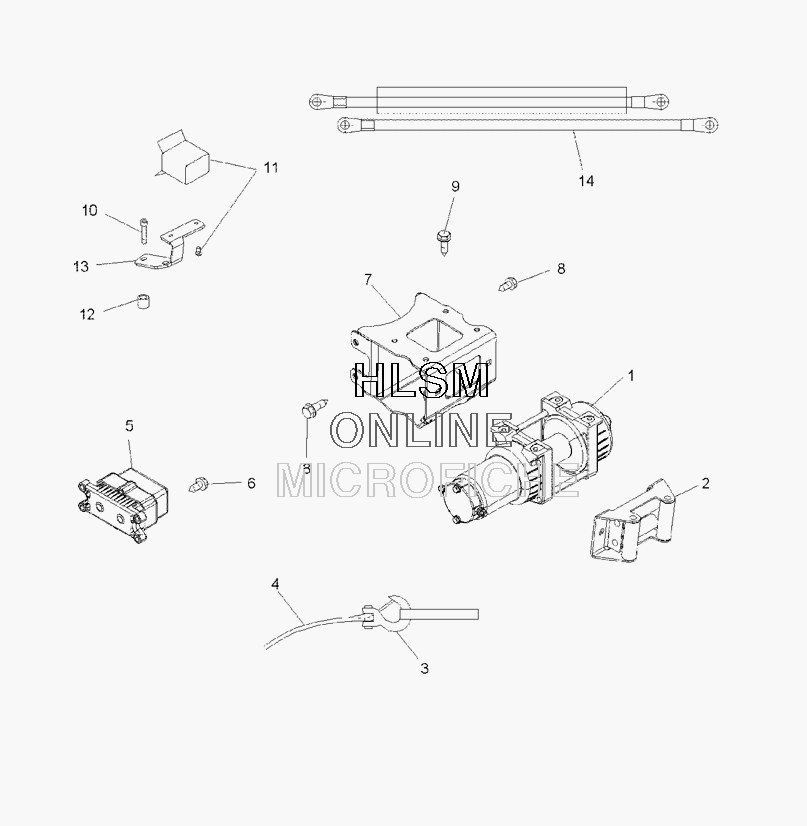

WINCH для Polaris SPORTSMAN XP 850 (A09ZN85AT) (HUNTER) LE) - 2009 года выпуска
-
№АртикулНазвание
-
15632233 ROLLERROLLER
-
22875997 FAIRLEAD,ROLLER,POLARIS WINCH (INCL. BRACKET AND ROLLER)FAIRLEAD,ROLLER,POLARIS WINCH (INCL. BRACKET AND ROLLER)
-
32410934 HOOKHOOK
-
42874373 CABLE,WINCH,50 FEETCABLE,WINCH,50 FEET
-
52876657 CONTACTOR, POLARIS WINCHCONTACTOR, POLARIS WINCH
-
67518306 SCR-1/4-20X1.50-HX/W-TAPR-GP-YSCR-1/4-20X1.50-HX/W-TAPR-GP-Y
-
71015802 WELD-WINCH MOUNTWELD-WINCH MOUNT
-
87518514 BOLT-M8X1.25X25,HXFLG-OLIVE DBOLT-M8X1.25X25,HXFLG-OLIVE D
-
97518702 BOLT-M8X1.25X20,HXHDFLGBOLT-M8X1.25X20,HXHDFLG
-
107510005 SCR-M6X1.0X40,HX/SOC/CP-Y/DSCR-M6X1.0X40,HX/SOC/CP-Y/D
-
114011732 SWITCH,POLARIS WINCHSWITCH,POLARIS WINCH
-
125334334 SPACER-.277X.375X.330SPACER-.277X.375X.330
-
135250830 SWITCH,POLARIS WINCHSWITCH,POLARIS WINCH
-
142411214 WIREWIRE
