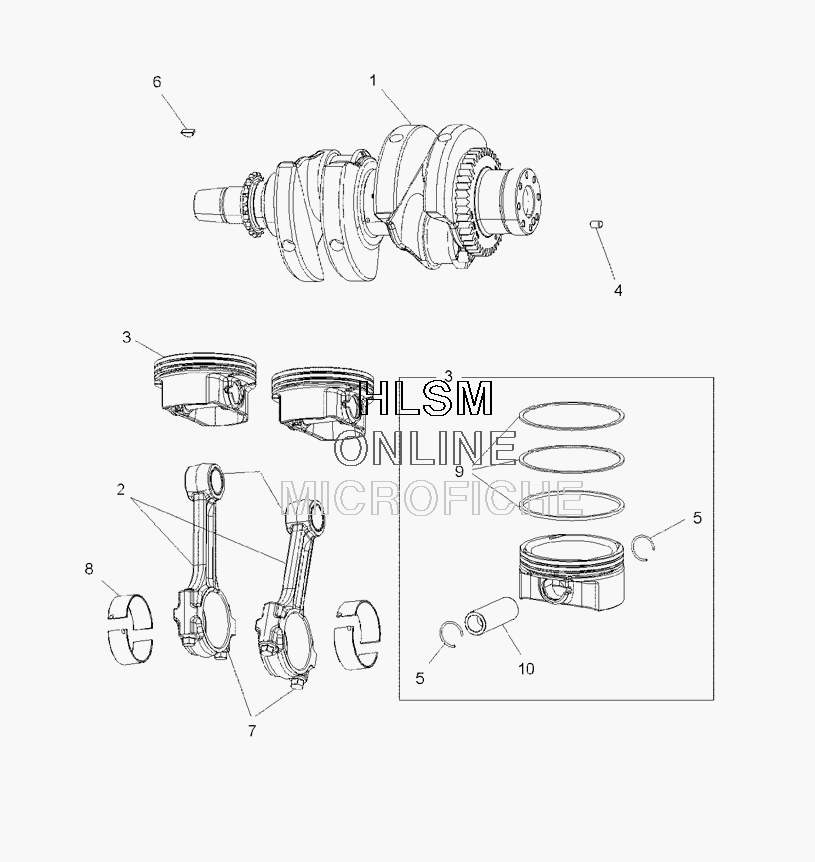

CRANKSHAFT W/ PISTON для Polaris SPORTSMAN XP 850 (A09ZN85AX) (PAINTED GREEN) - 2009 года выпуска
-
№АртикулНазвание
-
12203926 KIT-CRANKSHAFT 71.5MM STEEL (INCL. 4, CRANK, MAIN BEAINGS)KIT-CRANKSHAFT 71.5MM STEEL (INCL. 4, CRANK, MAIN BEAINGS)
-
22203927 KIT-CON ROD (INCL. 8, 11, ROD, CAP)KIT-CON ROD (INCL. 8, 11, ROD, CAP)
-
27556469 KIT-CON RODKIT-CON ROD
-
32203921 KIT-PISTON 87MM (INCL PISTON, PIN, CLIPS, ALL RINGS)KIT-PISTON 87MM (INCL PISTON, PIN, CLIPS, ALL RINGS)
-
45132835 PIN-DOWEL,M6X10PIN-DOWEL,M6X10
-
53021738 CIRCLIP-PISTON PIN,20MMCIRCLIP-PISTON PIN,20MM
-
67721122 KEY,WOODRUFFKEY,WOODRUFF
-
77519021 BOLT-CON ROD M9X1.0BOLT-CON ROD M9X1.0
-
83514645 SLEEVESLEEVE
-
92203922 KIT-PISTON RINGS, 87MM (CONTAINS UPPER, LOWER, OIL CONTROL RING)KIT-PISTON RINGS, 87MM (CONTAINS UPPER, LOWER, OIL CONTROL RING)
-
103021737 PIN-PISTON,20MMPIN-PISTON,20MM
