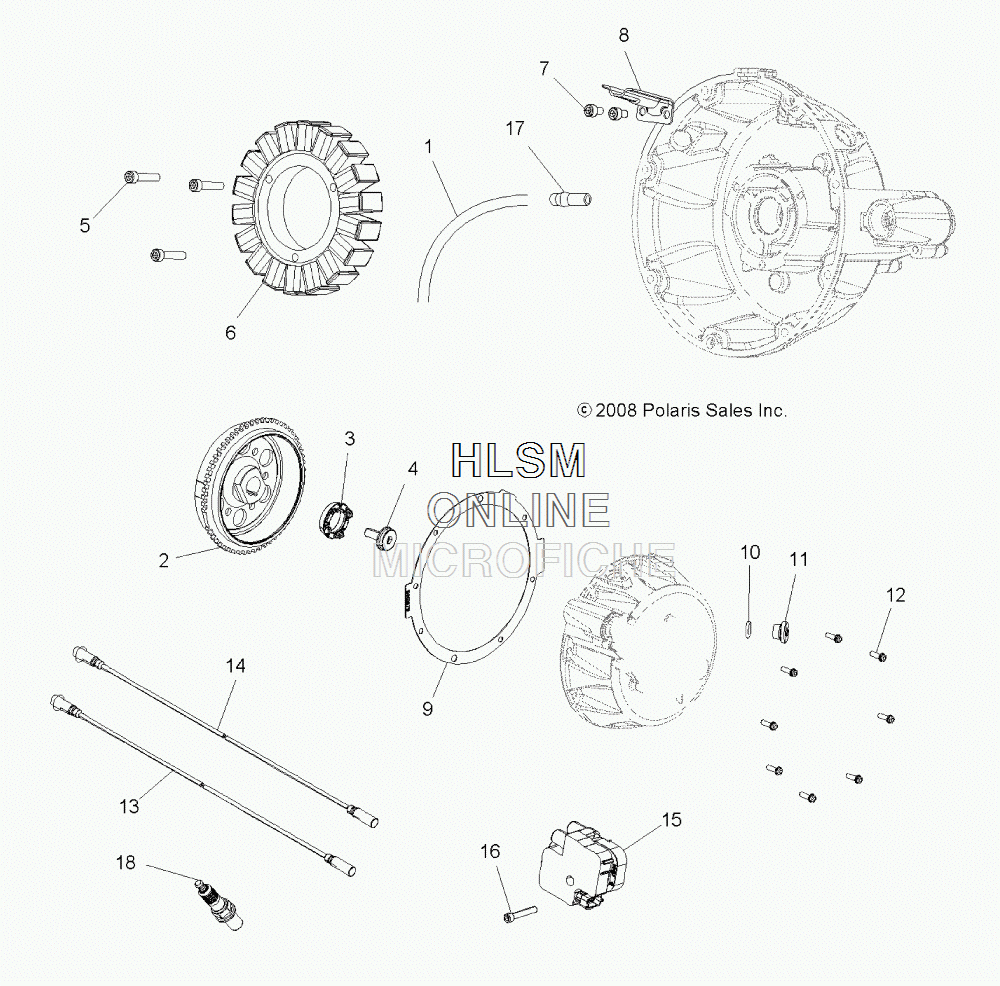

IGNITION SYSTEM для Polaris SPORTSMAN XP EPS 850 (A09ZX85AL) (SUNSET RED) - 2009 года выпуска
-
№АртикулНазвание
-
18360072 TUBING, NYLONTUBING, NYLON
-
24011428 FLYWHEELFLYWHEEL
-
35136307 COUPLER, WATER PUMP, FLYWHEELCOUPLER, WATER PUMP, FLYWHEEL
-
45136389 BOLT, WATER PUMP DRIVE, LEFT HANDBOLT, WATER PUMP DRIVE, LEFT HAND
-
57518544 SCREWSCREW
-
64011427 STATOR W/GROMMETSTATOR W/GROMMET
-
77518765 SCREWSCREW
-
85250018 RETAINER, STATOR WIRERETAINER, STATOR WIRE
-
95813267 GASKET, STATOR COVERGASKET, STATOR COVER
-
105411564 O-RINGO-RING
-
115433820 PLUG, HOLEPLUG, HOLE
-
127518576 SCREWSCREW
-
134012343 WIRE, SPARK PLUG, 356MMWIRE, SPARK PLUG, 356MM
-
144012344 WIRE, SPARK PLUG, 406MMWIRE, SPARK PLUG, 406MM
-
154010425 COIL, EFICOIL, EFI
-
167518922 SCREWSCREW
-
177052145 FITTING, STRAIGHTFITTING, STRAIGHT
-
183022111 PLUG, SPARK (BUILT 1/02/09 AND BEFORE)PLUG, SPARK (BUILT 1/02/09 AND BEFORE)
-
183021732 PLUG, SPARK (BUILT 1/03/09 AND AFTER)PLUG, SPARK (BUILT 1/03/09 AND AFTER)
