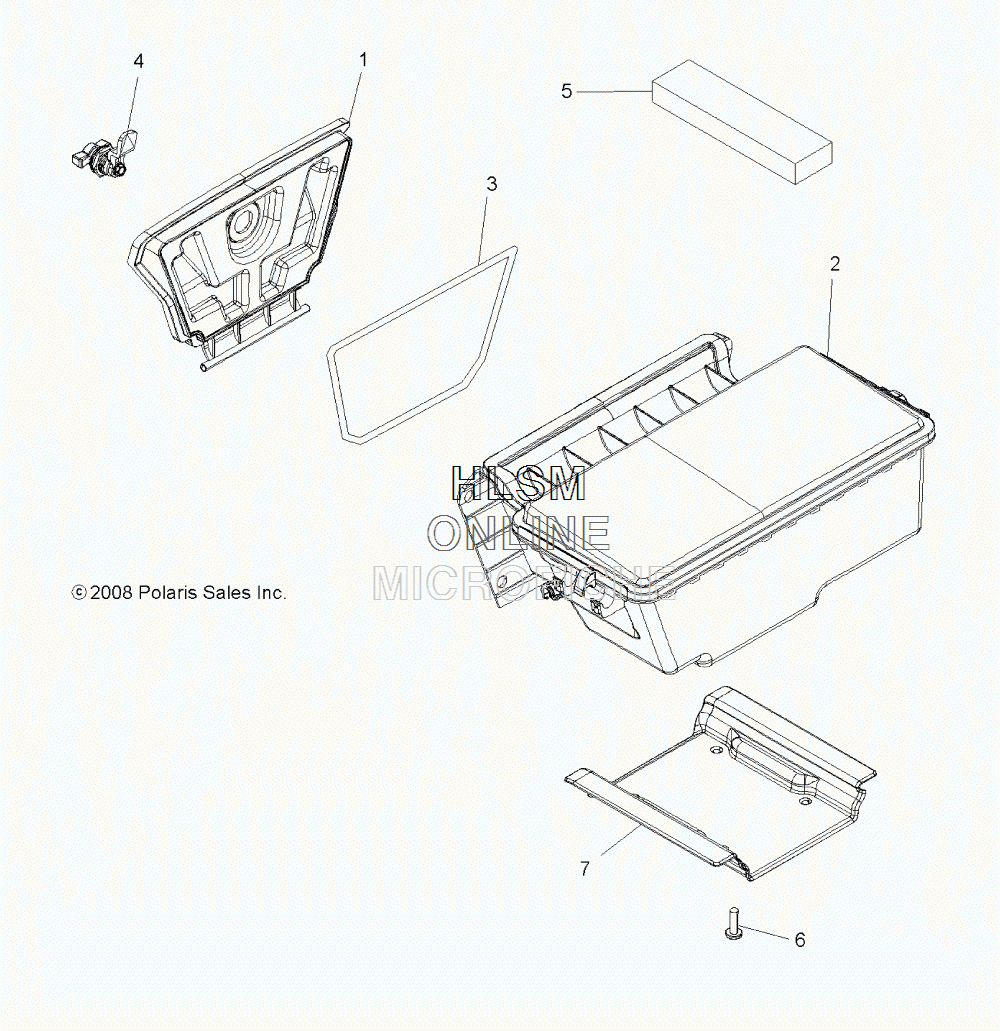

STORAGE BOX - REAR для Polaris SPORTSMAN XP EPS 850 (A09ZX85AQ) (NBU CAMO) - 2009 года выпуска
-
№АртикулНазвание
-
12633431 COVER, STORAGE, REARCOVER, STORAGE, REAR
-
22633432 BOX, STORAGE, LOWER, REARBOX, STORAGE, LOWER, REAR
-
35413444 SEAL, BOX, STORAGE, REARSEAL, BOX, STORAGE, REAR
-
47081425 LATCH, 1/4 TURNLATCH, 1/4 TURN
-
55812138 FOAM, PANEL, LEFT HANDFOAM, PANEL, LEFT HAND
-
67517560 SCREWSCREW
-
75413616 SHIELD, STORAGE BOXSHIELD, STORAGE BOX
