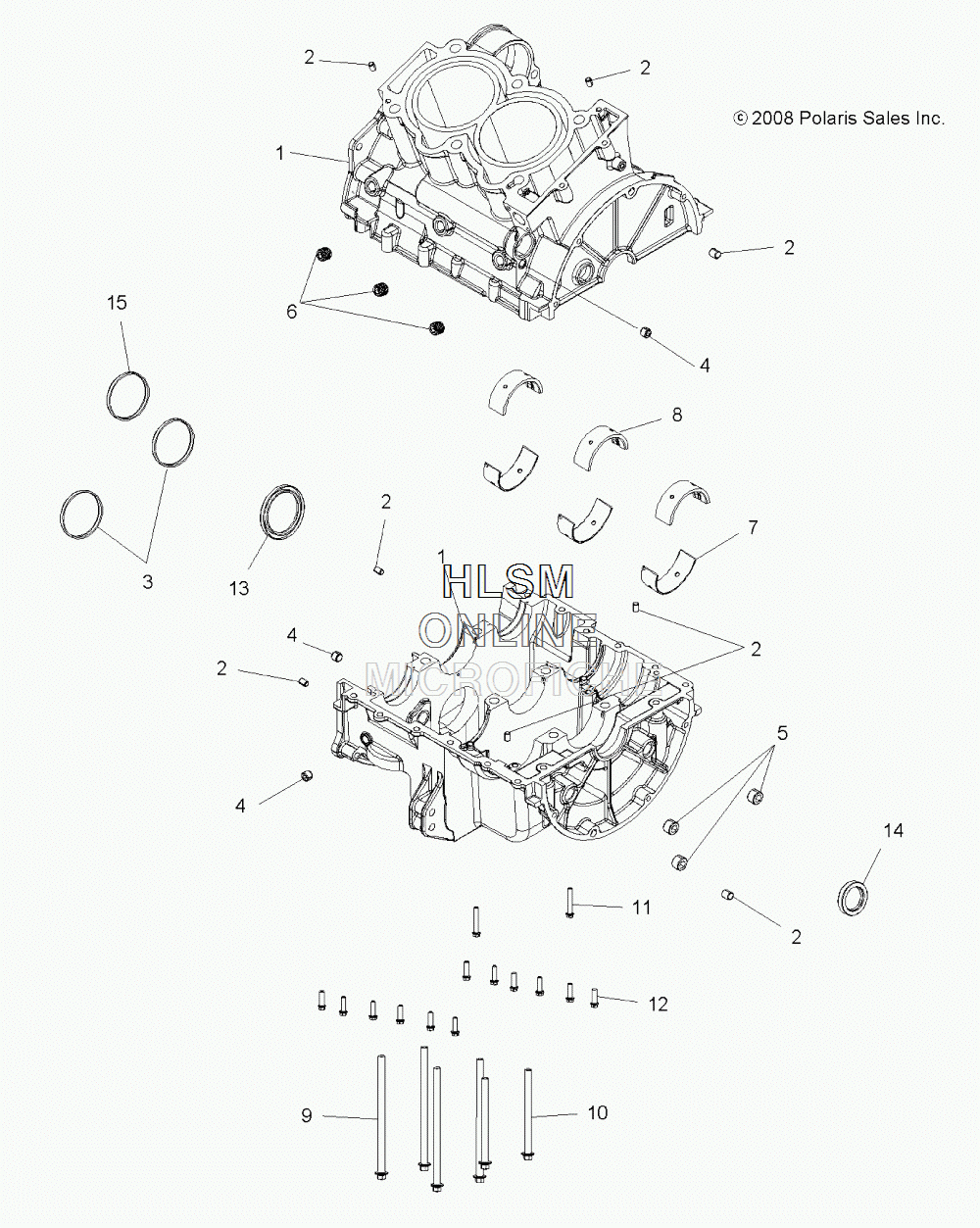

CRANKCASE для Polaris SPORTSMAN XP EPS 850 INTL (A09ZX85FS) (STEALTH BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
12203929 KIT, CRANKCASE (INCL. 2,4-6, 9-12, CASES) (FOR NICASIL ENGINE)KIT, CRANKCASE (INCL. 2,4-6, 9-12, CASES) (FOR NICASIL ENGINE)
-
25132835 PIN, DOWELPIN, DOWEL
-
33610144 SEAL, BALANCE SHAFTSEAL, BALANCE SHAFT
-
47052337 PLUGPLUG
-
57052413 PLUGPLUG
-
67518835 PLUGPLUG
-
73514534 BEARING, MAIN, UPPER, FRONTBEARING, MAIN, UPPER, FRONT
-
83514535 BEARING, MAIN, UPPER, CENTERBEARING, MAIN, UPPER, CENTER
-
97518804 SCREW M9X1.25X160SCREW M9X1.25X160
-
107518805 SCREW M9X1.25X115SCREW M9X1.25X115
-
117518578 SCREW M6X35SCREW M6X35
-
127518576 SCREW M6X20SCREW M6X20
-
133610152 SEAL, CRANKSHAFT 55.7MMSEAL, CRANKSHAFT 55.7MM
-
143610151 SEAL, CRANKSHAFT 32MMSEAL, CRANKSHAFT 32MM
-
153610143 SEAL, BALANCE SHAFTSEAL, BALANCE SHAFT
