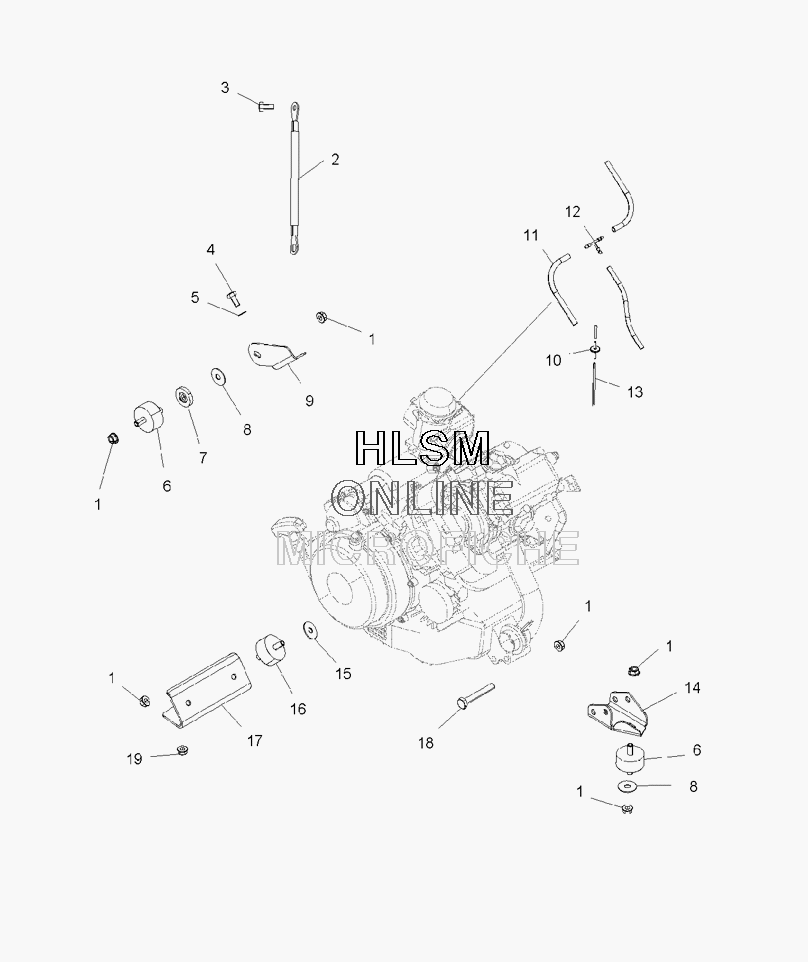

ENGINE - MOUNTING для Polaris TRAIL BOSS 330 (A09CA32AA) - 2009 года выпуска
-
№АртикулНазвание
-
17547108 NUTNUT
-
24010132 CABLE, GND-ENGINECABLE, GND-ENGINE
-
37517386 SCREWSCREW
-
47512315 BOLTBOLT
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
63022077 ISOLATOR-3/8-24M/M, 45DUROISOLATOR-3/8-24M/M, 45DURO
-
75430802 INSULATOR, MOTOR MT.INSULATOR, MOTOR MT.
-
87555823 WASHERWASHER
-
95247344 BRKT-ENGINE MNT TOP, PLATEDBRKT-ENGINE MNT TOP, PLATED
-
107051011 VALVE, CHECKVALVE, CHECK
-
118450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
127052075 FITTING, TEEFITTING, TEE
-
138360009-600 LINE, FUEL, 1/8 ID, 600 CM.LINE, FUEL, 1/8 ID, 600 CM.
-
145247342 MOUNT-LOWER FRONT ENG, PLTDMOUNT-LOWER FRONT ENG, PLTD
-
157555815 WASHER, FLATWASHER, FLAT
-
163022072 ISOLATOR-3/8-24M, 3/8-16M, 60DURISOLATOR-3/8-24M, 3/8-16M, 60DUR
-
171013413-067 MOUNT, ENGINE, REAR, BLACKMOUNT, ENGINE, REAR, BLACK
-
187515417 SCREWSCREW
-
197547089 NUT-3/8-16 FLG LOCK-YNUT-3/8-16 FLG LOCK-Y
