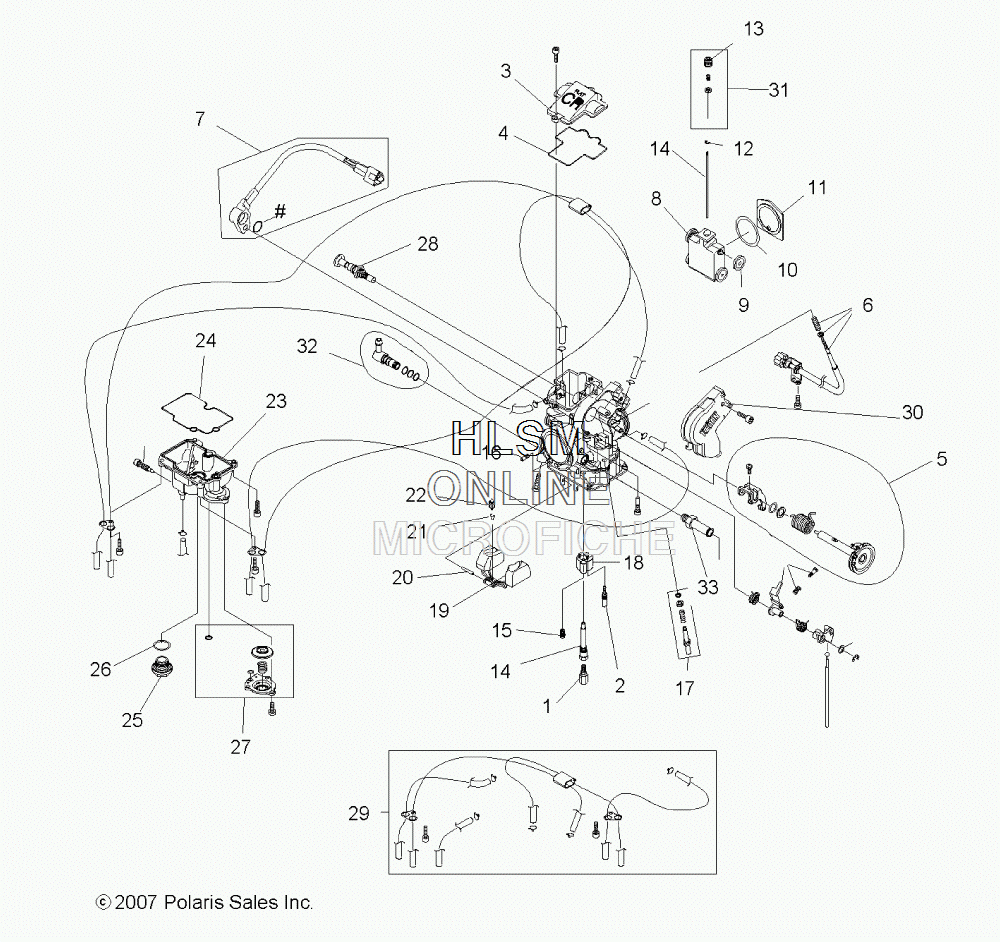

CARBURETOR для Polaris OUTLAW 525 2X4 IRS (A10GP52AA) (INDY RED/WHITE) - 2010 года выпуска
-
№АртикулНазвание
-
1203824 ASM., CARBURETOR, KEIHINASM., CARBURETOR, KEIHIN
-
13050235-120 MAIN JET, KHN 120MAIN JET, KHN 120
-
13050235-122 MAIN JET, KHN 122MAIN JET, KHN 122
-
13050235-125 MAIN JET, KHN 125MAIN JET, KHN 125
-
13050235-128 MAIN JET, KHN 128MAIN JET, KHN 128
-
13050235-130 MAIN JET, KHN 130MAIN JET, KHN 130
-
13050235-132 MAIN JET, KHN 132MAIN JET, KHN 132
-
13050235-135 MAIN JET, KHN 135MAIN JET, KHN 135
-
13050235-138 MAIN JET, KHN 138MAIN JET, KHN 138
-
13050235-140 MAIN JET, KHN 140MAIN JET, KHN 140
-
13050235-142 MAIN JET, KHN 142MAIN JET, KHN 142
-
13050235-145 MAIN JET, KHN 145MAIN JET, KHN 145
-
13050235-148 MAIN JET, KHN 148 (STOCK)MAIN JET, KHN 148 (STOCK)
-
13050235-150 MAIN JET, KHN 150MAIN JET, KHN 150
-
13050235-152 MAIN JET, KHN 152MAIN JET, KHN 152
-
13050235-155 MAIN JET, KHN 155MAIN JET, KHN 155
-
13050235-158 MAIN JET, KHN 158MAIN JET, KHN 158
-
13050235-160 MAIN JET, KHN 160MAIN JET, KHN 160
-
13050235-162 MAIN JET, KHN 162MAIN JET, KHN 162
-
13050235-165 MAIN JET, KHN 165MAIN JET, KHN 165
-
13050235-168 MAIN JET, KHN 168MAIN JET, KHN 168
-
13050235-170 MAIN JET, KHN 170MAIN JET, KHN 170
-
23050219-40 PILOT JET, KHNPILOT JET, KHN
-
23050219-42 PILOT JET, KHNPILOT JET, KHN
-
23050219-45 PILOT JETPILOT JET
-
23050219-48 PILOT JET, KHNPILOT JET, KHN
-
23050219-50 PILOT JET, KHNPILOT JET, KHN
-
33131652 COVER, CARBURETOR TOPCOVER, CARBURETOR TOP
-
43131653 SEAL, CARBURETOR COVERSEAL, CARBURETOR COVER
-
52203567 KIT, THROTTLE SHAFT, FCRKIT, THROTTLE SHAFT, FCR
-
62203526 KIT, IDLE SPEED SCREWKIT, IDLE SPEED SCREW
-
72203527 KIT, THROTTLE POSITION SENSORKIT, THROTTLE POSITION SENSOR
-
83131657 VALVE, THROTTLEVALVE, THROTTLE
-
93131658 ROLLER, THROTTLE VALVEROLLER, THROTTLE VALVE
-
103131659 SEAL, THROTTLE VALVESEAL, THROTTLE VALVE
-
113131660 PLATE, THROTTLE VALVEPLATE, THROTTLE VALVE
-
123131661 CLIP, NEEDLECLIP, NEEDLE
-
133131662 SCREW, NEEDLE SETSCREW, NEEDLE SET
-
142203641 KIT, CARB, NEEDLE JET AND SEAT, 450KIT, CARB, NEEDLE JET AND SEAT, 450
-
153131663 STARTER JET, KHN (#85)STARTER JET, KHN (#85)
-
163131677 SLOW AIR JET, KHN (#100)SLOW AIR JET, KHN (#100)
-
172203522 KIT, PILOT SCREWKIT, PILOT SCREW
-
183131665 PLATE, BUFFERPLATE, BUFFER
-
193131666 FLOAT, CARBURETORFLOAT, CARBURETOR
-
203050232 PIN, FLOATPIN, FLOAT
-
213050229 CLIP, FLOAT VALVECLIP, FLOAT VALVE
-
222203523 KIT, FLOAT NEEDLE AND SEATKIT, FLOAT NEEDLE AND SEAT
-
233131667 BOWL, FLOATBOWL, FLOAT
-
243131668 SEAL, FLOAT BOWLSEAL, FLOAT BOWL
-
253131669 PLUG, FLOAT BOWL DRAINPLUG, FLOAT BOWL DRAIN
-
263050217 O-RING, PLUG SCREWO-RING, PLUG SCREW
-
272203524 KIT, ACCELERATOR PUMP BOWLKIT, ACCELERATOR PUMP BOWL
-
283131670 VALVE, CHOKEVALVE, CHOKE
-
292203525 KIT, BREATHER HOSESKIT, BREATHER HOSES
-
303131671 COVER, THROTTLECOVER, THROTTLE
-
312203530 KIT, NEEDLE SET SCREW, FCRKIT, NEEDLE SET SCREW, FCR
-
322203568 KIT, FUEL INLET FITTINGKIT, FUEL INLET FITTING
-
333131675 FITTING, BREATHER HOSEFITTING, BREATHER HOSE
