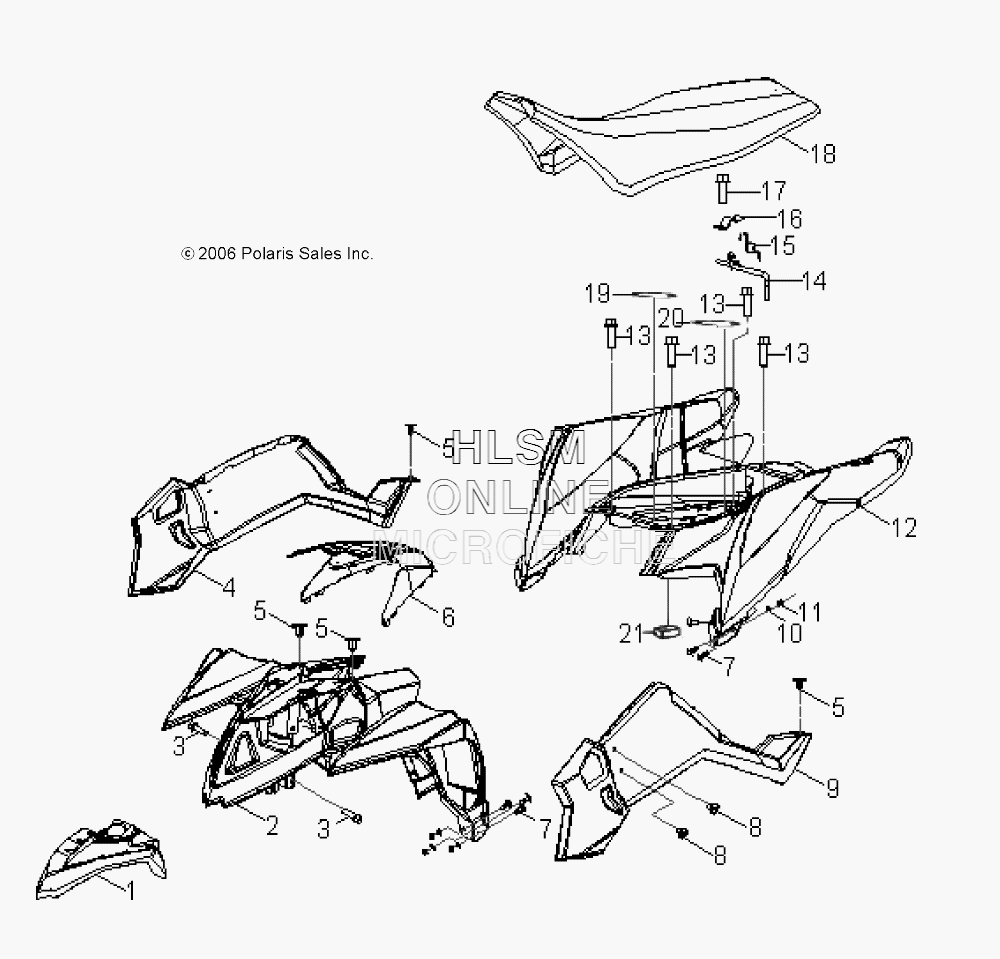

BODY- CAB AND SEAT для Polaris OUTLAW 90 (A10KA09AB) (RED) - 2010 года выпуска
-
№АртикулНазвание
-
10453326-133 COVER, FRONT (WHITE)COVER, FRONT (WHITE)
-
20454219-293 CAB, FRONT (RED) (AB)CAB, FRONT (RED) (AB)
-
30450824 BOLTBOLT
-
40453324-133 PANEL, SIDE (RIGHT) (WHITE)PANEL, SIDE (RIGHT) (WHITE)
-
50451076 RIVET, PLASTICRIVET, PLASTIC
-
60453325-133 COVER, FUEL TANK (WHITE)COVER, FUEL TANK (WHITE)
-
70450622 BOLTBOLT
-
87661855 RIVETRIVET
-
90453323-133 PANEL, SIDE (LEFT) (WHITE)PANEL, SIDE (LEFT) (WHITE)
-
100450710 WASHERWASHER
-
110450741 NUTNUT
-
120454255-293 ASM., CAB, REAR (RED) W/DECAL (AB)ASM., CAB, REAR (RED) W/DECAL (AB)
-
130452215 BOLTBOLT
-
140453688 LATCH, SEATLATCH, SEAT
-
150453689 SPRINGSPRING
-
160453690 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
170451703 SCREWSCREW
-
180453327-070 SEAT, BASE W/FOAM (BLACK) (AB) (INCL. 14,15,16)SEAT, BASE W/FOAM (BLACK) (AB) (INCL. 14,15,16)
-
190453686 O-RINGO-RING
-
200453687 O-RINGO-RING
-
210450346 RUBBER, BATTERYRUBBER, BATTERY
