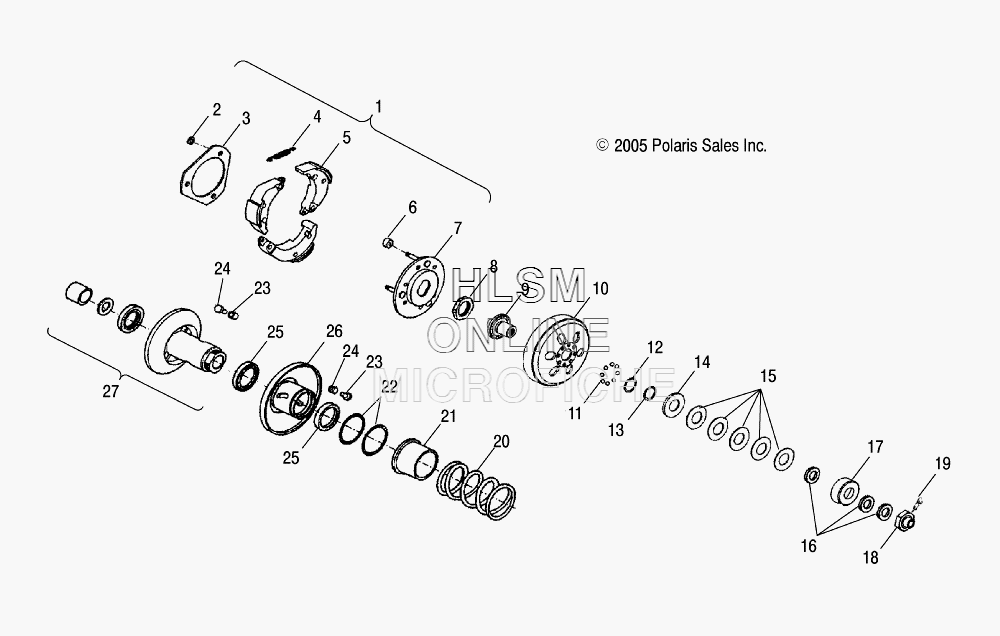

DRIVE TRAIN- SECONDARY CLUTCH для Polaris PHOENIX 200 (A10PB20AB) (RED) - 2010 года выпуска
-
№АртикулНазвание
-
100452477 ASM., DRIVEN CLUTCH (INCL. 1-8,20-27)ASM., DRIVEN CLUTCH (INCL. 1-8,20-27)
-
10452478 ASM., DRIVE CLUTCH (INCL. 2-7)ASM., DRIVE CLUTCH (INCL. 2-7)
-
20450052 CLIP, CIRCLIP, CIR
-
30452480 PLATE, DRIVE, SIDEPLATE, DRIVE, SIDE
-
40452481 SPRING, CLUTCHSPRING, CLUTCH
-
50452482 WEIGHT, CLUTCHWEIGHT, CLUTCH
-
60452483 BUSHING, RUBBERBUSHING, RUBBER
-
70452479 PLATE, DRIVE, INNERPLATE, DRIVE, INNER
-
80452492 NUTNUT
-
90452475 HOLD, CAMHOLD, CAM
-
100452495 CLUTCH, OUTERCLUTCH, OUTER
-
110452498 BALL, STEELBALL, STEEL
-
120452476 WASHERWASHER
-
130452497 CLIP, CIRCLIP, CIR
-
140452499 RETAINER, BALLRETAINER, BALL
-
150452500 WASHER, BELLEVILLEWASHER, BELLEVILLE
-
160452440 WASHER, GEARWASHER, GEAR
-
170452501 GUIDE, CAMGUIDE, CAM
-
180452502 NUT, DRIVENNUT, DRIVEN
-
190452768 SCREW, SETSCREW, SET
-
200452490 SPRING, CLUTCHSPRING, CLUTCH
-
210452491 SEAL, COLLARSEAL, COLLAR
-
220452494 O-RINGO-RING
-
230452488 PIN, GUIDEPIN, GUIDE
-
240452489 ROLLER, GUIDEROLLER, GUIDE
-
250452493 SEAL, DRIVENSEAL, DRIVEN
-
260452487 ASM., SHEAVE, MOVEABLEASM., SHEAVE, MOVEABLE
-
270452484 ASM., SHEAVE, DRIVEN (INCL. BEARINGS AND CLIP)ASM., SHEAVE, DRIVEN (INCL. BEARINGS AND CLIP)
