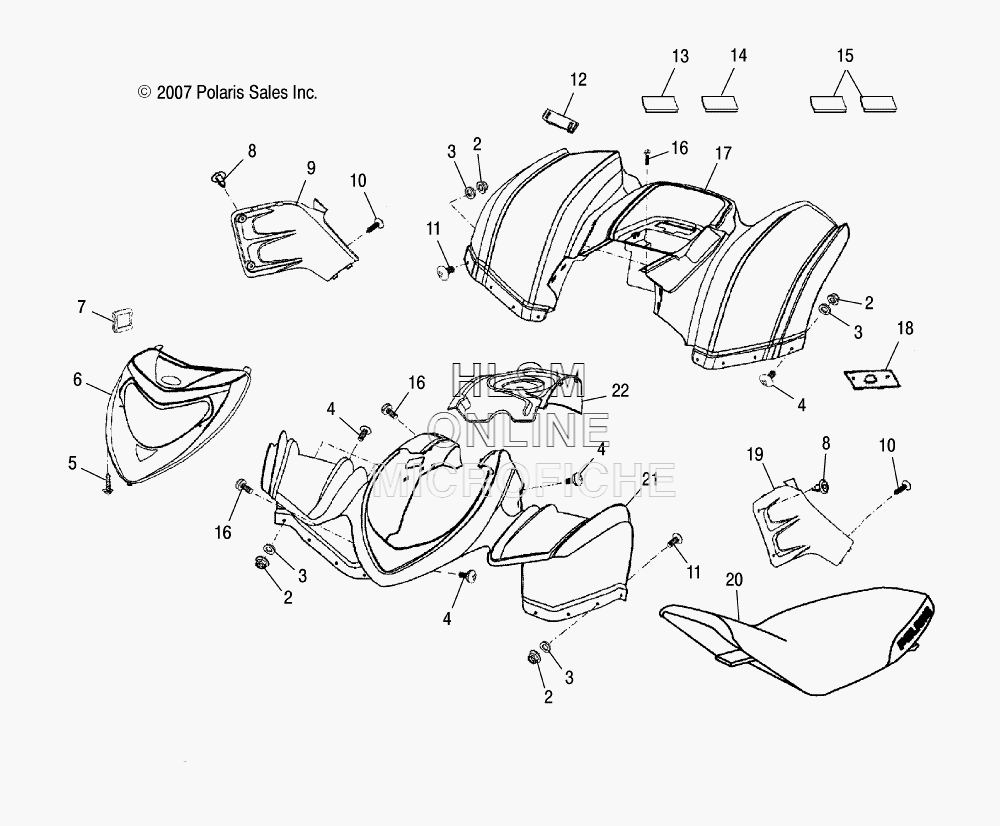

BODY- CAB AND SEAT для Polaris PHOENIX 200 (A10PB20AD) (PINK) - 2010 года выпуска
-
№АртикулНазвание
-
20450741 NUTNUT
-
30450710 WASHER, FLATWASHER, FLAT
-
40450824 BOLTBOLT
-
50450040 SCREWSCREW
-
60454001-133 ASM., COVER, HEADLIGHT (WHITE)ASM., COVER, HEADLIGHT (WHITE)
-
70452662 BOOT, SHIFT, RUBBERBOOT, SHIFT, RUBBER
-
80451076 RIVETRIVET
-
90452653-133 PANEL, SIDE (RIGHT) (WHITE)PANEL, SIDE (RIGHT) (WHITE)
-
100451703 SCREWSCREW
-
110450622 BOLTBOLT
-
120452660 STRAP, BATTERY, RUBBERSTRAP, BATTERY, RUBBER
-
130452778 RUBBER, BATTERYRUBBER, BATTERY
-
140450346 RUBBER, BATTERYRUBBER, BATTERY
-
150452779 RUBBER, BATTERYRUBBER, BATTERY
-
160452215 BOLTBOLT
-
170454251-544 ASM., CAB, REAR, W/DECALS (PINK) (AD)ASM., CAB, REAR, W/DECALS (PINK) (AD)
-
180450345 PAD, PROTECTORPAD, PROTECTOR
-
190452651-133 PANEL, SIDE (LEFT) (WHITE)PANEL, SIDE (LEFT) (WHITE)
-
200454004-133 SEAT (WHITE) (AD)SEAT (WHITE) (AD)
-
210454250-544 ASM., CAB, FRONT, W/DECALS (PINK) (AD)ASM., CAB, FRONT, W/DECALS (PINK) (AD)
-
220453800-133 COVER, FUEL TANK (WHITE)COVER, FUEL TANK (WHITE)
