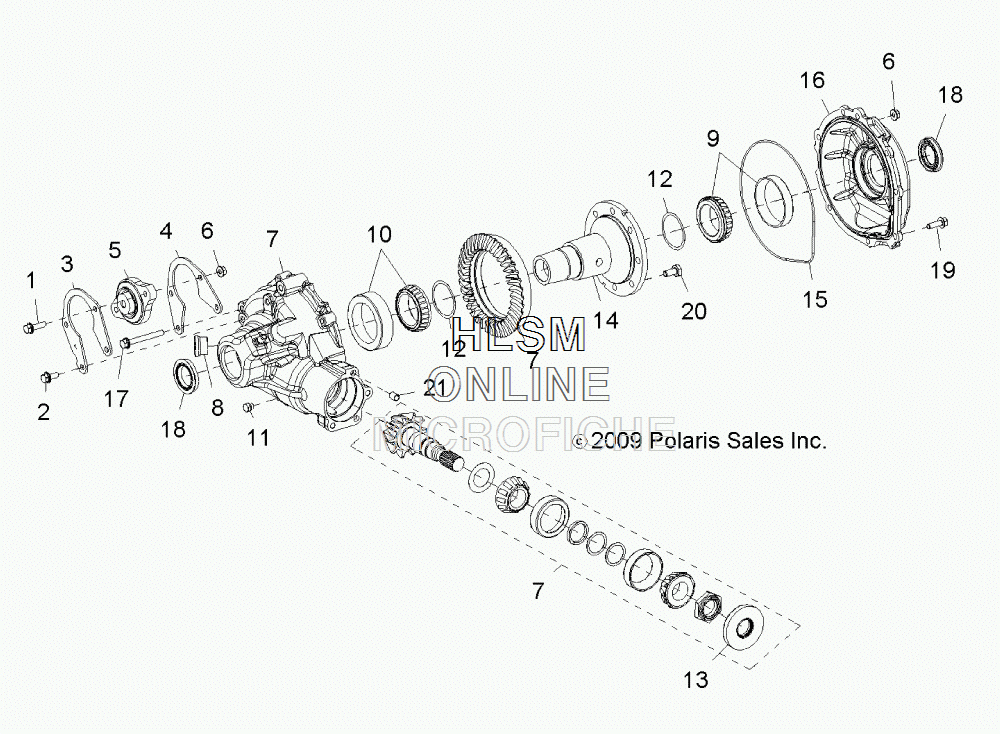

GEARCASE- CARRIER- INTERNAL COMPONENTS для Polaris RZR S 800EFI PURPLE THUNDER [R10VH76AW] - 2010 года выпуска
-
№АртикулНазвание
-
-3235083 ASM., CARRIER (INCL. ALL)ASM., CARRIER (INCL. ALL)
-
13234618 SCREWSCREW
-
23234511 SCREW, FLANGESCREW, FLANGE
-
35250016 BRACKET, DIFFERENTIAL MOUNT, REAR, RIGHT HANDBRACKET, DIFFERENTIAL MOUNT, REAR, RIGHT HAND
-
45250329 BRACKET, DIFFERENTIAL MOUNT, REAR, LEFT HANDBRACKET, DIFFERENTIAL MOUNT, REAR, LEFT HAND
-
51332450 MOUNT, DIFFERENTIAL, REARMOUNT, DIFFERENTIAL, REAR
-
63234500 NUT, FLANGENUT, FLANGE
-
73234860 ASM., DIFFERENTIAL HOUSING, REAR (INCL. 18,25)ASM., DIFFERENTIAL HOUSING, REAR (INCL. 18,25)
-
85133736 PLUG, FILL W/O-RINGPLUG, FILL W/O-RING
-
93514435 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
103514657 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
115133731 PLUG, DRAINPLUG, DRAIN
-
123234504 KIT, SHIMKIT, SHIM
-
133610102 SEAL, OIL PINIONSEAL, OIL PINION
-
143235086 AXLE, SPOOLAXLE, SPOOL
-
155412338 O-RINGO-RING
-
163234861 ASM., COVER, REAR (INCL. 18)ASM., COVER, REAR (INCL. 18)
-
173234501 SCREWSCREW
-
183610159 SEAL, OIL, SHAFTSEAL, OIL, SHAFT
-
197518172 SCREW, FLANGEDSCREW, FLANGED
-
207518173 SCREWSCREW
-
213234503 BUSHING, DOWELBUSHING, DOWEL
