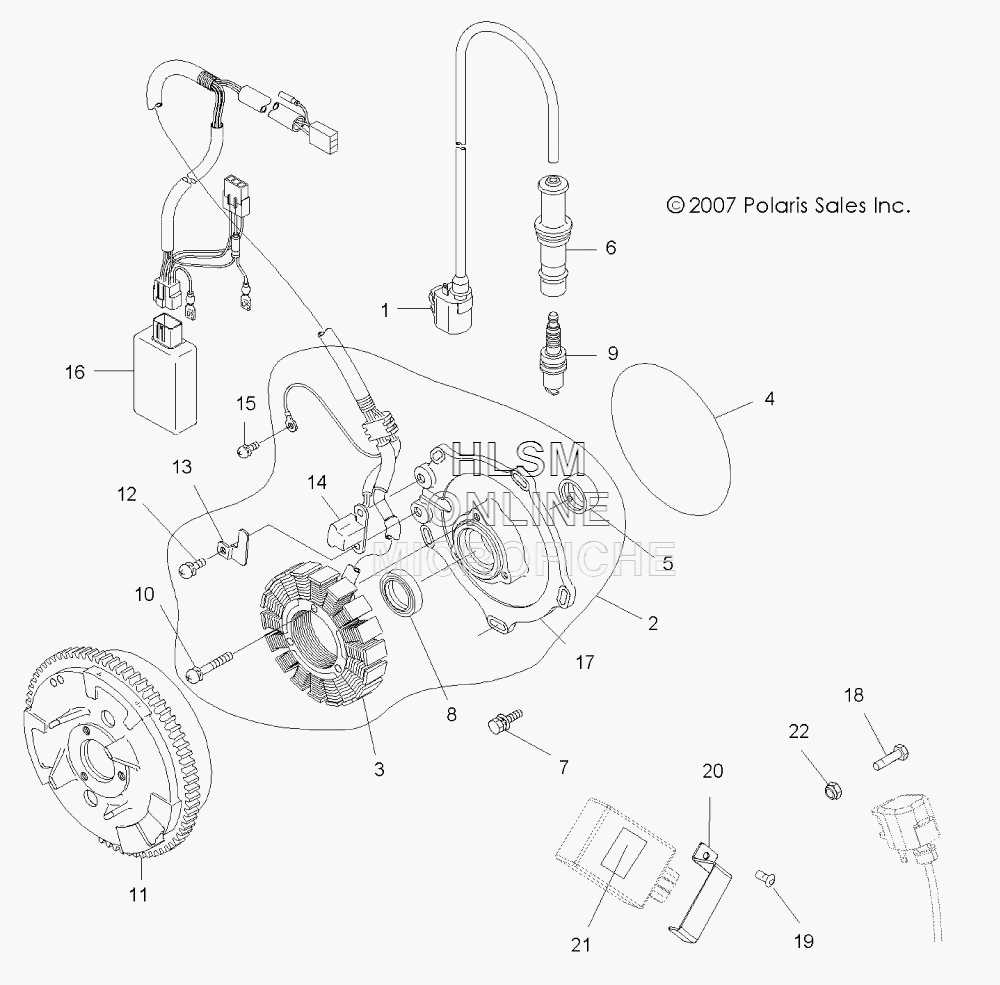

IGNITION SYSTEM для Polaris SCRAMBLER 500 4X4 (A10NG50AA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
13089260 ASM., IGNITION COIL (INCL. 1,6)ASM., IGNITION COIL (INCL. 1,6)
-
23090279 ASM., PLATE (INCL. 3,5,8,10,12-15)ASM., PLATE (INCL. 3,5,8,10,12-15)
-
33089249 STATOR (INCL. 14)STATOR (INCL. 14)
-
43084978 O-RINGO-RING
-
53084972 BEARING, METALBEARING, METAL
-
63084980 CAP, SPARK PLUGCAP, SPARK PLUG
-
73081657 BOLT AND WASHERBOLT AND WASHER
-
83084973 SEAL, OILSEAL, OIL
-
93070172 PLUG, SPARK, BKR6EPLUG, SPARK, BKR6E
-
103089251 SCREW AND WASHERSCREW AND WASHER
-
113090239 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
123084976 SCREW AND WASHERSCREW AND WASHER
-
133089250 BAND, PULSEBAND, PULSE
-
143089254 COIL, PULSERCOIL, PULSER
-
153081256 SCREW AND WASHERSCREW AND WASHER
-
163090281 CDI SYSTEMCDI SYSTEM
-
173089972 ASM., PLATEASM., PLATE
-
187512007 BOLTBOLT
-
197512024 SCREWSCREW
-
205246747 BRACKET, CDIBRACKET, CDI
-
215810317 PADPAD
-
227541925 NUT, NYLOKNUT, NYLOK
