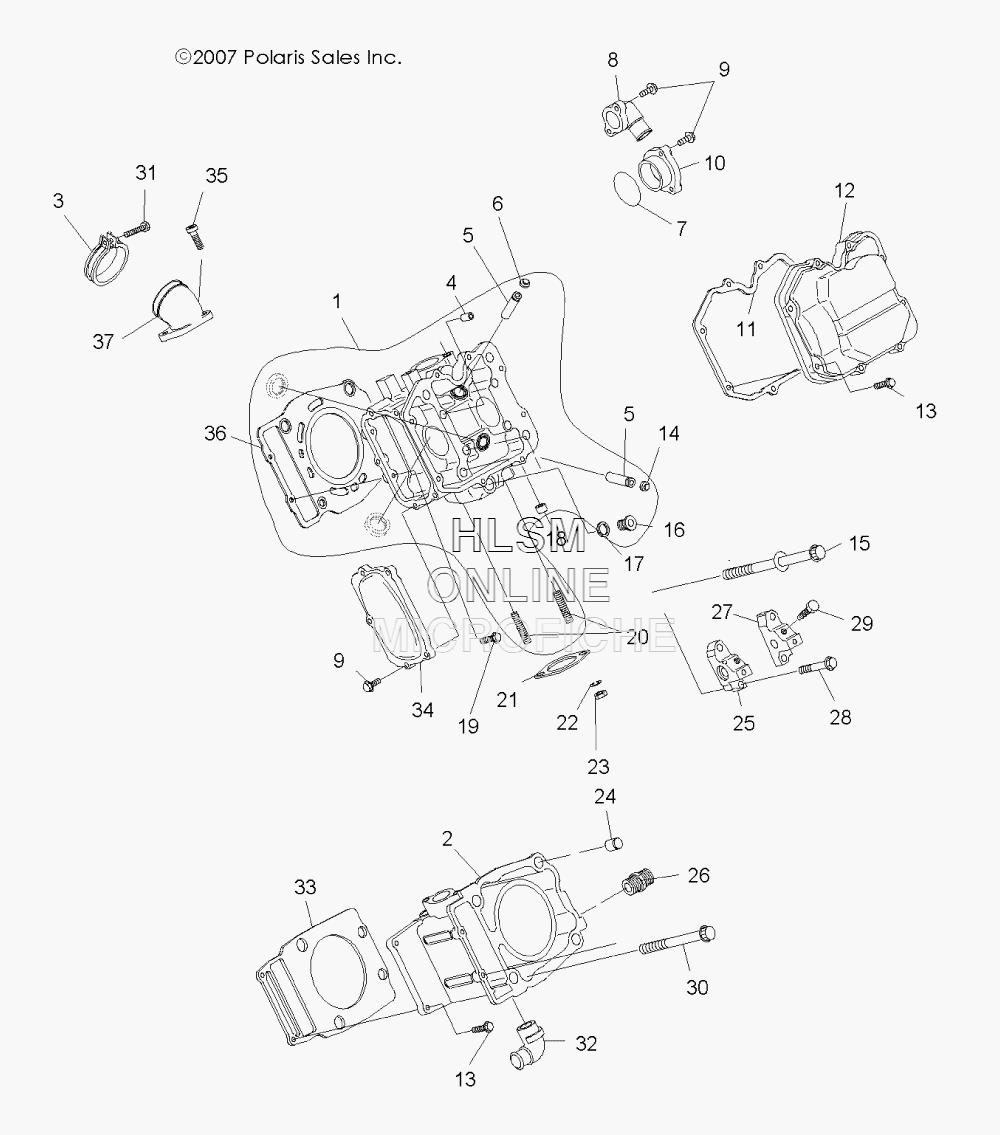

CYLINDER AND HEAD для Polaris SCRAMBLER 500 4X4 INTL (A10NG50FA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
13085527 HEAD, CYLINDER (INCL. 4-6,14,16-18,21)HEAD, CYLINDER (INCL. 4-6,14,16-18,21)
-
23089256 ASM., CYLINDER (INCL. 32)ASM., CYLINDER (INCL. 32)
-
33090209 ASM., BAND ADAPTORASM., BAND ADAPTOR
-
43084857 PIN, STRAIGHTPIN, STRAIGHT
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63090098 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
73084867 O-RINGO-RING
-
83084870 ADAPTERADAPTER
-
93084877 BOLT, FLANGEBOLT, FLANGE
-
103084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
113085074 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
123085073 COVER, ROCKERCOVER, ROCKER
-
133084874 BOLT, FLANGEBOLT, FLANGE
-
143090098 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
153084875 BOLTBOLT
-
163084860 PLUGPLUG
-
173084861 GASKETGASKET
-
183084862 PLUG, BLINDPLUG, BLIND
-
193086781 BOLT, FLANGEBOLT, FLANGE
-
203085075 GASKETGASKET
-
213085326 STUDSTUD
-
223080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
233087199 NUTNUT
-
243087266 PIPE, KNOCKPIPE, KNOCK
-
253084863 SUPPORT, VALVE ROCKER SHAFT (MAG)SUPPORT, VALVE ROCKER SHAFT (MAG)
-
263084849 UNIONUNION
-
273084864 SUPPORT, VALVE ROCKER SHAFT (PTO)SUPPORT, VALVE ROCKER SHAFT (PTO)
-
283084876 BOLTBOLT
-
293085854 BOLT, ROCKER SHAFTBOLT, ROCKER SHAFT
-
303084873 BOLT, FLANGEBOLT, FLANGE
-
313081497 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
323086747 PIPE 2, ELBOWPIPE 2, ELBOW
-
333085370 GASKET, CYLINDERGASKET, CYLINDER
-
343089242 COVER, CAMSHAFTCOVER, CAMSHAFT
-
353081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
363085371 GASKET, HEADGASKET, HEAD
-
373085809 ADAPTERADAPTER
