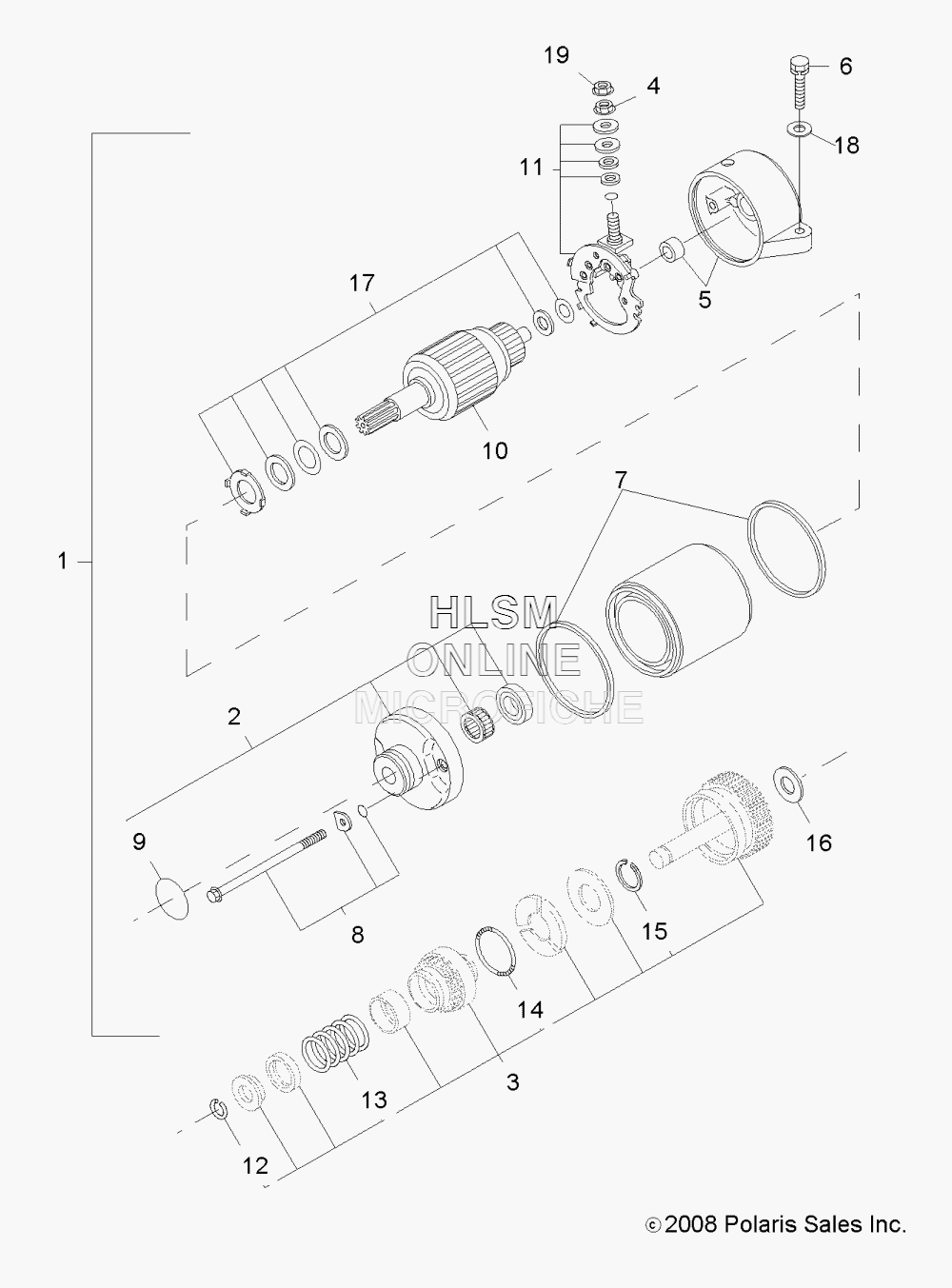

STARTING SYSTEM для Polaris SPORTSMAN 300 4X4 (A10LH27AX) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
13090192 MOTOR, STARTER, COMPLETE (INCL. 2,45,7-11,17)MOTOR, STARTER, COMPLETE (INCL. 2,45,7-11,17)
-
23089911 ASM., BRACKET, FRONT (INCL. 9)ASM., BRACKET, FRONT (INCL. 9)
-
33089863 ASM., GEAR SHAFT (INCL. 12-16)ASM., GEAR SHAFT (INCL. 12-16)
-
43083649 NUT, FLANGENUT, FLANGE
-
53089914 BRACKET, REARBRACKET, REAR
-
63084874 BOLT, FLANGEBOLT, FLANGE
-
73084405 RING, RUBBERRING, RUBBER
-
83084983 ASM., SET BOLTASM., SET BOLT
-
93240114 O-RINGO-RING
-
103089915 ARMATUREARMATURE
-
113088169 CARBON BRUSH SETCARBON BRUSH SET
-
123084409 CLIPCLIP
-
133084410 SPRING, RETURNSPRING, RETURN
-
143084411 SPRING, WEIGHTSPRING, WEIGHT
-
153084412 CLIPCLIP
-
163240134 WASHERWASHER
-
173089912 WASHER SETWASHER SET
-
187558301 WASHER, FLAT (USED WITH STARTER GROUND CABLE)WASHER, FLAT (USED WITH STARTER GROUND CABLE)
-
193083856 NUT, FLANGENUT, FLANGE
