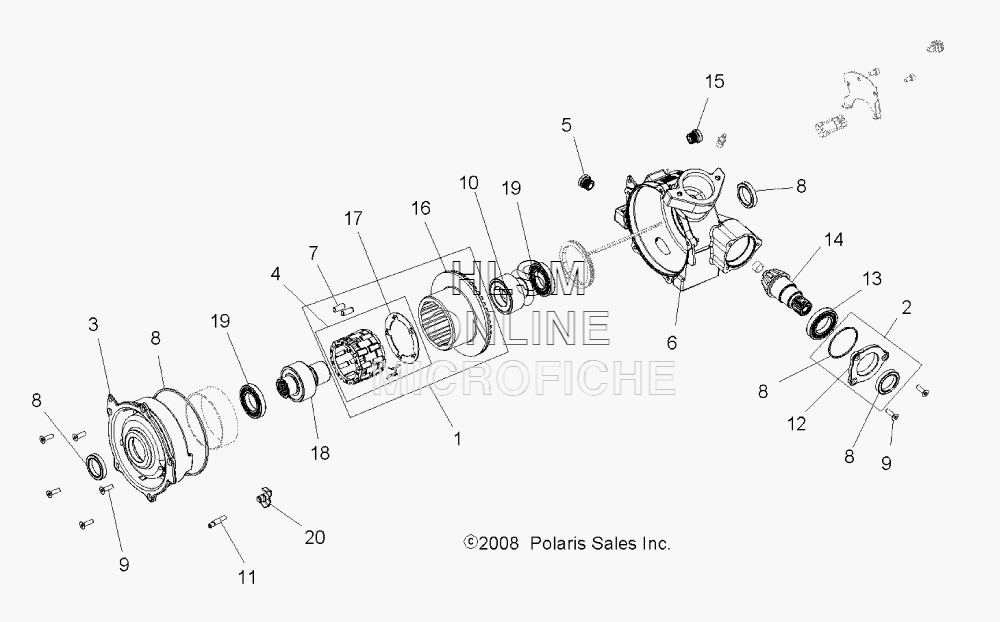

DRIVE TRAIN- FRONT GEARCASE для Polaris SPORTSMAN 400 HO 4X4 (A10LH46AZ) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
41332630 ASM., GEARCASE, FRONT (INCL. ALL}ASM., GEARCASE, FRONT (INCL. ALL}
-
13234384 ASM., CLUTCH (INCL. 4,7,16,17)ASM., CLUTCH (INCL. 4,7,16,17)
-
23234397 ASM., COVER, INPUT (INCL. SEAL, O-RING)ASM., COVER, INPUT (INCL. SEAL, O-RING)
-
33234382 ASM., COVER, OUTPUT (INCL. SEALS, COIL, THRUST PLATE, SET SCREW)ASM., COVER, OUTPUT (INCL. SEALS, COIL, THRUST PLATE, SET SCREW)
-
43234394 ASM., ROLL CAGE (INCL. CAGE, CLIPS, ARMATURE PLATE)ASM., ROLL CAGE (INCL. CAGE, CLIPS, ARMATURE PLATE)
-
53234396 ASM., DRAIN PLUGASM., DRAIN PLUG
-
63234613 ASM., GEARCASE (RIGHT) (INCL. SEALS, VENT, PLUGS, BEARING)ASM., GEARCASE (RIGHT) (INCL. SEALS, VENT, PLUGS, BEARING)
-
73234393 KIT, ROLLER (INCL. COMPLETE ROLLER SET)KIT, ROLLER (INCL. COMPLETE ROLLER SET)
-
83234386 KIT, SEAL REPAIR (INCL. SEALS, O-RINGS)KIT, SEAL REPAIR (INCL. SEALS, O-RINGS)
-
93234385 KIT, BOLT (INCL. ALL BOLTS)KIT, BOLT (INCL. ALL BOLTS)
-
103234530 HUB, OUTPUT, FEMALEHUB, OUTPUT, FEMALE
-
113234388 SET, SCREWSET, SCREW
-
123234401 COVER, INPUTCOVER, INPUT
-
133234390 BEARINGBEARING
-
143234399 GEAR, PINION, 12TGEAR, PINION, 12T
-
153234398 PLUG, FILLPLUG, FILL
-
163234392 GEAR, RING/CLUTCH HOUSING, 44TGEAR, RING/CLUTCH HOUSING, 44T
-
173234387 PLATE, ARMATUREPLATE, ARMATURE
-
183234531 HUB, OUTPUT, MALEHUB, OUTPUT, MALE
-
193234400 BEARINGBEARING
-
202203732 BUTTON, THRUST (MUST ALSO ORDER 2203733)BUTTON, THRUST (MUST ALSO ORDER 2203733)
-
202203733 BUTTON, THRUST, DC (MUST ALSO ORDER 2203732)BUTTON, THRUST, DC (MUST ALSO ORDER 2203732)
