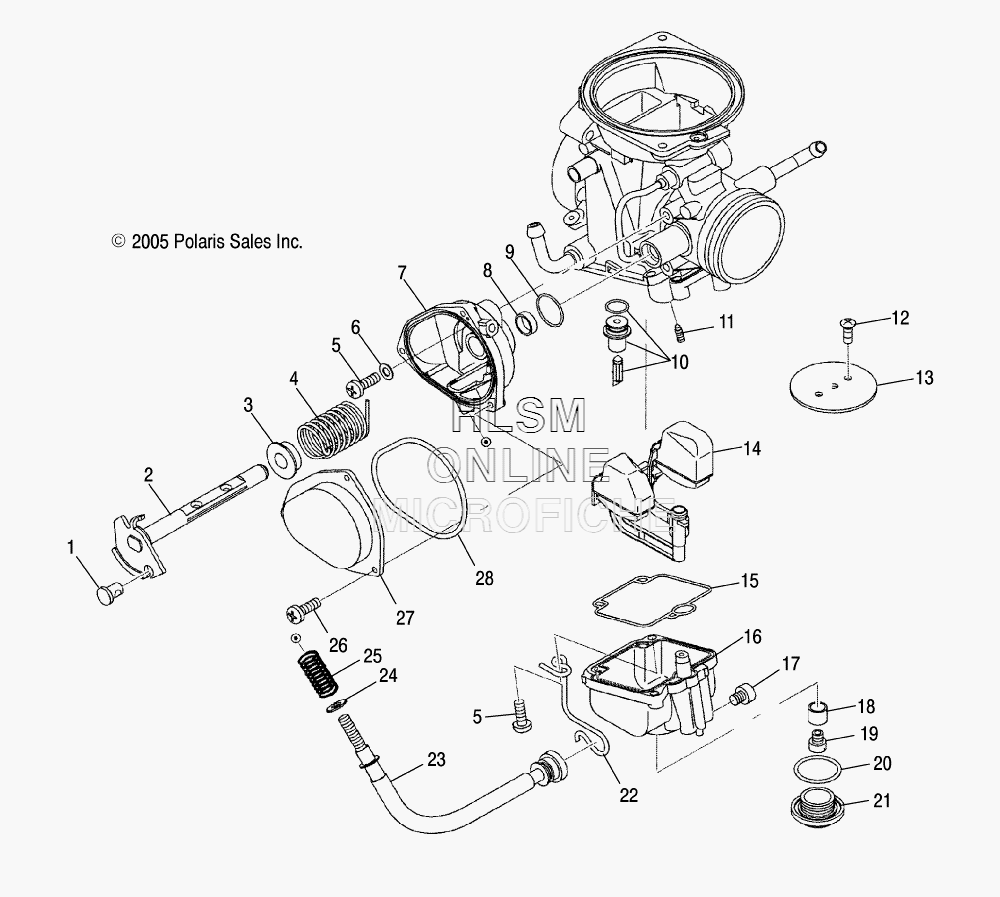

CARBURETOR- LOWER для Polaris SPORTSMAN 500 HO INTL (A10MH50FX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
13130543 GUIDE, CABLEGUIDE, CABLE
-
23130931 ASM., SHAFT, THROTTLEASM., SHAFT, THROTTLE
-
33130932 RINGRING
-
43130927 SPRINGSPRING
-
53130933 SCREWSCREW
-
63130926 WASHERWASHER
-
73130925 CASECASE
-
83130515 SEALSEAL
-
93130928 O-RINGO-RING
-
103131359 VALVE, NEEDLE, 1.5VALVE, NEEDLE, 1.5
-
113130624 JET, PILOT, #40JET, PILOT, #40
-
123131475 SCREWSCREW
-
133130907 VALVE, THROTTLE, 120VALVE, THROTTLE, 120
-
143130921 ASM., FLOATASM., FLOAT
-
153130917 SEALSEAL
-
163130923 ASM., BODY, FLOATASM., BODY, FLOAT
-
173130935 SCREWSCREW
-
183130919 RINGRING
-
193130571 JET, MAIN, #155JET, MAIN, #155
-
203130239 O-RINGO-RING
-
213130321 BOLT, BANJOBOLT, BANJO
-
223131242 CLIPCLIP
-
233131295 ASM., ADJUSTER, CABLEASM., ADJUSTER, CABLE
-
243131296 WASHERWASHER
-
253130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
263130924 SCREWSCREW
-
273130930 COVERCOVER
-
283090008 O-RINGO-RING
