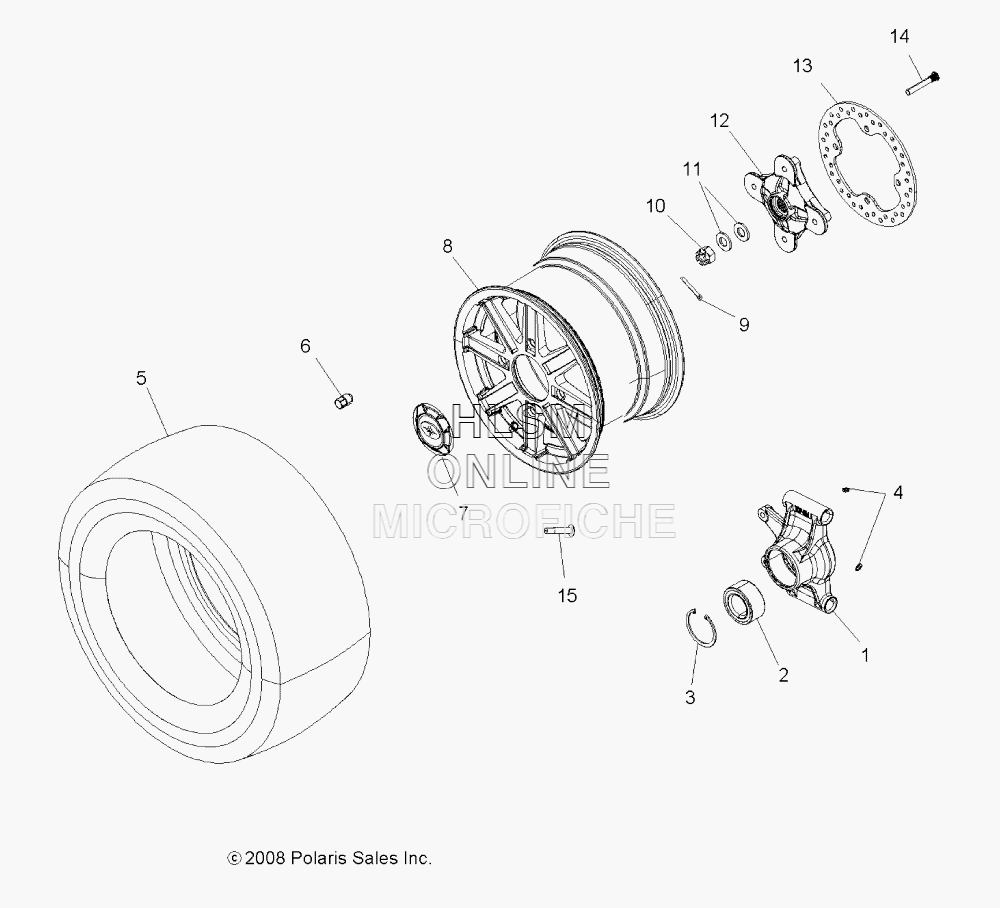

WHEELS- REAR AND HUB для Polaris SPORTSMAN EPS 550 INTL (A10ZX55FX) (SAGEBRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
15136689 CARRIER, BEARING (LEFT)CARRIER, BEARING (LEFT)
-
15136690 CARRIER, BEARING (RIGHT)CARRIER, BEARING (RIGHT)
-
23514627 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
37710440 RING, RETAININGRING, RETAINING
-
47080424 FITTING, LUBRICATINGFITTING, LUBRICATING
-
55413686 TIRE, REAR, 26X10-14, ECON, E-MARKTIRE, REAR, 26X10-14, ECON, E-MARK
-
67547361 NUT, WHEEL, REARNUT, WHEEL, REAR
-
75438120 COVER, HUBCOVER, HUB
-
81521485 RIM, REAR, CASTRIM, REAR, CAST
-
97661404 PIN, COTTERPIN, COTTER
-
107547406 NUT, CASTLENUT, CASTLE
-
117555796 WASHER, CONEWASHER, CONE
-
125136946 HUB, WHEELHUB, WHEEL
-
135250205 DISC, BRAKEDISC, BRAKE
-
147518671 STUD, WHEELSTUD, WHEEL
-
151525017 VALVE, RIMVALVE, RIM
