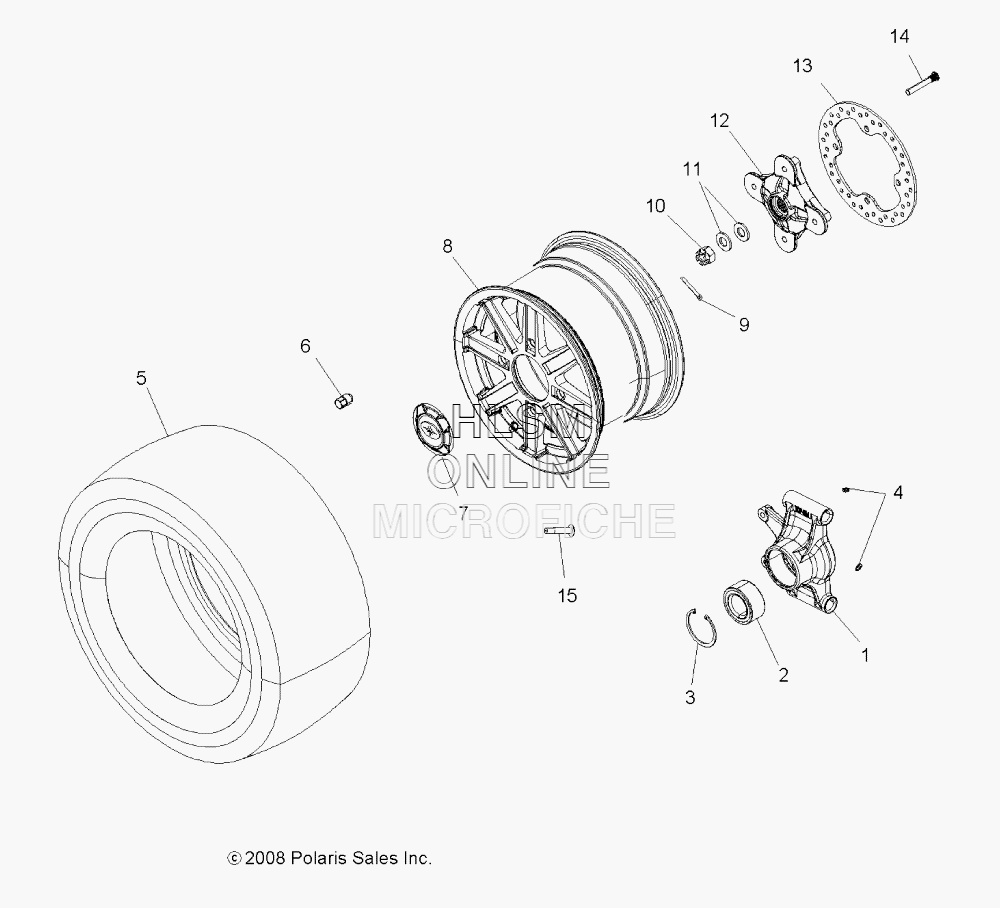

WHEELS- REAR AND HUB для Polaris SPORTSMAN XP EPS 850 (A10ZX85AK) (CRIMSON RED) - 2010 года выпуска
-
№АртикулНазвание
-
15136689 CARRIER, BEARING (LEFT)CARRIER, BEARING (LEFT)
-
15136690 CARRIER, BEARING (RIGHT)CARRIER, BEARING (RIGHT)
-
23514627 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
37710440 RING, RETAININGRING, RETAINING
-
47080424 FITTING, LUBRICATINGFITTING, LUBRICATING
-
55413505 TIRE, REAR, 26X10-14, ECONTIRE, REAR, 26X10-14, ECON
-
67547361 NUT, WHEEL, REARNUT, WHEEL, REAR
-
75438120 COVER, HUBCOVER, HUB
-
81521487 RIM, REAR, CAST (BLACK) (AK)RIM, REAR, CAST (BLACK) (AK)
-
97661404 PIN, COTTERPIN, COTTER
-
107547406 NUT, CASTLENUT, CASTLE
-
117555796 WASHER, CONEWASHER, CONE
-
125136946 HUB, WHEELHUB, WHEEL
-
135250205 DISC, BRAKEDISC, BRAKE
-
147518671 STUD, WHEELSTUD, WHEEL
-
151525017 VALVE, RIMVALVE, RIM
