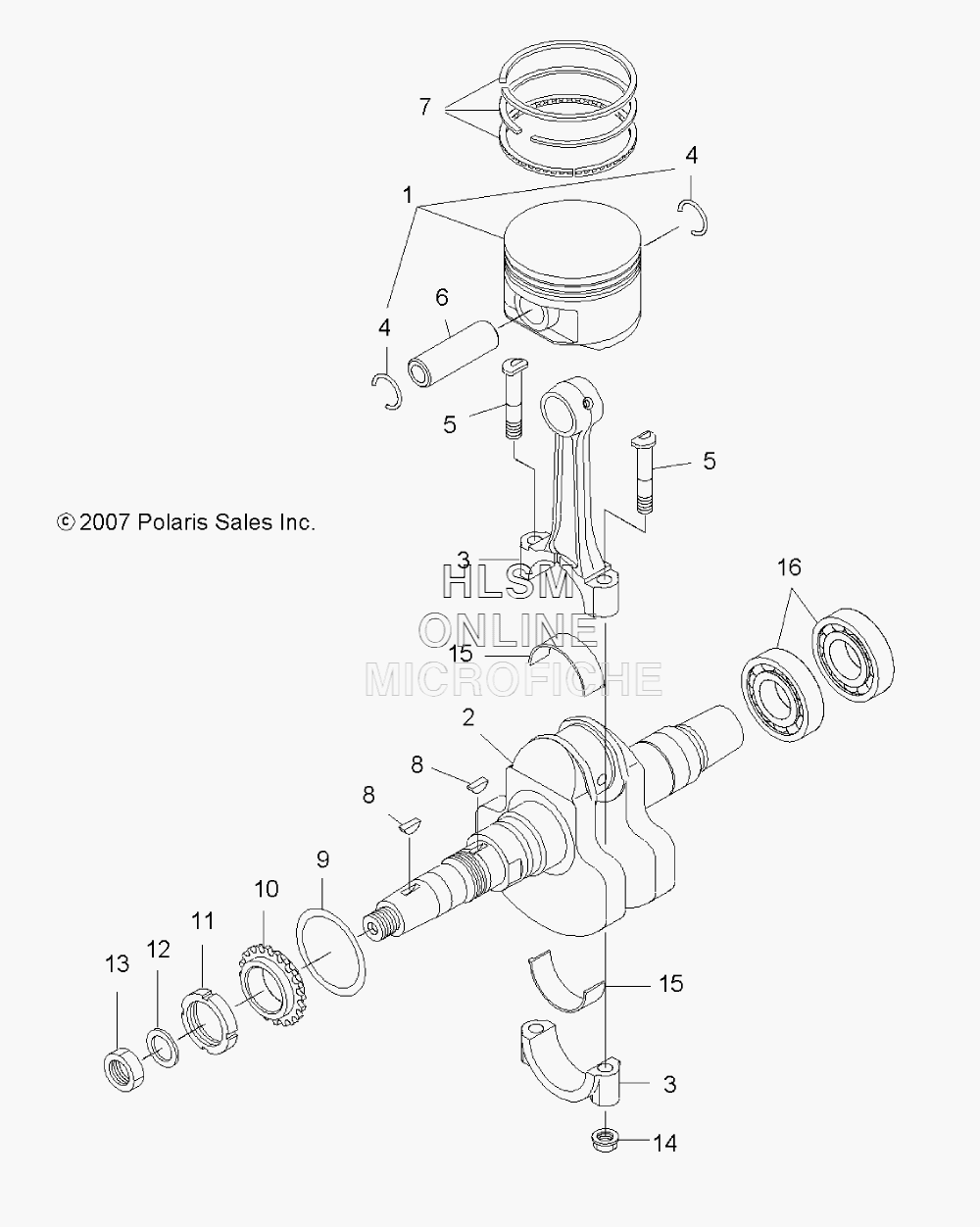

CRANKSHAFT AND PISTON для Polaris TRAIL BLAZER 330 (A10NA32AA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
13090235 SET, PISTON, STANDARD (INCL. 4)SET, PISTON, STANDARD (INCL. 4)
-
13090236 SET, PISTON, .25 O/S (INCL. 4)SET, PISTON, .25 O/S (INCL. 4)
-
13090237 SET, PISTON, .50 O/S (INCL. 4)SET, PISTON, .50 O/S (INCL. 4)
-
23087051 ASM., CRANKSHAFT (INCL. 16)ASM., CRANKSHAFT (INCL. 16)
-
33087239 ASM., CONNECTING ROD (INCL. 5,14)ASM., CONNECTING ROD (INCL. 5,14)
-
43084167 CLIP, PISTON PINCLIP, PISTON PIN
-
53087240 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
63089821 PIN, PISTONPIN, PISTON
-
73087244 SET, PISTON, RING, STANDARD (INCL. TOP, MID, BOTTOM RINGS)SET, PISTON, RING, STANDARD (INCL. TOP, MID, BOTTOM RINGS)
-
73087245 SET, PISTON, RING, .010 INCH/.25MM O/S (INCL. TOP, MID, BOTTOM RINGS)SET, PISTON, RING, .010 INCH/.25MM O/S (INCL. TOP, MID, BOTTOM RINGS)
-
73087246 SET, PISTON, RING, .020 INCH/.50MM O/S (INCL. TOP, MID, BOTTOM RINGS)SET, PISTON, RING, .020 INCH/.50MM O/S (INCL. TOP, MID, BOTTOM RINGS)
-
83240168 KEY, WOODRUFFKEY, WOODRUFF
-
93086434 SPACER, .4SPACER, .4
-
93086435 SPACER, .6SPACER, .6
-
93086436 SPACER, .8SPACER, .8
-
93086437 SPACER, 1.0SPACER, 1.0
-
103086492 SPROCKET 1SPROCKET 1
-
113085528 NUT, SLITNUT, SLIT
-
123086767 WASHERWASHER
-
133083905 NUT, LOCKNUT, LOCK
-
143086426 NUTNUT
-
153086427 BEARING, STANDARDBEARING, STANDARD
-
153086798 BEARING, 0.05 O/SBEARING, 0.05 O/S
-
153086799 BEARING, 0.25 O/SBEARING, 0.25 O/S
-
163085815 BEARING, BALLBEARING, BALL
