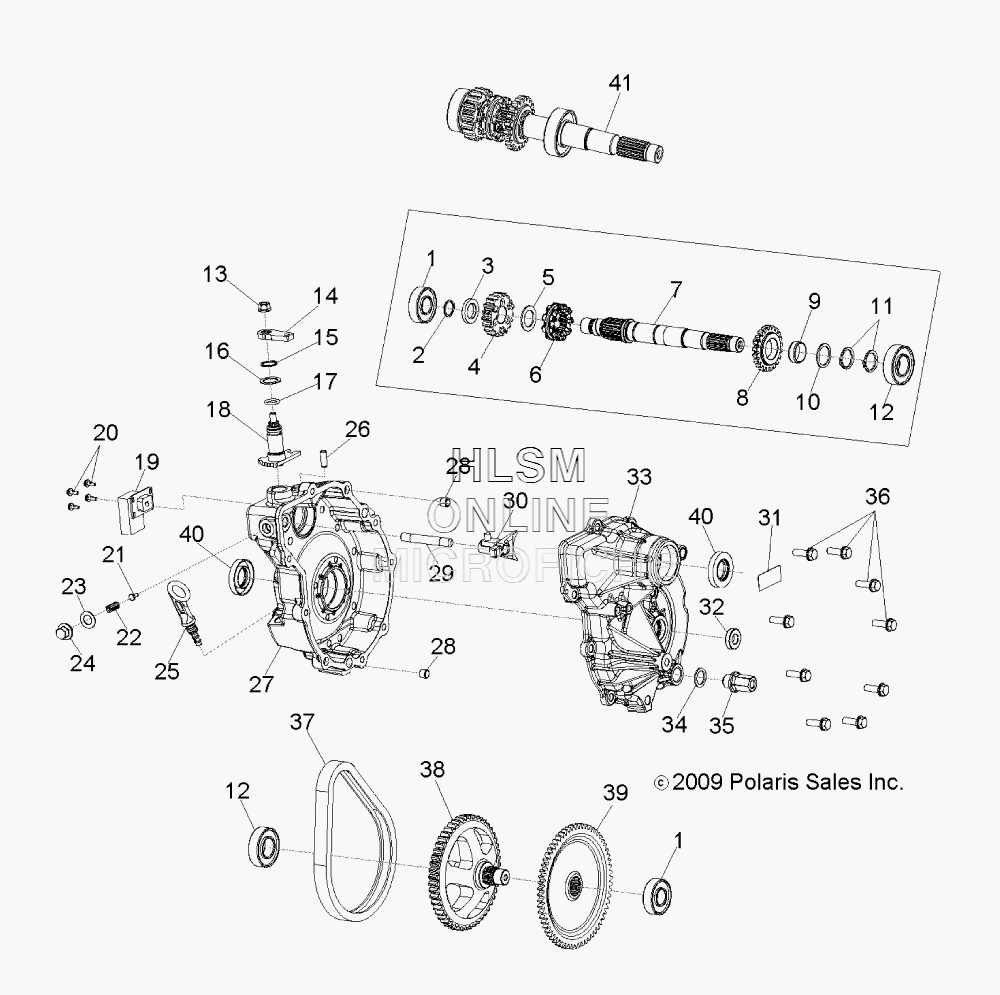

DRIVE TRAIN- MAIN GEARCASE для Polaris TRAIL BOSS 330 INTL (A10EA32FA) (INDY RED) - 2010 года выпуска
-
№АртикулНазвание
-
151332730 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
13233018 BEARING, BALLBEARING, BALL
-
23233177 RING, RETAININGRING, RETAINING
-
33233673 WASHER, THRUSTWASHER, THRUST
-
43233674 SPROCKET, 19TSPROCKET, 19T
-
53233010 WASHERWASHER
-
63234237 ENGAGEMENT DOG, HIGH/REVENGAGEMENT DOG, HIGH/REV
-
73234940 SHAFT, INPUTSHAFT, INPUT
-
83234941 GEAR, 21TGEAR, 21T
-
93233103 BEARINGBEARING
-
103233105 WASHERWASHER
-
113233106 RING, SNAPRING, SNAP
-
123233019 BEARINGBEARING
-
133233961 NUT, LOCKNUT, LOCK
-
143234148 BELLCRANKBELLCRANK
-
153233045 RING, RETAININGRING, RETAINING
-
163233040 WASHERWASHER
-
173233548 O-RINGO-RING
-
183233679 SHIFT, SHAFTSHIFT, SHAFT
-
193234002 SWITCH, GEAR INDICATIONSWITCH, GEAR INDICATION
-
203233749 SCREWSCREW
-
213233680 BULLET, SHIFTINGBULLET, SHIFTING
-
223233681 SPRING, COMPRESSIONSPRING, COMPRESSION
-
233233872 WASHERWASHER
-
243233682 PLUG, DETENTPLUG, DETENT
-
253233478 DIPSTICKDIPSTICK
-
263233524 VENT, TUBEVENT, TUBE
-
273234049 GEARCASE (RIGHT)GEARCASE (RIGHT)
-
283233529 PIPE, KNOCKPIPE, KNOCK
-
293233684 SHAFT, SHIFTSHAFT, SHIFT
-
303233685 FORK, SHIFTFORK, SHIFT
-
313233636 DECAL, SWITCHDECAL, SWITCH
-
323233527 BUSHING, PIVOTBUSHING, PIVOT
-
333234048 GEARCASE (LEFT)GEARCASE (LEFT)
-
343233035 WASHERWASHER
-
353233687 PLUGPLUG
-
363233252 SCREWSCREW
-
373233111 CHAIN, SILENTCHAIN, SILENT
-
383234266 CDS, 2X4 OUTPUTCDS, 2X4 OUTPUT
-
393233690 GEAR, 64TGEAR, 64T
-
403233788 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
413234942 ASM., SHAFT, OUTPUTASM., SHAFT, OUTPUT
