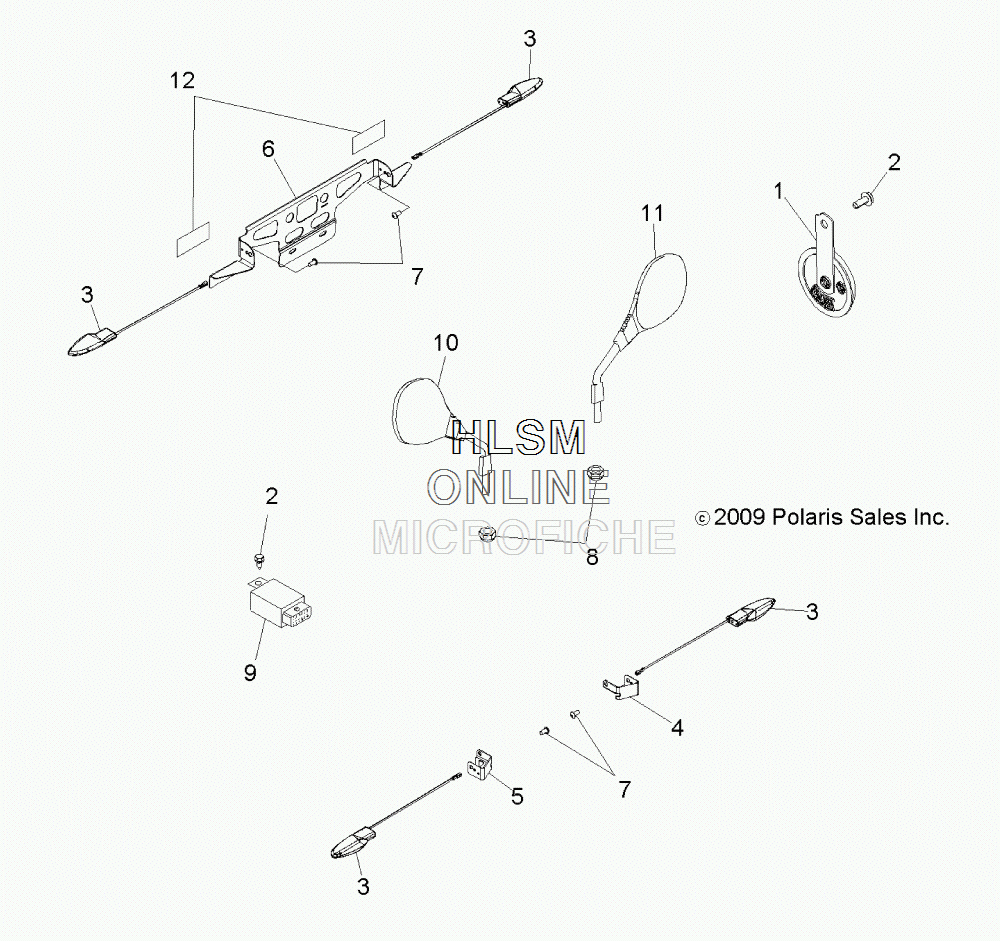

MIRRORS AND TURN SIGNALS для Polaris SCRAMBLER 500 4X4 INTL (A11NG50FA) - 2011 года выпуска
-
№АртикулНазвание
-
14011579 HORNHORN
-
27517386 SCREWSCREW
-
32411114-463 SIGNAL, TURN (BLACK)SIGNAL, TURN (BLACK)
-
45253908-067 MOUNT, TURN SIGNAL (LEFT) (BLACK)MOUNT, TURN SIGNAL (LEFT) (BLACK)
-
55253909-067 MOUNT, TURN SIGNAL (RIGHT) (BLACK)MOUNT, TURN SIGNAL (RIGHT) (BLACK)
-
65253193-067 BRACKET, LICENSE PLATE (BLACK)BRACKET, LICENSE PLATE (BLACK)
-
77518430 SCREWSCREW
-
87546804 NUTNUT
-
94013043 MODULE, FLASHER, LEDMODULE, FLASHER, LED
-
102633315 ASM., MIRROR, HANDLEBAR (RIGHT)ASM., MIRROR, HANDLEBAR (RIGHT)
-
112633314 ASM., MIRROR, HANDLEBAR (LEFT)ASM., MIRROR, HANDLEBAR (LEFT)
-
122633065 ASM., REFLECTOR (RED)ASM., REFLECTOR (RED)
