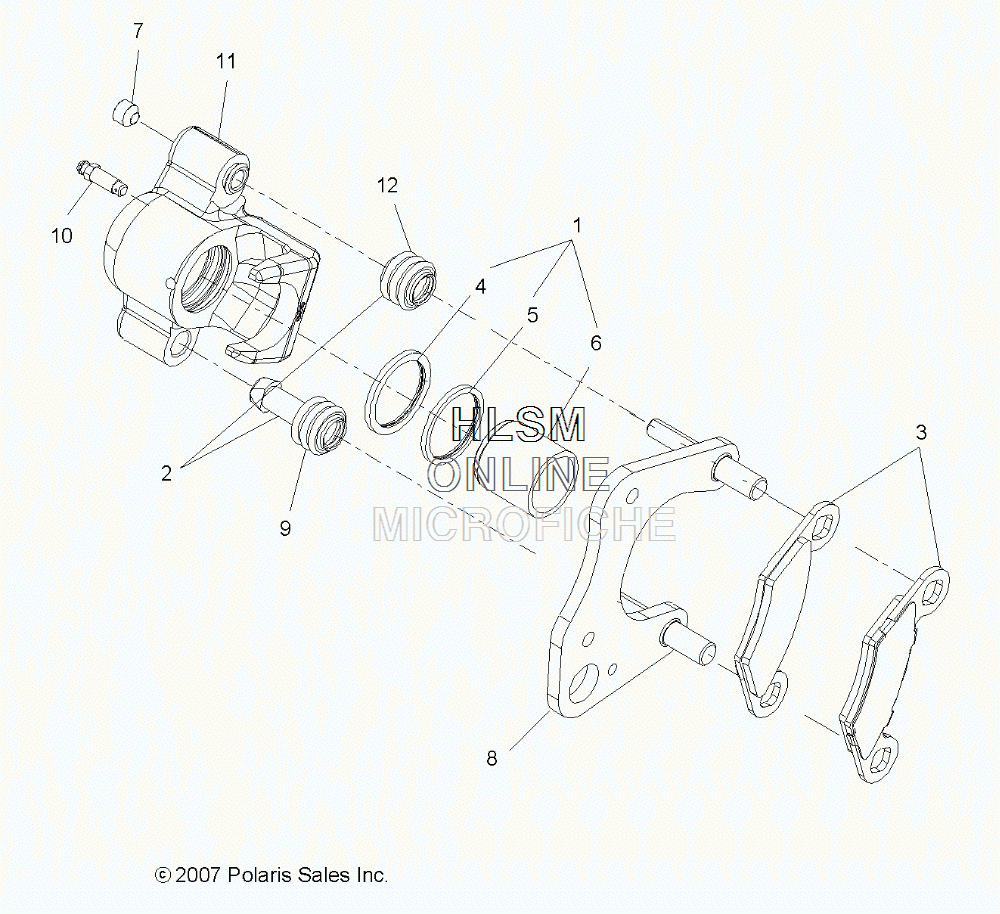

BRAKE - FRONT CALIPER для Polaris SPORTSMAN 500 HO (A11MH50AX) - 2011 года выпуска
-
№АртикулНазвание
-
21911540 ASM., CALIPER, LEFT HAND (INCL. 1-12)ASM., CALIPER, LEFT HAND (INCL. 1-12)
-
41911541 ASM., CALIPER, RIGHT HAND (INCL. 1-12)ASM., CALIPER, RIGHT HAND (INCL. 1-12)
-
11930665 KIT, PISTON AND SEAL (INCL. 4-6)KIT, PISTON AND SEAL (INCL. 4-6)
-
21930642 KIT, FRONT BRAKE BOOT (INCL. 9,12)KIT, FRONT BRAKE BOOT (INCL. 9,12)
-
32202412 KIT, FRONT BRAKE PAD ASM. (INCL. 2 SETS, 4 PADS)KIT, FRONT BRAKE PAD ASM. (INCL. 2 SETS, 4 PADS)
-
45410780 RING, MOLDED SQUARE, .103 X .134RING, MOLDED SQUARE, .103 X .134
-
55410779 RING, MOLDED SQUARE, .094RING, MOLDED SQUARE, .094
-
65132294 PISTON, BRAKE, LONGPISTON, BRAKE, LONG
-
77518863 SCREW, SOCKET SETSCREW, SOCKET SET
-
81910513 MOUNT, CALIPER, FRONTMOUNT, CALIPER, FRONT
-
95412505 BOOT, PIN BUSHINGBOOT, PIN BUSHING
-
107081343 SCREW, BLEEDERSCREW, BLEEDER
-
125412506 BOOT, PIN SEALBOOT, PIN SEAL
