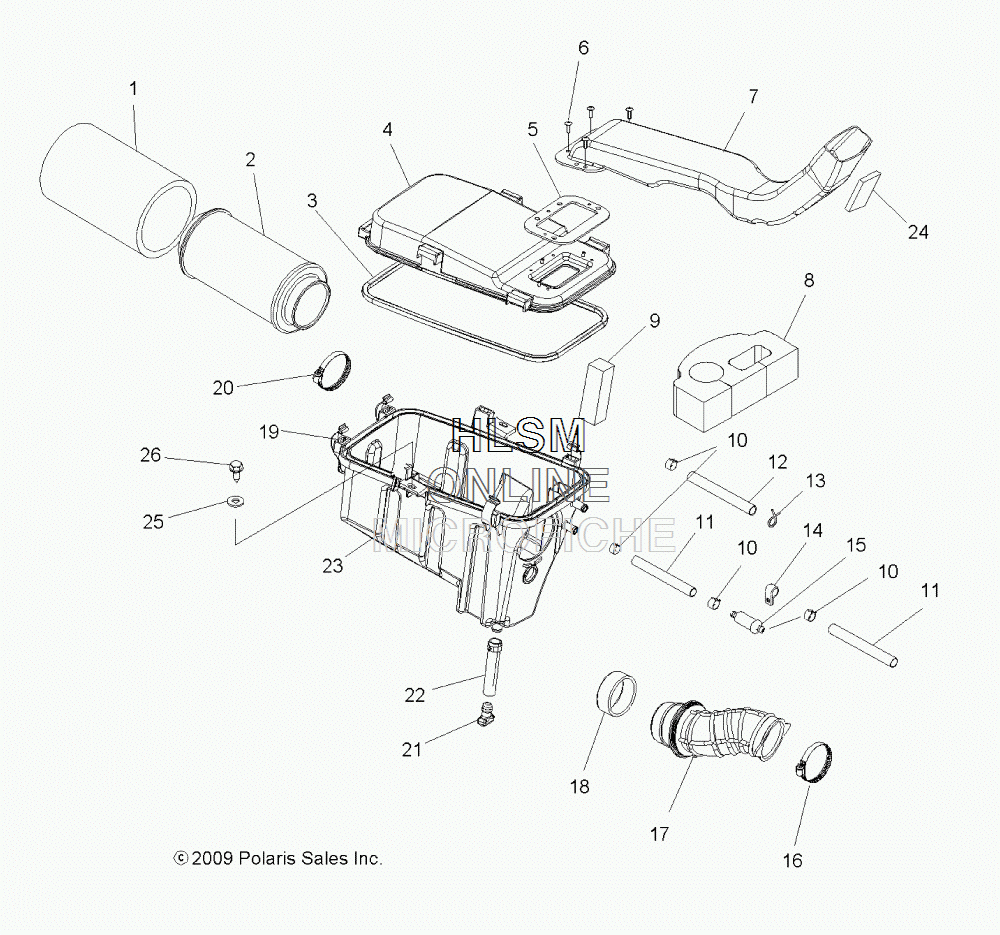

AIR INTAKE SYSTEM для Polaris SPORTSMAN 500 HO TOURING 2-PASS - (INDY RED) (A11DH50AZ) - 2011 года выпуска
-
№АртикулНазвание
-
15811633 FILTER, PRECLEANER SLEEVEFILTER, PRECLEANER SLEEVE
-
27080595 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
35812829 SEAL, AIR BOX COVERSEAL, AIR BOX COVER
-
45436278 COVER, AIR BOXCOVER, AIR BOX
-
55412748 GASKET, INTAKEGASKET, INTAKE
-
67517317 SCREWSCREW
-
75438031 DUCT, AIR INLETDUCT, AIR INLET
-
85812773 SEAL, FOAMSEAL, FOAM
-
95812910 FILTER, CRANKCASEFILTER, CRANKCASE
-
107080699 CLAMP, HOSECLAMP, HOSE
-
118450073-600 LINE, BREATHERLINE, BREATHER
-
125413104 HOSE, BREATHERHOSE, BREATHER
-
137080694 CLAMPCLAMP
-
147080913 CLAMP, PCLAMP, P
-
152530029 FILTER, BREATHERFILTER, BREATHER
-
167080413 CLAMPCLAMP
-
175413718 BOOT, CARBBOOT, CARB
-
185433847 SLEEVESLEEVE
-
195249292 CLIP, AIR BOXCLIP, AIR BOX
-
207080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
215435299 PLUG, TRAPPLUG, TRAP
-
228450059-150 LINE, FUELLINE, FUEL
-
235435981 BOX, AIR INTAKEBOX, AIR INTAKE
-
245813265 FOAM, COVERFOAM, COVER
-
257555859 WASHER, FLATWASHER, FLAT
-
267515179 SCREWSCREW
