CLUTCH COVER для Polaris SPORTSMAN 550 - SAGEBRUSH GREEN METALLIC (A11ZN55AA) - 2011 года выпуска
-

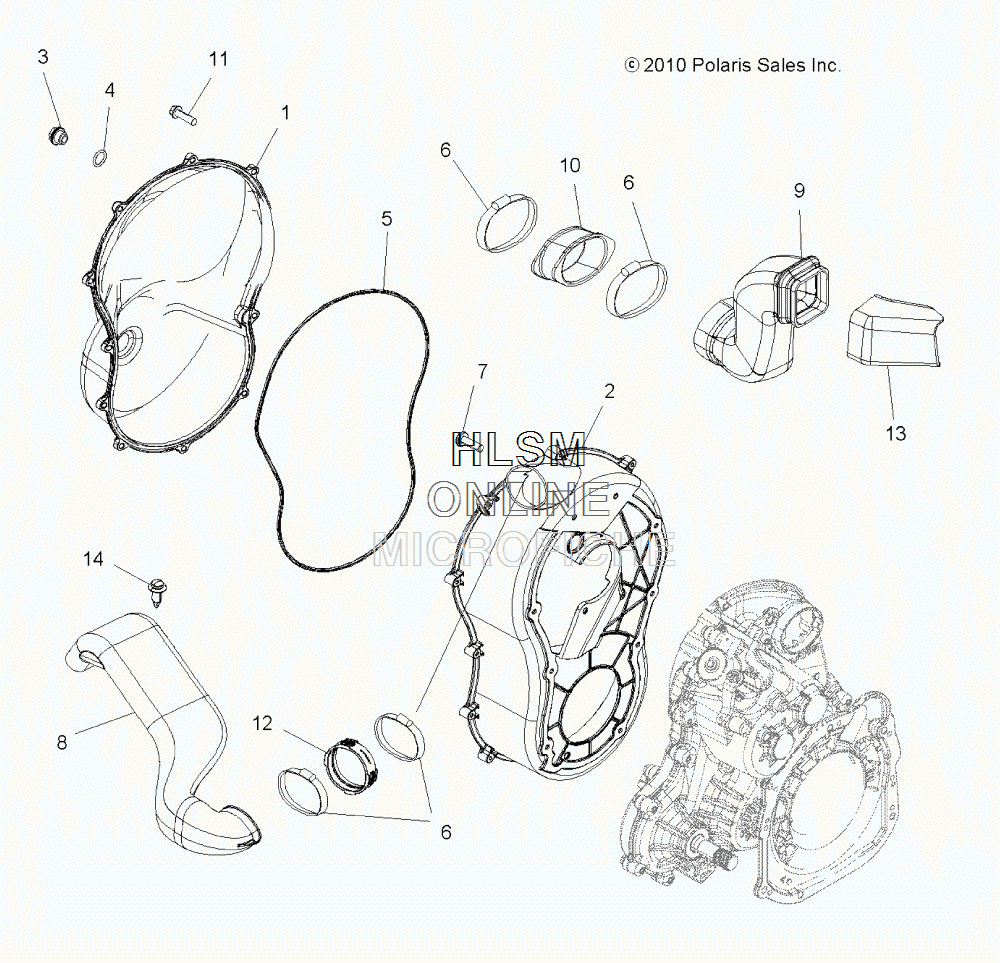

№АртикулНазвание
-
12633919 ASM., COVER, OUTER (INCL. OUTER COVER,3,4)ASM., COVER, OUTER (INCL. OUTER COVER,3,4)
-
25438127 COVER, CLUTCH INNERCOVER, CLUTCH INNER
-
35434264 PLUG, DRAINPLUG, DRAIN
-
45410542 O-RINGO-RING
-
55521802 SEAL, COVER, CLUTCHSEAL, COVER, CLUTCH
-
67081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
77518914 SCREWSCREW
-
85438249 DUCT, OUTLETDUCT, OUTLET
-
95436820 DUCT, AIR INLETDUCT, AIR INLET
-
105413177 BOOT, CLUTCH, INLETBOOT, CLUTCH, INLET
-
117512094 SCREWSCREW
-
125413667 BOOT, OUTLET, DUCTBOOT, OUTLET, DUCT
-
135413516 BOOT, INLET, DUCTBOOT, INLET, DUCT
-
147661855 RIVETRIVET
