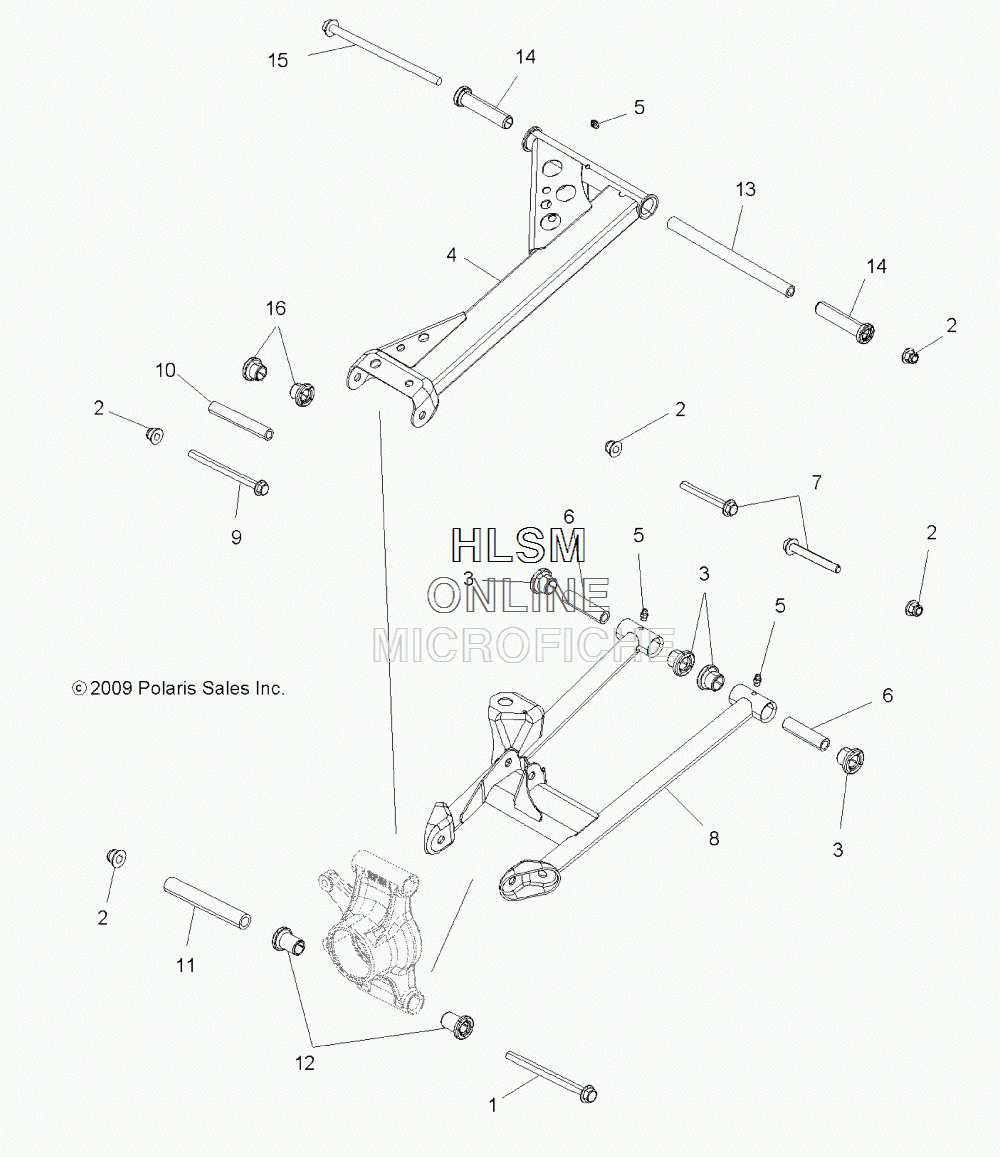

SUSPENSION - REAR для Polaris SPORTSMAN 850 TOURING EPS 2-PASS INTL - 2011 года выпуска
-
№АртикулНазвание
-
17518467 BOLT, FLANGEBOLT, FLANGE
-
27547313 NUT, FLANGENUT, FLANGE
-
35436798 BUSHING, CONTROL ARMBUSHING, CONTROL ARM
-
41017216-067 ARM, CONTROL, UPPER, REAR (LEFT) (BLACK)ARM, CONTROL, UPPER, REAR (LEFT) (BLACK)
-
41017217-067 ARM, CONTROL, UPPER, REAR (RIGHT) (BLACK)ARM, CONTROL, UPPER, REAR (RIGHT) (BLACK)
-
57080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
65137346 SHAFT, A-ARMSHAFT, A-ARM
-
77518466 BOLT, FLANGEBOLT, FLANGE
-
81017864-067 ARM, CONTROL, LOWER, REAR (LEFT) (BLACK)ARM, CONTROL, LOWER, REAR (LEFT) (BLACK)
-
81017865-067 ARM, CONTROL, LOWER, REAR (RIGHT) (BLACK)ARM, CONTROL, LOWER, REAR (RIGHT) (BLACK)
-
97518675 BOLT, FLANGEBOLT, FLANGE
-
105135501 SHAFT, PIVOTSHAFT, PIVOT
-
115136473 SHAFT, A-ARM, LOWER CONTROL ARMSHAFT, A-ARM, LOWER CONTROL ARM
-
125437651 BUSHING, LOWER CONTROL ARMBUSHING, LOWER CONTROL ARM
-
135136468 TUBE, PIVOTTUBE, PIVOT
-
145436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
157518472 BOLTBOLT
-
165436798 BUSHING, CONTROL ARMBUSHING, CONTROL ARM
