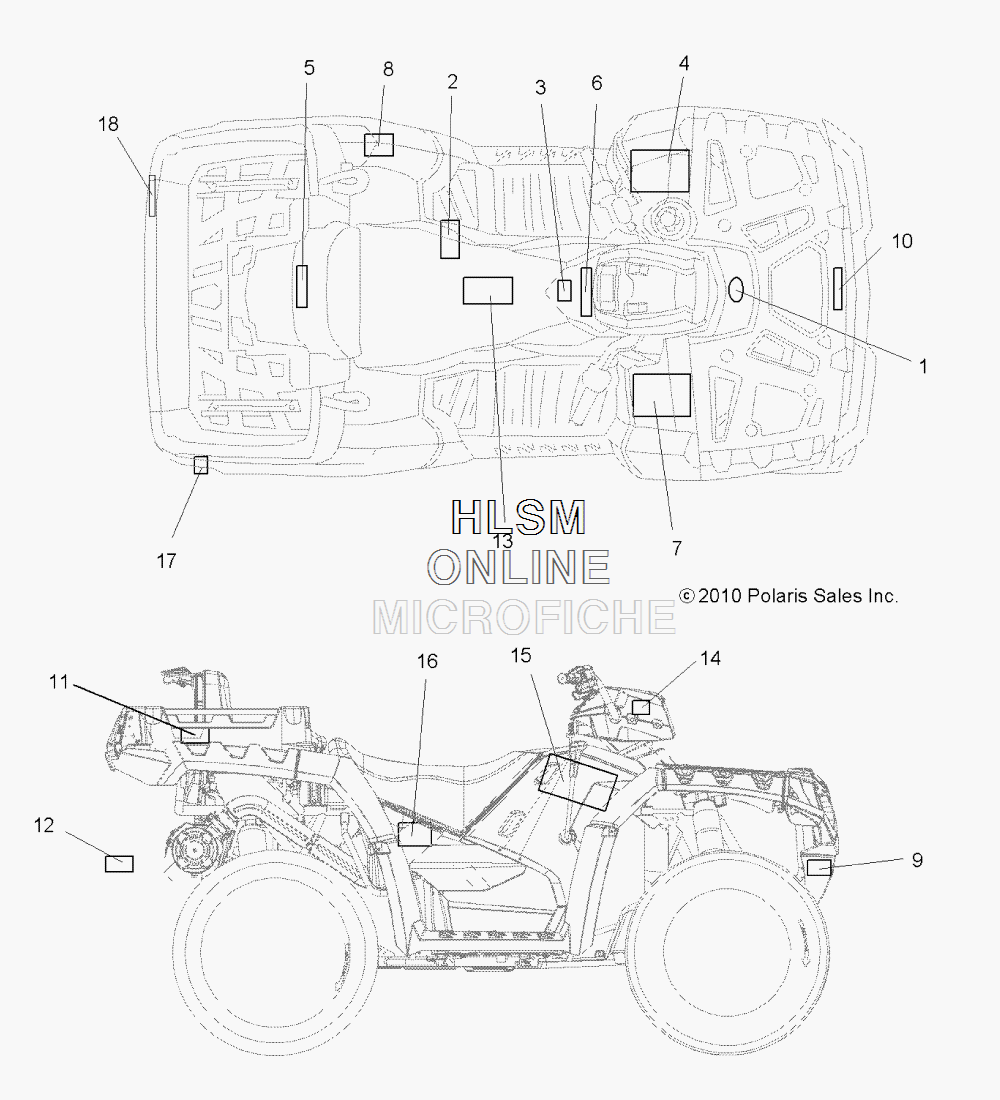

DECALS для Polaris SPORTSMAN 850 X2 LE - 2011 года выпуска
-
№АртикулНазвание
-
17078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
27175883 DECAL, CLUTCH, RETAINING BOLTDECAL, CLUTCH, RETAINING BOLT
-
37175375 DECAL, AGE WARNING, ADULT, 2-UPDECAL, AGE WARNING, ADULT, 2-UP
-
47175844 DECAL, WARNING, GENERAL, 2-UPDECAL, WARNING, GENERAL, 2-UP
-
57173890 DECAL, WARNING, CONTAINER/PASSENGERDECAL, WARNING, CONTAINER/PASSENGER
-
67175512 DECAL, WARNING, OVERRIDE, 4X4 SWITCHDECAL, WARNING, OVERRIDE, 4X4 SWITCH
-
77175845 DECAL, PASSENGER/DISC, WARNINGDECAL, PASSENGER/DISC, WARNING
-
87175846 DECAL, WARNING, TIRE/LOAD, 7/5, 735DECAL, WARNING, TIRE/LOAD, 7/5, 735
-
92670134 REFLECTOR, AMBERREFLECTOR, AMBER
-
107175847 DECAL, WARNING, FRONT RACK, 120DECAL, WARNING, FRONT RACK, 120
-
117174412 DECAL, REFLECTOR (RED)DECAL, REFLECTOR (RED)
-
127170509 DECAL, HITCHDECAL, HITCH
-
137175488 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
-
147176823 DECAL, POD, 'X2'DECAL, POD, 'X2'
-
157176824 DECAL, SIDE, 'SPORTSMAN 850' (LEFT)DECAL, SIDE, 'SPORTSMAN 850' (LEFT)
-
157176825 DECAL, SIDE, 'SPORTSMAN 850' (RIGHT)DECAL, SIDE, 'SPORTSMAN 850' (RIGHT)
-
167176820 DECAL, REAR, 'AWD' (LEFT)DECAL, REAR, 'AWD' (LEFT)
-
167176821 DECAL, REAR, 'AWD' (RIGHT)DECAL, REAR, 'AWD' (RIGHT)
-
177175618 DECAL, REAR, FLAGDECAL, REAR, FLAG
-
187177164 DECAL, REAR, VERSA TRAKDECAL, REAR, VERSA TRAK
