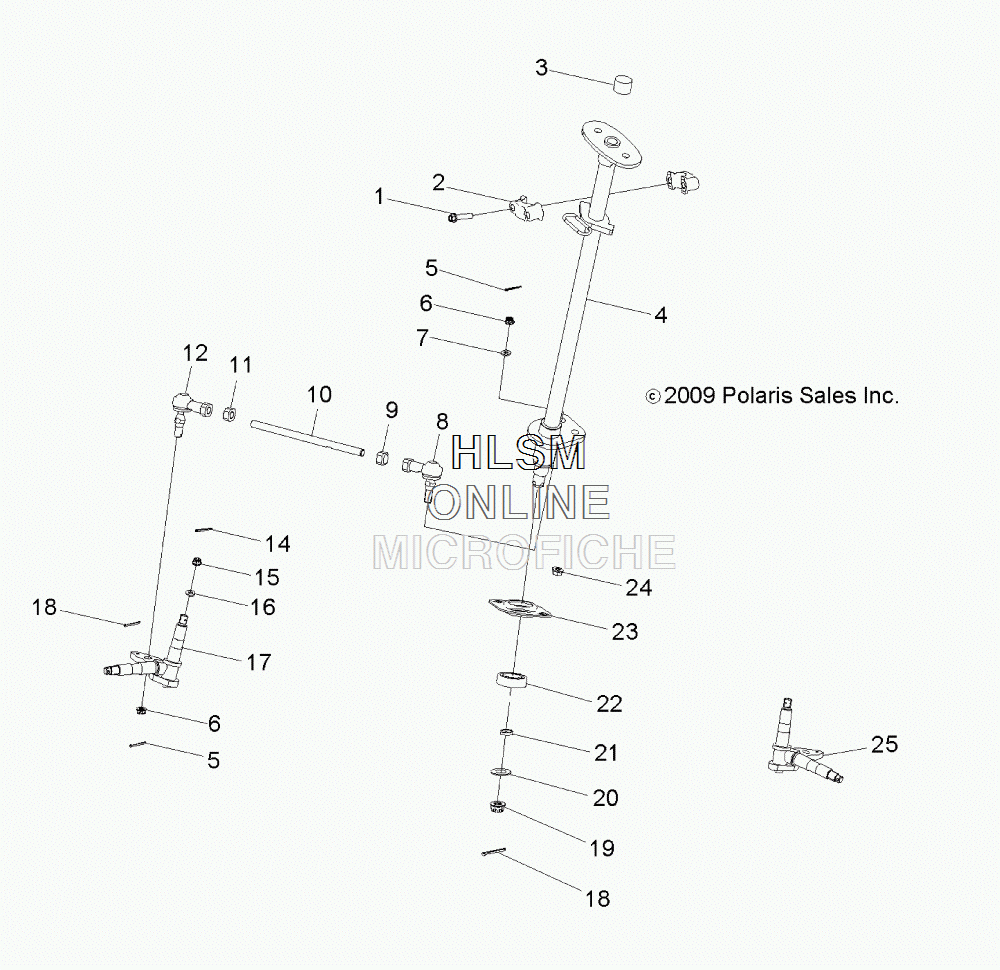

STEERING POST W/TIE RODS для Polaris SPORTSMAN 90 (A11FA09AA) - 2011 года выпуска
-
№АртикулНазвание
-
10453730 BOLTBOLT
-
20454709 CLAMP, STEERING POSTCLAMP, STEERING POST
-
30450499 SLEEVE, STEERINGSLEEVE, STEERING
-
40454613-067 POST, STEERING (BLACK)POST, STEERING (BLACK)
-
50453819 PIN, COTTERPIN, COTTER
-
60453820 NUT, LOCKNUT, LOCK
-
70453809 WASHER, SPRINGWASHER, SPRING
-
80454629 ROD END, INNERROD END, INNER
-
90454749 NUT, TIE ROD (LEFT)NUT, TIE ROD (LEFT)
-
100454751 TIE RODTIE ROD
-
110454750 NUT, TIE ROD (RIGHT)NUT, TIE ROD (RIGHT)
-
120454630 ROD END, OUTERROD END, OUTER
-
140450719 PIN, COTTERPIN, COTTER
-
150450502 NUTNUT
-
160453513 WASHERWASHER
-
170453554 KNUCKLE (LEFT)KNUCKLE (LEFT)
-
180450395 PIN, COTTERPIN, COTTER
-
190453502 NUTNUT
-
200452671 WASHERWASHER
-
210452719 SPACERSPACER
-
220453978 BEARING, BALLBEARING, BALL
-
230453494 FLANGETTEFLANGETTE
-
240453866 NUTNUT
-
250453555 KNUCKLE (RIGHT)KNUCKLE (RIGHT)
