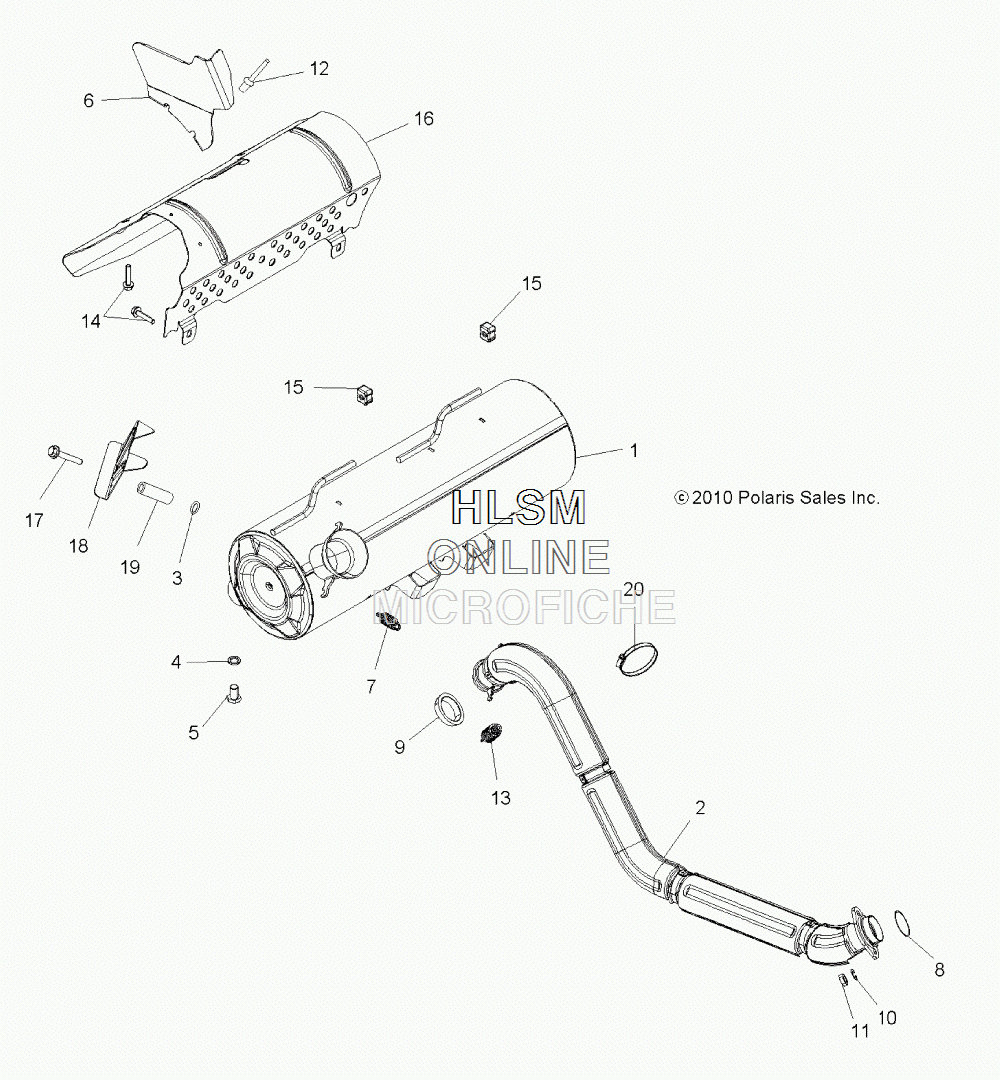

EXHAUST SYSTEM для Polaris SPORTSMAN EPS 550 - POLARIS PERSUIT CAMO (A11ZX55AT) - 2011 года выпуска
-
№АртикулНазвание
-
11262232-489 SILENCER, EXHAUST (BLACK) (INCL. 4,5)SILENCER, EXHAUST (BLACK) (INCL. 4,5)
-
21261551 ASM., PIPE, EXHAUST (INCL. PIPE, SHIELDS)ASM., PIPE, EXHAUST (INCL. PIPE, SHIELDS)
-
37670154 RETAINER, BOLTRETAINER, BOLT
-
47516230 WASHER, CLEAN OUTWASHER, CLEAN OUT
-
57512666 BOLTBOLT
-
65252515 SHIELDSHIELD
-
77041789 SPRING, EXHAUSTSPRING, EXHAUST
-
83090004 GASKET, EXHAUSTGASKET, EXHAUST
-
93610156 SEAL, EXHAUSTSEAL, EXHAUST
-
107556111 WASHER, LOCKWASHER, LOCK
-
117547076 NUTNUT
-
127661637 RIVETRIVET
-
137041789 SPRINGSPRING
-
147518513 SCREWSCREW
-
155413383 GROMMET, SILENCER MOUNTGROMMET, SILENCER MOUNT
-
165252266 SHIELD, BOX, STORAGESHIELD, BOX, STORAGE
-
177519090 SCREWSCREW
-
185253865 SHIELD, EXHAUST SPRINGSHIELD, EXHAUST SPRING
-
195336190 SPACER, EXHAUST SPRING SHIELDSPACER, EXHAUST SPRING SHIELD
-
207080809 CLAMP, WORM DRIVECLAMP, WORM DRIVE
