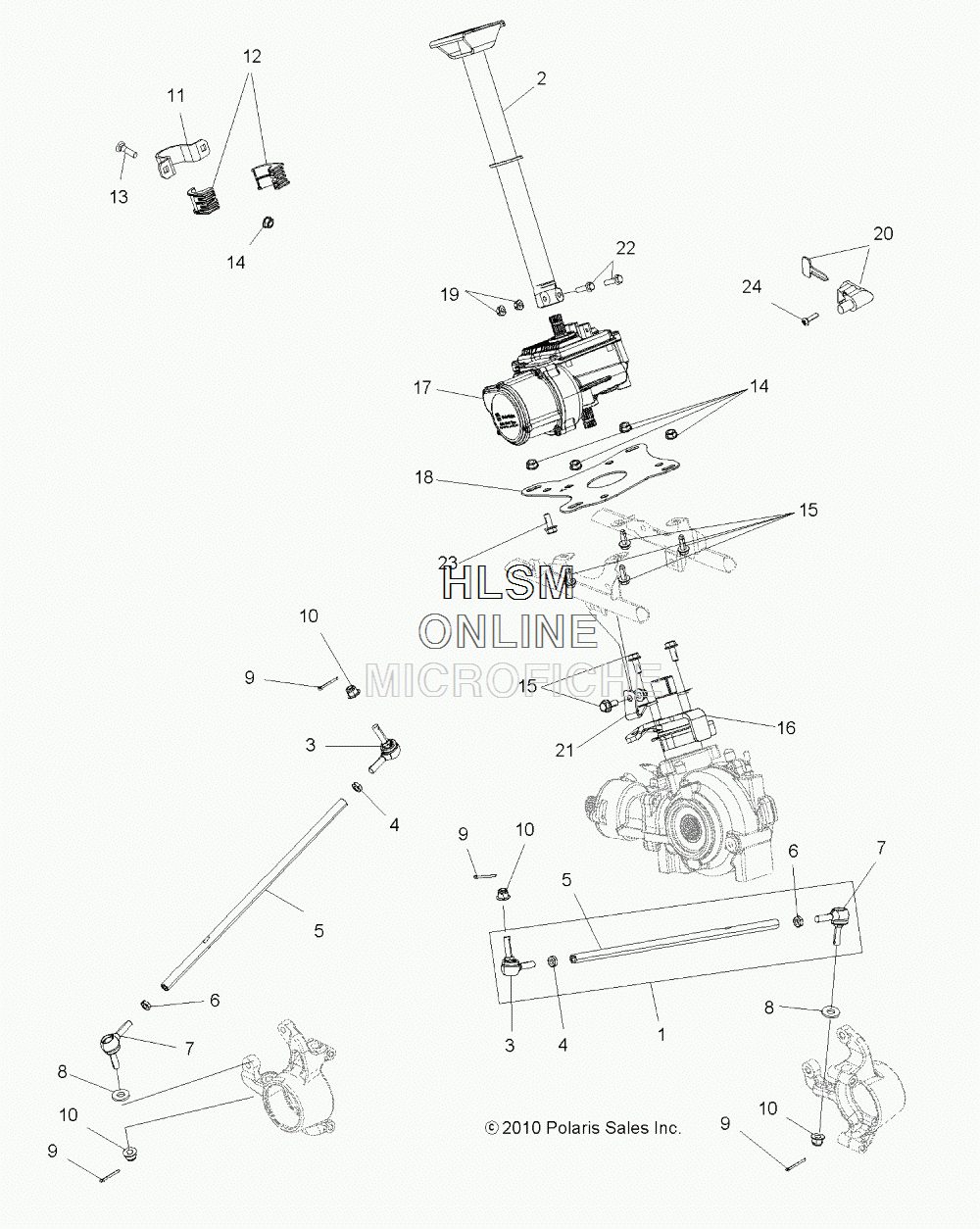

STEERING POST для Polaris SPORTSMAN FOREST 550 (A11ZX55FF) - 2011 года выпуска
-
№АртикулНазвание
-
11823620 ASM., TIE ROD (INCL. 3-7)ASM., TIE ROD (INCL. 3-7)
-
21823781-329 POST, STEERING, UPPER (BLACK)POST, STEERING, UPPER (BLACK)
-
37061175 ROD END (RIGHT)ROD END (RIGHT)
-
47547452 NUT, JAM (RIGHT)NUT, JAM (RIGHT)
-
55136903 TIE RODTIE ROD
-
67547451 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
77061174 ROD END (LEFT)ROD END (LEFT)
-
87556153 WASHERWASHER
-
97661205 PIN, COTTERPIN, COTTER
-
107547333 NUT, FLANGENUT, FLANGE
-
115249143 BRACKET, STEERING, UPPERBRACKET, STEERING, UPPER
-
125438904 BUSHING, STEERING, UPPERBUSHING, STEERING, UPPER
-
137518479 BOLT, CARRIAGEBOLT, CARRIAGE
-
147547317 NUT, FLANGENUT, FLANGE
-
157518450 BOLT, FLANGEBOLT, FLANGE
-
161823771 ASM., POST, STEERING, LOWERASM., POST, STEERING, LOWER
-
172411630 ASM., POWER STEERINGASM., POWER STEERING
-
185254633-329 BRACKET, POWER STEERING (BLACK)BRACKET, POWER STEERING (BLACK)
-
197547274 NUT, FLANGENUT, FLANGE
-
207081498 LOCK, STEERINGLOCK, STEERING
-
215253167-329 BRACKET, FRONT DRIVE (RIGHT) (BLACK)BRACKET, FRONT DRIVE (RIGHT) (BLACK)
-
227516827 SCREW, FLANGESCREW, FLANGE
-
237518558 BOLT, FLANGEBOLT, FLANGE
-
247518457 SCREWSCREW
