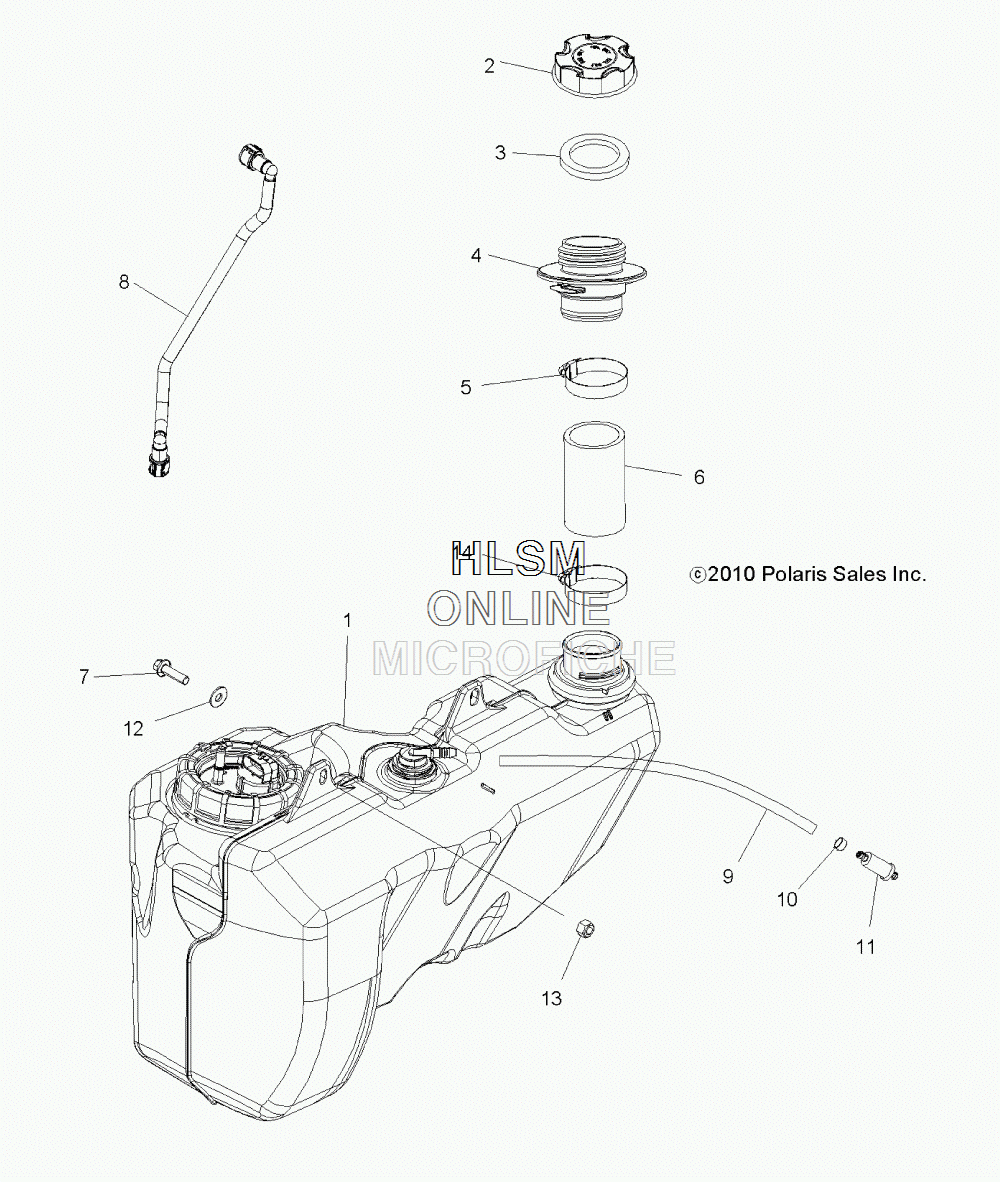

FUEL TANK для Polaris SPORTSMAN FOREST 850 (A11ZX85FF) - 2011 года выпуска
-
№АртикулНазвание
-
12204401 KIT, FUEL PUMP (INCL. PUMP ASM., GASKET, NUT, INSTRUCTIONS)KIT, FUEL PUMP (INCL. PUMP ASM., GASKET, NUT, INSTRUCTIONS)
-
12521079 ASM., FUEL TANK W/PUMP (INCL. PUMP)ASM., FUEL TANK W/PUMP (INCL. PUMP)
-
25433687 CAP, GAS TANK (INCL. GASKET)CAP, GAS TANK (INCL. GASKET)
-
35812123 GASKETGASKET
-
45436898 INLET, FUELINLET, FUEL
-
57081413 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
65413142 HOSE, FUEL FILLHOSE, FUEL FILL
-
77519202 SCREW, FLANGESCREW, FLANGE
-
82521082 ASM., FUEL LINEASM., FUEL LINE
-
98450126-104 LINE, VENTLINE, VENT
-
107080307 CLAMP, HOSECLAMP, HOSE
-
112530009 FILTERFILTER
-
127555859 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
147081413 CLAMP, CONSTANT TENSIONCLAMP, CONSTANT TENSION
