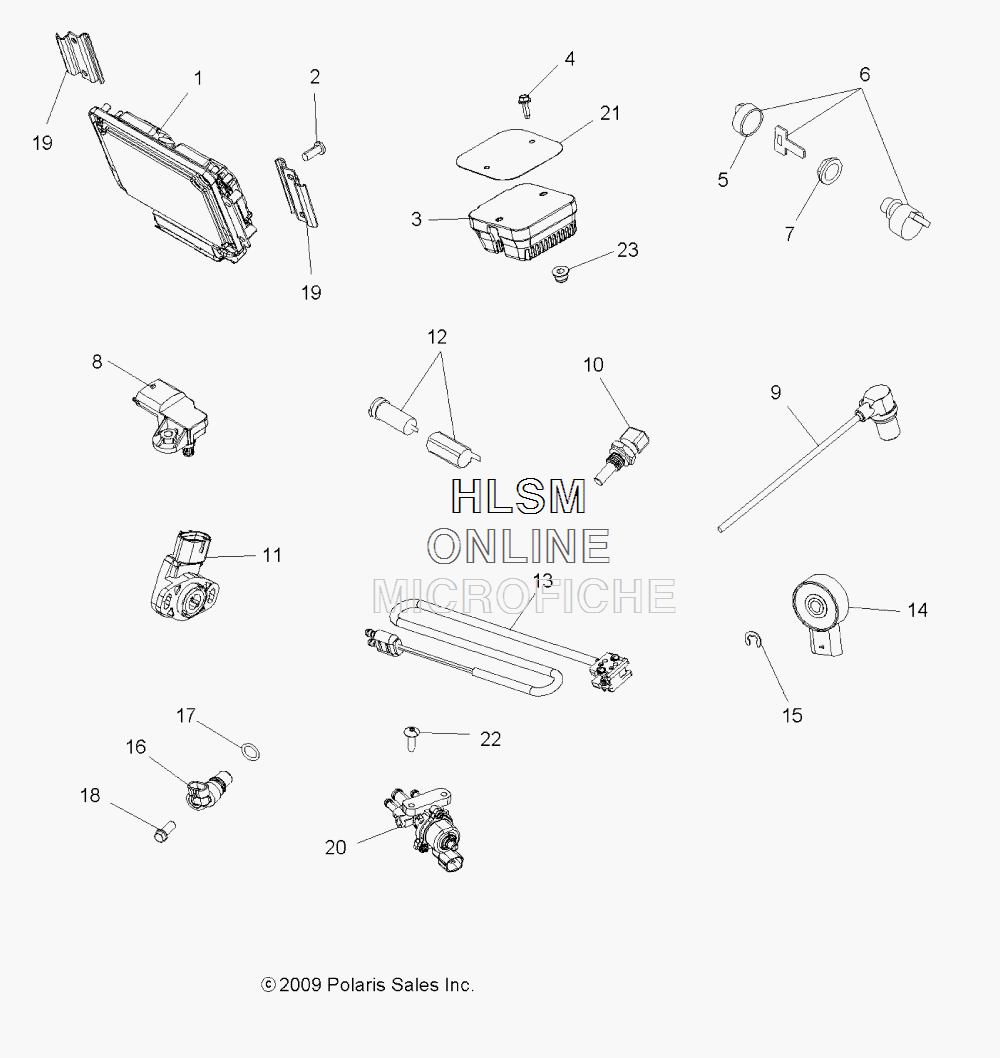

ELECTRICAL COMPONENTS для Polaris SPORTSMAN TOURING EPS 2-PASS - BOARDWALK BLUE (A11DX85AG) - 2011 года выпуска
-
№АртикулНазвание
-
14013041 ECMECM
-
27512095 SCREWSCREW
-
34012678 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
47519202 SCREW, FLANGESCREW, FLANGE
-
55433534 COVER, KEYCOVER, KEY
-
64012165 SWITCH, KEY, 3 POSITION (INCL. 5)SWITCH, KEY, 3 POSITION (INCL. 5)
-
75433733 NUT, IGNITIONNUT, IGNITION
-
82411082 SENSOR, T-MAPSENSOR, T-MAP
-
87518541 SCREWSCREW
-
92411589 SENSOR, ENGINE SPEEDSENSOR, ENGINE SPEED
-
104010644 SENSOR, THERMISTORSENSOR, THERMISTOR
-
113131705 ASM., SENSORASM., SENSOR
-
124010638 RECEPTACLE, POD, 12 VRECEPTACLE, POD, 12 V
-
132202794 KIT, BRAKE LIGHT SWITCHKIT, BRAKE LIGHT SWITCH
-
143233835 SWITCH (GEAR POSITION)SWITCH (GEAR POSITION)
-
153233834 RING, RETAININGRING, RETAINING
-
164012167 SENSOR, SPEEDSENSOR, SPEED
-
167670116 CLIP, ROUTING, HINGED (FOR USE W/SPEED SENSOR)CLIP, ROUTING, HINGED (FOR USE W/SPEED SENSOR)
-
173234302 O-RINGO-RING
-
183234329 SCREWSCREW
-
195251244 BRACKET, MOUNT, ECUBRACKET, MOUNT, ECU
-
204011638 VALVE, IACVALVE, IAC
-
215253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
227512018 SCREWSCREW
-
237547274 NUT, FLANGENUT, FLANGE
