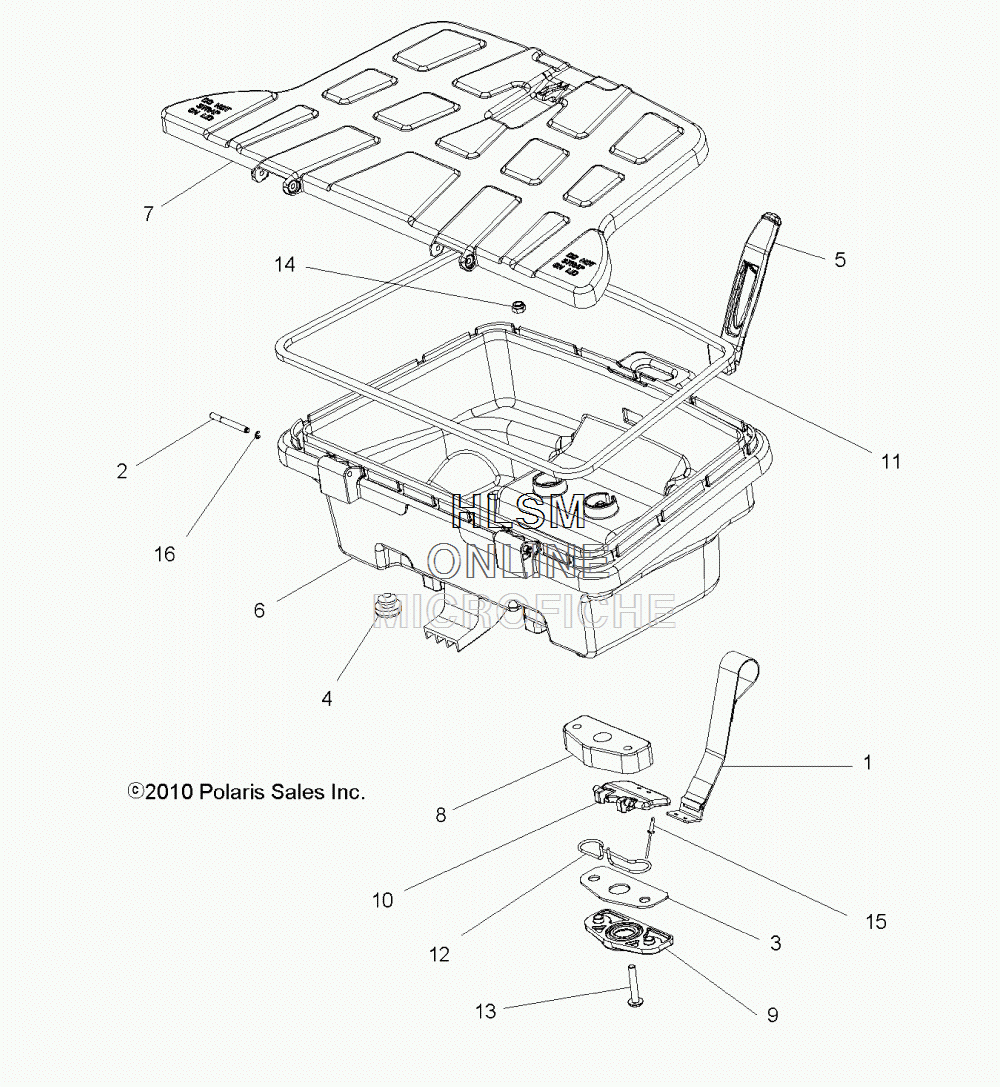

CARGO RACK для Polaris SPORTSMAN TOURING EPS 2-PASS - SUPER GRAPHITE (A11DX85AF) - 2011 года выпуска
-
№АртикулНазвание
-
12684697 ASM., STRAP, SEAT LATCHASM., STRAP, SEAT LATCH
-
25137573 PIN, HINGEPIN, HINGE
-
35254646 PLATE, SEAT LATCHPLATE, SEAT LATCH
-
45414081 BUMPER, RUBBERBUMPER, RUBBER
-
55414082 STRAP, LATCH, RUBBERSTRAP, LATCH, RUBBER
-
65438767 BOX, STORAGE, BASEBOX, STORAGE, BASE
-
75438768 BOX, STORAGE, LIDBOX, STORAGE, LID
-
85438769 PLATE, TOP, SEAT BASE LATCHPLATE, TOP, SEAT BASE LATCH
-
95438770 PLATE, BOTTOM, SEAT BASE LATCHPLATE, BOTTOM, SEAT BASE LATCH
-
105438771 HANDLE, SEAT BASE LATCHHANDLE, SEAT BASE LATCH
-
115521828 SEAL, FOAMSEAL, FOAM
-
127081691 SPRING, SEAT LATCHSPRING, SEAT LATCH
-
137519191 SCREWSCREW
-
147547497 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
157661997 RIVETRIVET
-
167710670 RING, RETAINING, E-CLIPRING, RETAINING, E-CLIP
