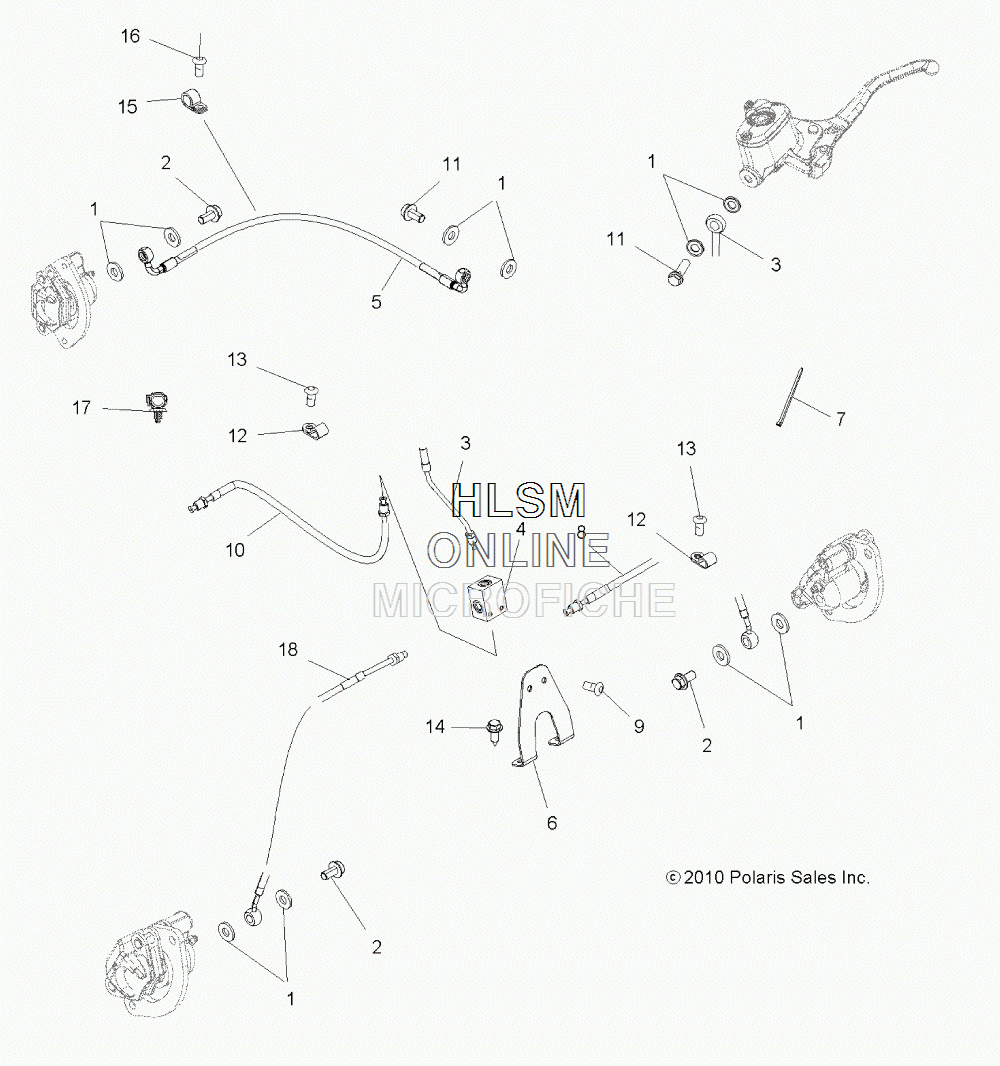

BRAKE LINES для Polaris SPORTSMAN TOURING EPS 2-PASS INTL - (INDY RED) (A11DX55AF) - 2011 года выпуска
-
№АртикулНазвание
-
15413212 SEALSEAL
-
21910499 BOLT, BANJOBOLT, BANJO
-
31911393 LINE, BRAKE, POD TO JBLINE, BRAKE, POD TO JB
-
47052372 FITTING, CROSSFITTING, CROSS
-
51911561 LINE, BRAKE, REARLINE, BRAKE, REAR
-
65252667 BRACKET, JUNCTION BLOCKBRACKET, JUNCTION BLOCK
-
77080138 CABLE TIECABLE TIE
-
81911383 LINE, BRAKE, FRONTLINE, BRAKE, FRONT
-
97512024 SCREWSCREW
-
101911384 LINE, BRAKE, JB TO FT MCLINE, BRAKE, JB TO FT MC
-
111910958 BOLT, BANJOBOLT, BANJO
-
127080683 CLAMP, HOSECLAMP, HOSE
-
137512084 SCREWSCREW
-
147518513 BOLTBOLT
-
157080693 CLAMP, HOSECLAMP, HOSE
-
167621330 RIVETRIVET
-
177670116 CLIP, ROUTINGCLIP, ROUTING
-
181911687 LINE, FRONT (RIGHT)LINE, FRONT (RIGHT)
