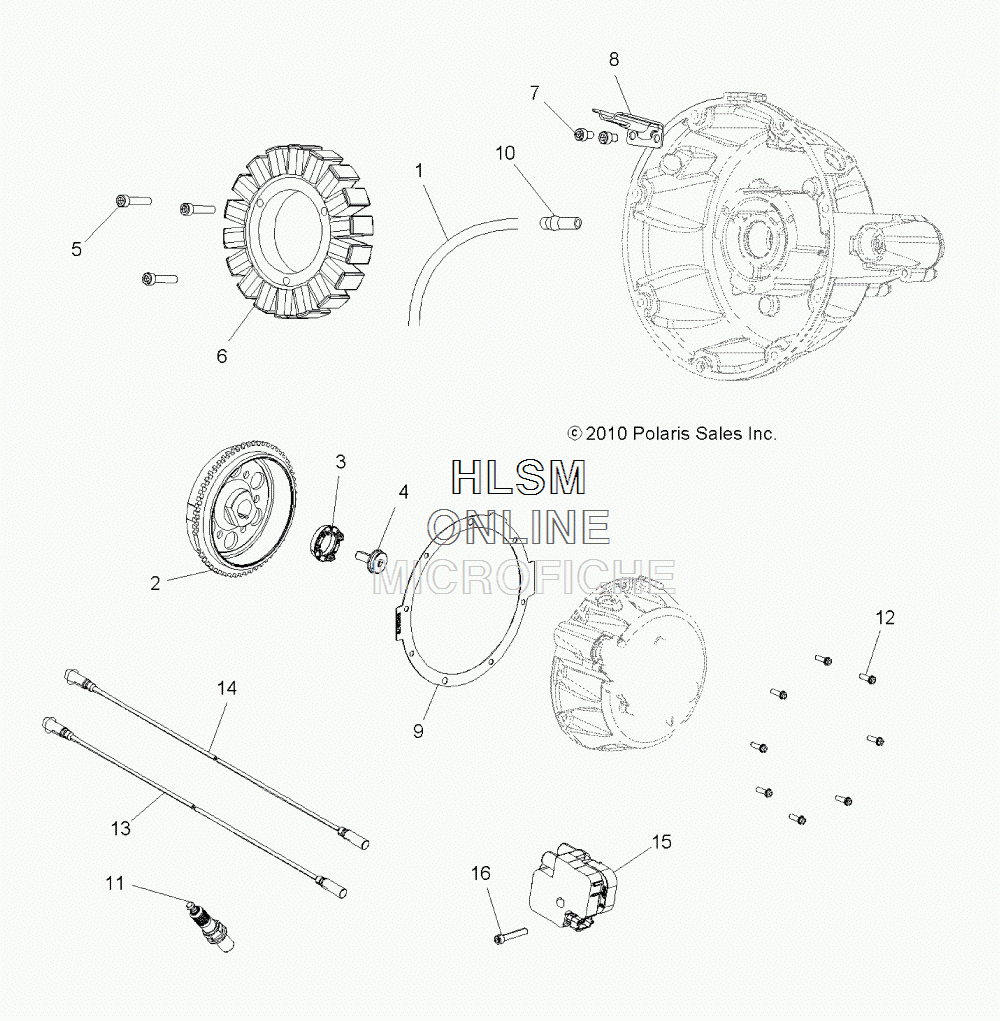

IGNITION SYSTEM для Polaris SPORTSMAN XP 850 - POLARIS PURSUIT CAMO (A11ZN85AQ) - 2011 года выпуска
-
№АртикулНазвание
-
18360077 TUBING, NYLONTUBING, NYLON
-
24011428 FLYWHEELFLYWHEEL
-
35136307 COUPLER, WATER PUMP, FLYWHEELCOUPLER, WATER PUMP, FLYWHEEL
-
45136389 BOLT, WATER PUMP DRIVE (LEFT) (BUILT 9/22/10 AND BEFORE)BOLT, WATER PUMP DRIVE (LEFT) (BUILT 9/22/10 AND BEFORE)
-
45137471 BOLT, WATER PUMP DRIVE (LEFT) (BUILT 9/23/10 AND AFTER)BOLT, WATER PUMP DRIVE (LEFT) (BUILT 9/23/10 AND AFTER)
-
57518544 SCREWSCREW
-
64011427 STATOR W/GROMMETSTATOR W/GROMMET
-
77518765 SCREWSCREW
-
85250018 RETAINER, STATOR WIRERETAINER, STATOR WIRE
-
95813267 GASKET, STATOR COVERGASKET, STATOR COVER
-
107052463 FITTINGFITTING
-
113022225 PLUG, SPARKPLUG, SPARK
-
127518576 SCREWSCREW
-
134012343 WIRE, SPARK PLUG, 356MMWIRE, SPARK PLUG, 356MM
-
144012344 WIRE, SPARK PLUG, 406MMWIRE, SPARK PLUG, 406MM
-
154010425 COIL, EFICOIL, EFI
-
167518922 SCREWSCREW
