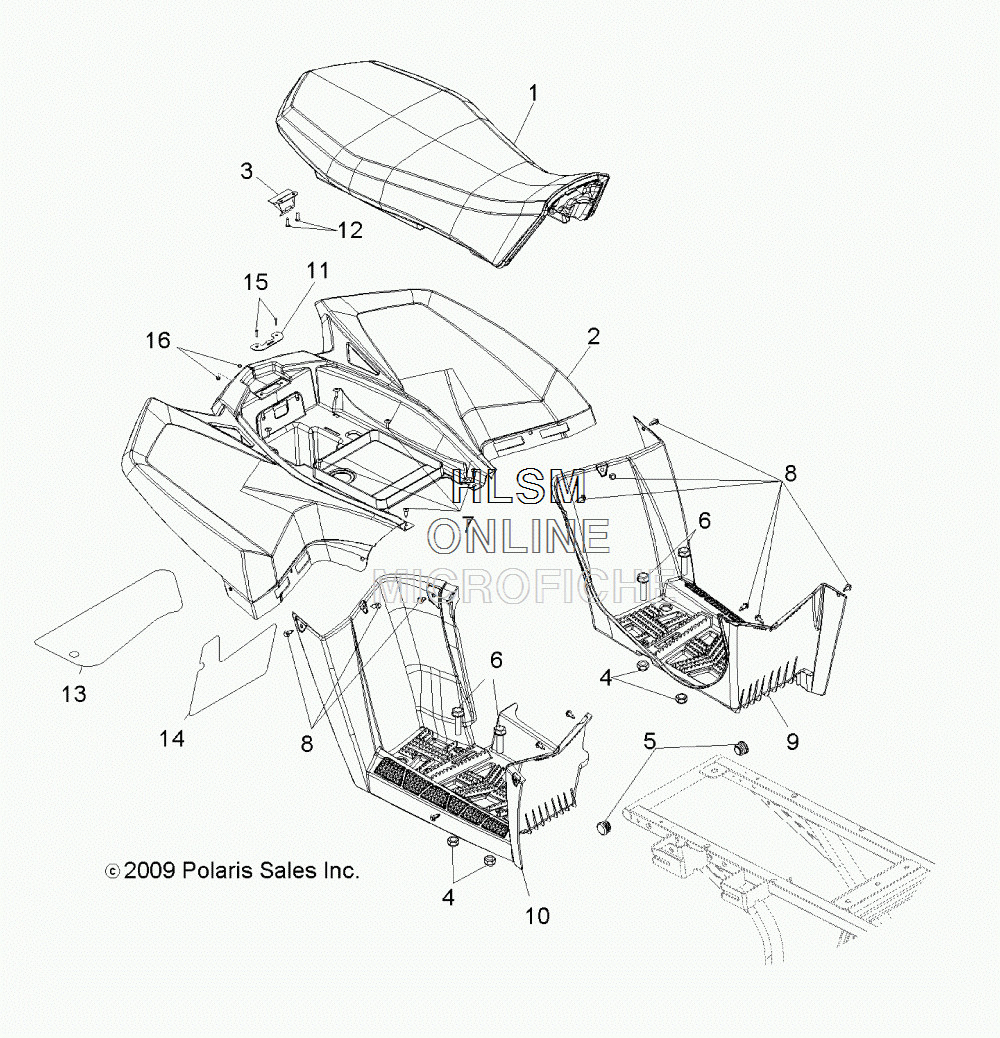

FENDER - REAR W/ SEAT для Polaris TRAIL BLAZER 330 INTL (A11NA32FA) - 2011 года выпуска
-
№АртикулНазвание
-
12684296-070 ASM., SEAT, BLACK (INCL. 3,12)ASM., SEAT, BLACK (INCL. 3,12)
-
12684337 ASM., COVER, BLACKASM., COVER, BLACK
-
25437894-053 CAB, REAR, MEDIUM YELLOWCAB, REAR, MEDIUM YELLOW
-
35253471 LATCH, SPRING, SEATLATCH, SPRING, SEAT
-
47542122 NUT, NYLOKNUT, NYLOK
-
55432831 PLUG, END CAP, RIBBEDPLUG, END CAP, RIBBED
-
67517230 SCREWSCREW
-
77518280 SCREWSCREW
-
87661855 RIVETRIVET
-
95437914-070 FOOTWELL, LEFT HAND, BLACKFOOTWELL, LEFT HAND, BLACK
-
105437915-070 FOOTWELL, RIGHT HAND, BLACKFOOTWELL, RIGHT HAND, BLACK
-
115253308 PLATE, SEAT LATCHPLATE, SEAT LATCH
-
127512026 SCREWSCREW
-
135813555 FOILFOIL
-
145813556 FOILFOIL
-
157518281 SCREWSCREW
-
167518287 NUTNUT
