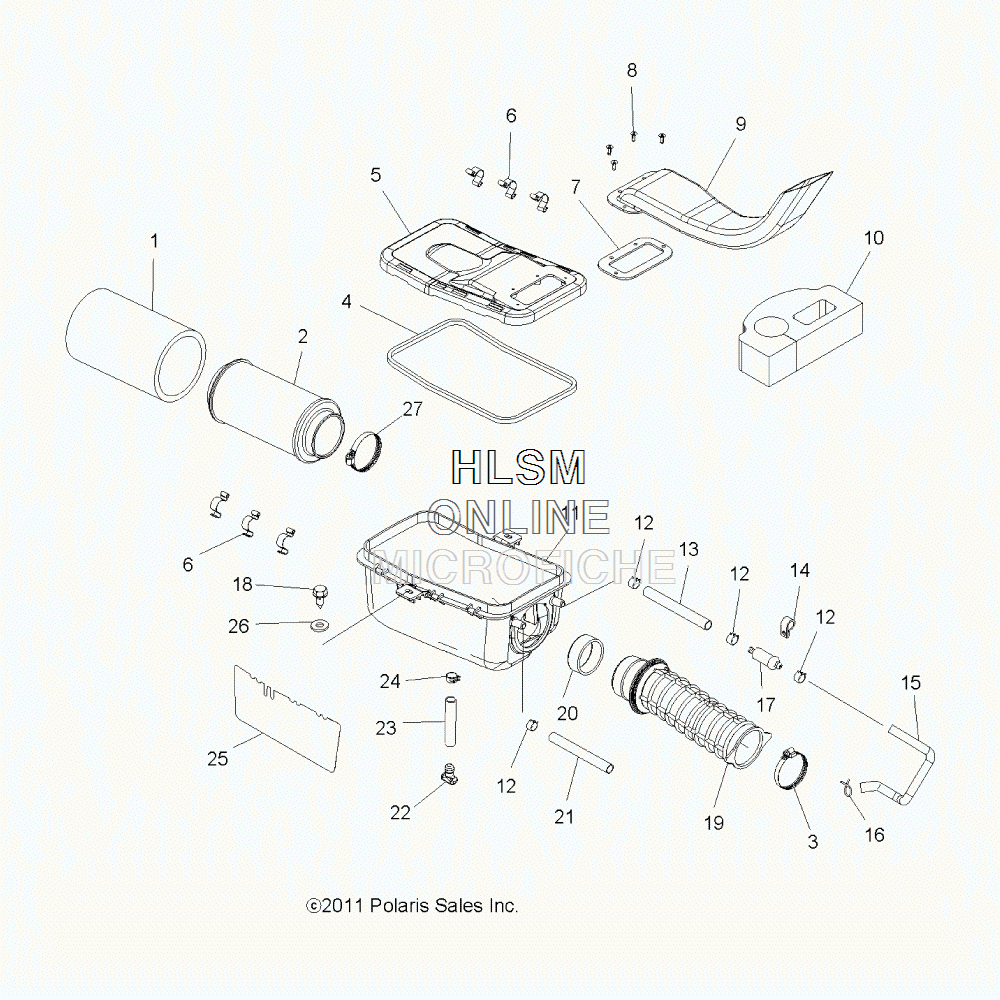

AIR INTAKE SYSTEM для Polaris HAWKEYE 400 HO 2X4 [A12MB46FZ] - 2012 года выпуска
-
№АртикулНазвание
-
15811633 FILTER, PRECLEANER SLEEVEFILTER, PRECLEANER SLEEVE
-
27080595 FILTER, AIRFILTER, AIR
-
37080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
45812829 SEAL, COVERSEAL, COVER
-
55432868 COVER, AIR BOXCOVER, AIR BOX
-
65242044 CLIPCLIP
-
75411422 GASKET, INTAKEGASKET, INTAKE
-
87517317 SCREWSCREW
-
95436937 DUCT, AIR INLETDUCT, AIR INLET
-
105811626 SEAL, FOAMSEAL, FOAM
-
115438552 BOX, AIRBOX, AIR
-
127080699 CLAMP, HOSECLAMP, HOSE
-
138450073-600 LINE, BREATHERLINE, BREATHER
-
147080913 P-CLAMPP-CLAMP
-
155413104 HOSE, BREATHERHOSE, BREATHER
-
167080694 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
172530029 FILTER, BREATHERFILTER, BREATHER
-
187515179 SCREWSCREW
-
195412561 BOOT, CARBURETORBOOT, CARBURETOR
-
205433847 SLEEVE, CARBURETOR, INNERSLEEVE, CARBURETOR, INNER
-
215413003 LINE, BREATHERLINE, BREATHER
-
225435299 PLUG, TRAPPLUG, TRAP
-
238450059-150 LINE, FUELLINE, FUEL
-
247080650 CLAMP, HOSECLAMP, HOSE
-
255813652 FOILFOIL
-
267555859 WASHER, FLATWASHER, FLAT
-
277080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
