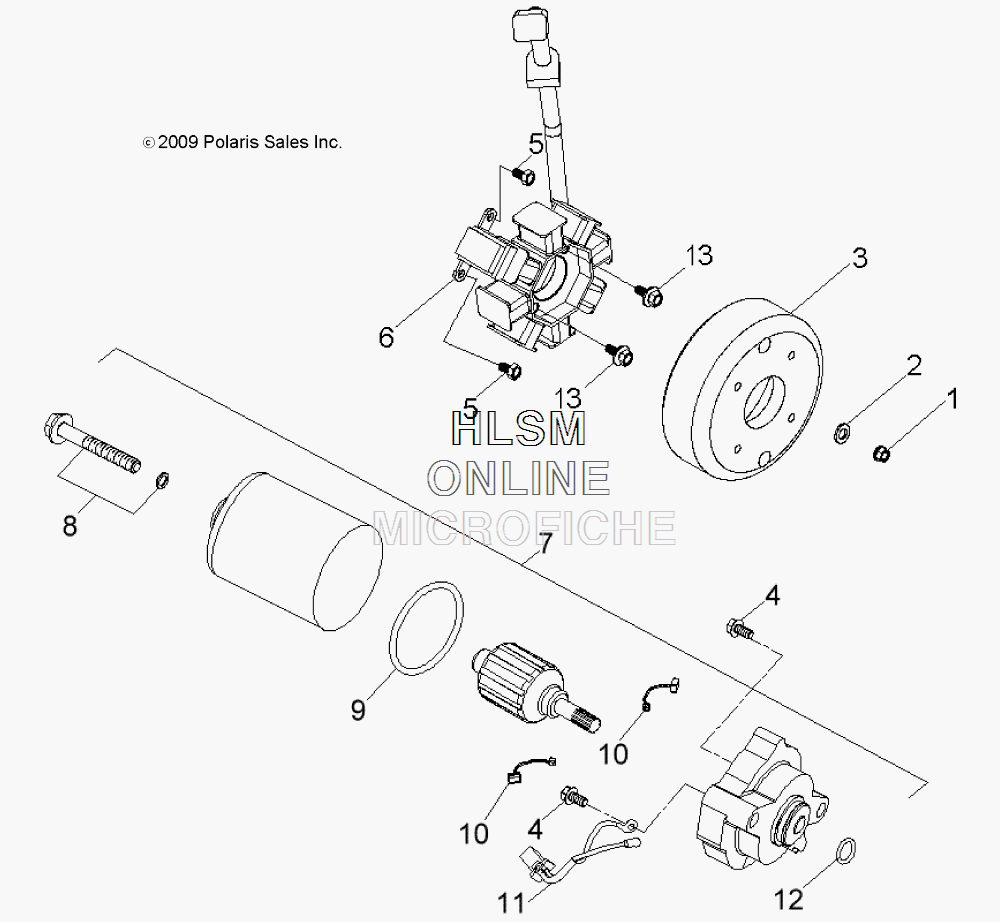

STARTING MOTOR /W GENERATOR для Polaris OUTLAW 50 - PINK [A12KA05AD] - 2012 года выпуска
-
№АртикулНазвание
-
10450529 NUT, FLANGENUT, FLANGE
-
20453560 WASHER, SPRINGWASHER, SPRING
-
30453561 FLYWHEELFLYWHEEL
-
40453519 BOLTBOLT
-
50452456 BOLTBOLT
-
60453559 STATORSTATOR
-
70454691 ASM., MOTOR, STARTERASM., MOTOR, STARTER
-
80453849 BOLT, SETBOLT, SET
-
90450537 O-RINGO-RING
-
100450535 SET, BRUSHSET, BRUSH
-
110450857 CORDCORD
-
120450539 O-RINGO-RING
-
130453520 BOLTBOLT
