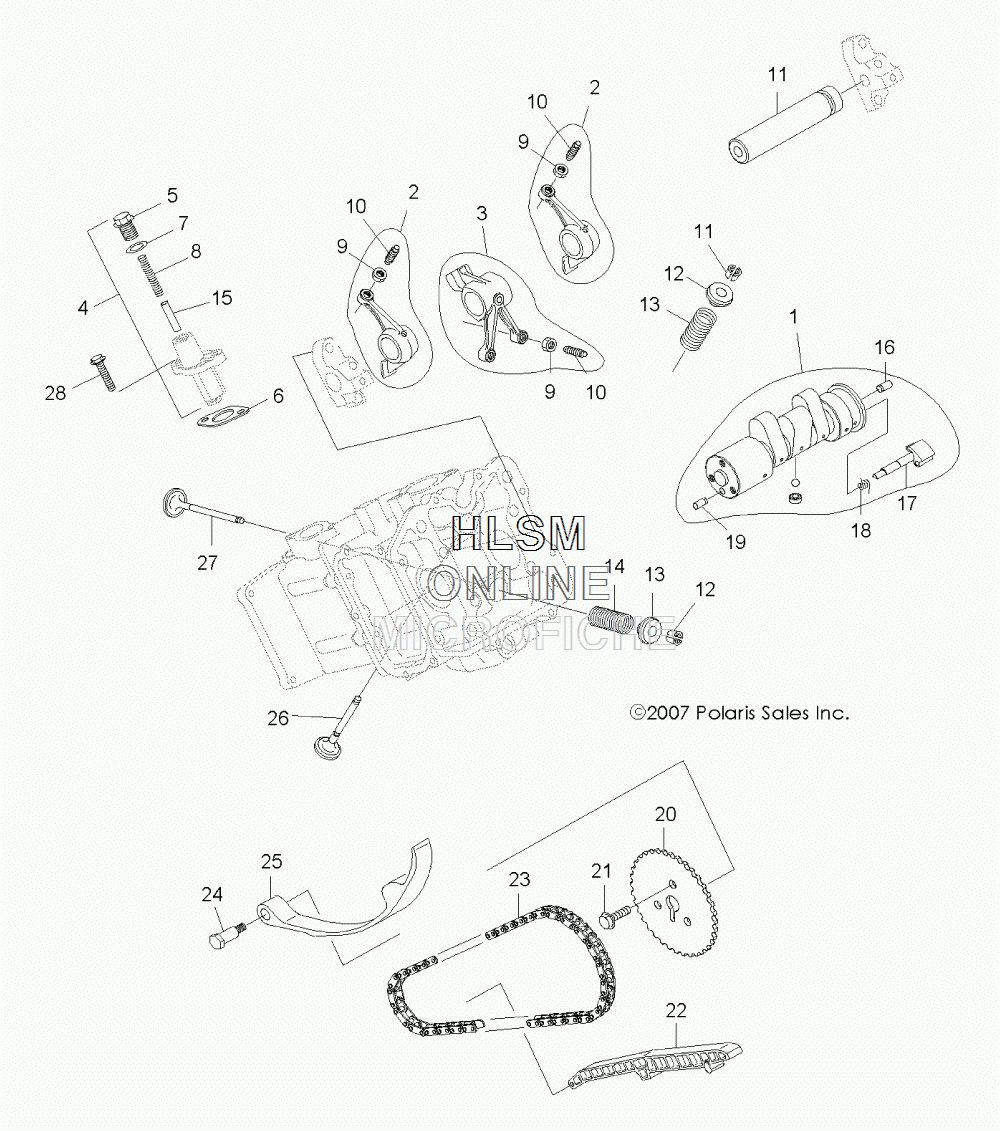

CAMSHAFT W/ VALVE ASSY. для Polaris SCRAMBLER 500 4X4 INTL [A12NG50FA] - 2012 года выпуска
-
№АртикулНазвание
-
13085855 CAMSHAFT (INCL. 16-19)CAMSHAFT (INCL. 16-19)
-
23084910 ASM., ROCKER ARM, INTAKE (INCL. 9,10)ASM., ROCKER ARM, INTAKE (INCL. 9,10)
-
33084913 ASM., ROCKER ARM, EXHAUST (INCL. 9,10)ASM., ROCKER ARM, EXHAUST (INCL. 9,10)
-
43086493 ASM., TENSIONER (INCL. 5,7,8,15)ASM., TENSIONER (INCL. 5,7,8,15)
-
53087129 PLUGPLUG
-
63086448 GASKET, TENSIONERGASKET, TENSIONER
-
73087130 GASKET, PLUGGASKET, PLUG
-
83087131 SPRING, TENSIONERSPRING, TENSIONER
-
93084912 NUTNUT
-
103084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
113084909 SHAFT, ROCKERSHAFT, ROCKER
-
123084908 COLLET, VALVECOLLET, VALVE
-
133087203 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
143086892 SPRING, VALVESPRING, VALVE
-
153087132 PINPIN
-
163086838 PIN, DOWELPIN, DOWEL
-
173085348 LEVER, RELEASELEVER, RELEASE
-
183085076 SPRING, RETURNSPRING, RETURN
-
193084899 PIN, DOWELPIN, DOWEL
-
203084914 SPROCKET 2SPROCKET 2
-
213081657 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
223084916 GUIDE, CHAINGUIDE, CHAIN
-
233084915 CHAIN, TIMINGCHAIN, TIMING
-
243084924 ASM., BOLT, PIVOT, LEVERASM., BOLT, PIVOT, LEVER
-
253084917 LEVERLEVER
-
263085349 VALVE, INTAKEVALVE, INTAKE
-
273085412 VALVE, EXHAUSTVALVE, EXHAUST
-
283083361 BOLT, FLANGEBOLT, FLANGE
