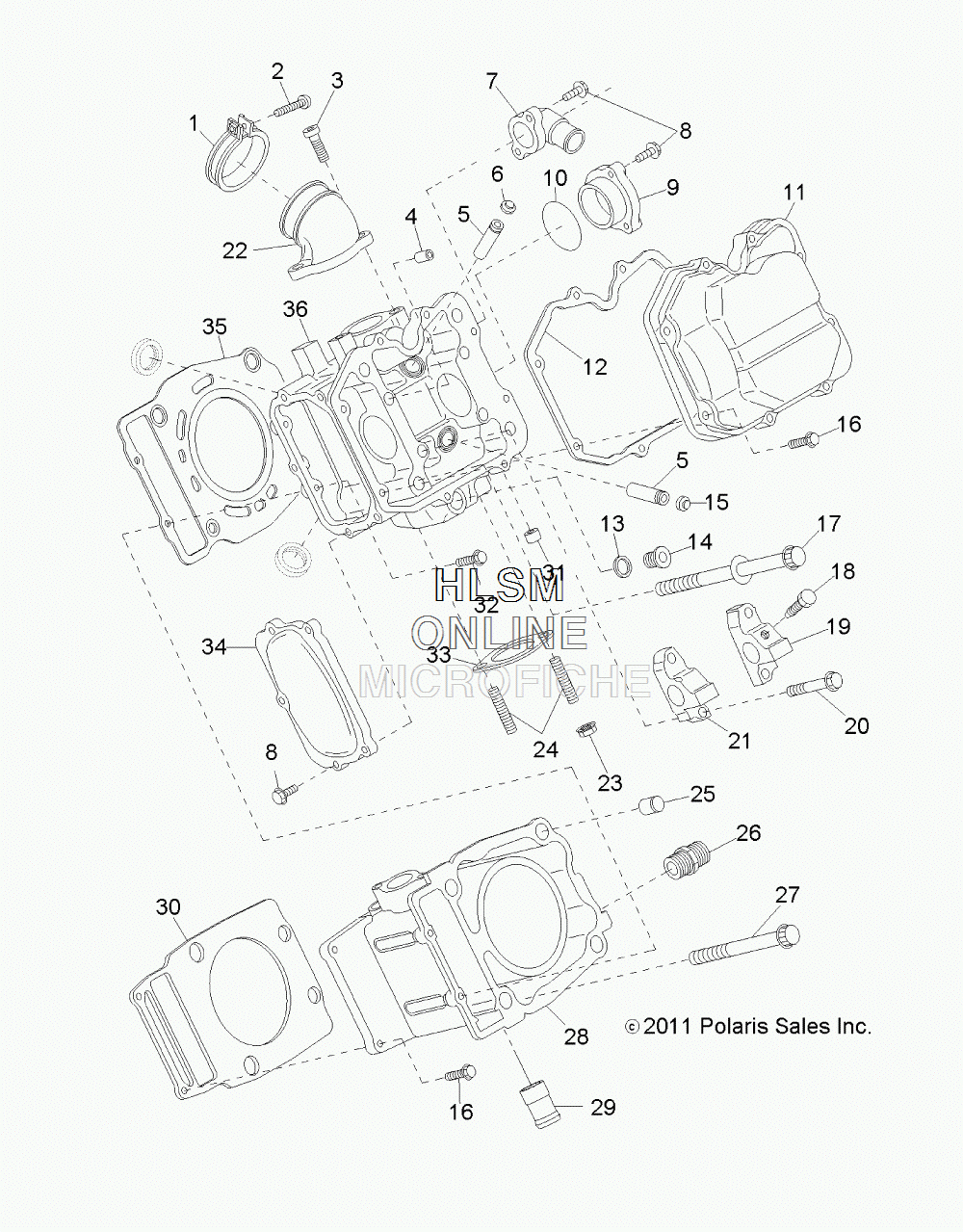

CYLINDER для Polaris SPORTSMAN 400 HO 4X4 - SAGE BRUSH GREEN METALLIC [A12MH46AX] - 2012 года выпуска
-
№АртикулНазвание
-
13083166 ASM., BAND, ADAPTER (INCL. 2)ASM., BAND, ADAPTER (INCL. 2)
-
23081497 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
33081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
43084857 PIN, STRAIGHTPIN, STRAIGHT
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
73084870 ADAPTERADAPTER
-
83084877 BOLT, FLANGEBOLT, FLANGE
-
93084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
103084867 O-RINGO-RING
-
113085073 COVER, ROCKERCOVER, ROCKER
-
123085074 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
133084861 GASKETGASKET
-
143084860 PLUGPLUG
-
153090098 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
163084874 BOLT, FLANGEBOLT, FLANGE
-
173084875 BOLTBOLT
-
183085854 BOLT, ROCKER SHAFTBOLT, ROCKER SHAFT
-
193084864 SUPPORT, VALVE ROCKER SHAFTSUPPORT, VALVE ROCKER SHAFT
-
203084876 BOLTBOLT
-
213084863 SUPPORT, VALVE ROCKER SHAFTSUPPORT, VALVE ROCKER SHAFT
-
223084879 ADAPTERADAPTER
-
233082910 NUT, FLANGENUT, FLANGE
-
243090095 STUDSTUD
-
253087266 PIPE, KNOCKPIPE, KNOCK
-
263084849 UNIONUNION
-
273084873 BOLT, FLANGEBOLT, FLANGE
-
283089241 ASM., CYLINDER (INCL. 29)ASM., CYLINDER (INCL. 29)
-
293090290 PIPEPIPE
-
303089966 GASKET, CYLINDERGASKET, CYLINDER
-
313084862 PLUG, BLINDPLUG, BLIND
-
323086781 BOLT, FLANGEBOLT, FLANGE
-
333085075 GASKETGASKET
-
343089242 COVER, CAMSHAFTCOVER, CAMSHAFT
-
353085337 GASKET, HEADGASKET, HEAD
-
363085527 HEAD, CYLINDER (INCL. 4-6,13-15,24,31)HEAD, CYLINDER (INCL. 4-6,13-15,24,31)
