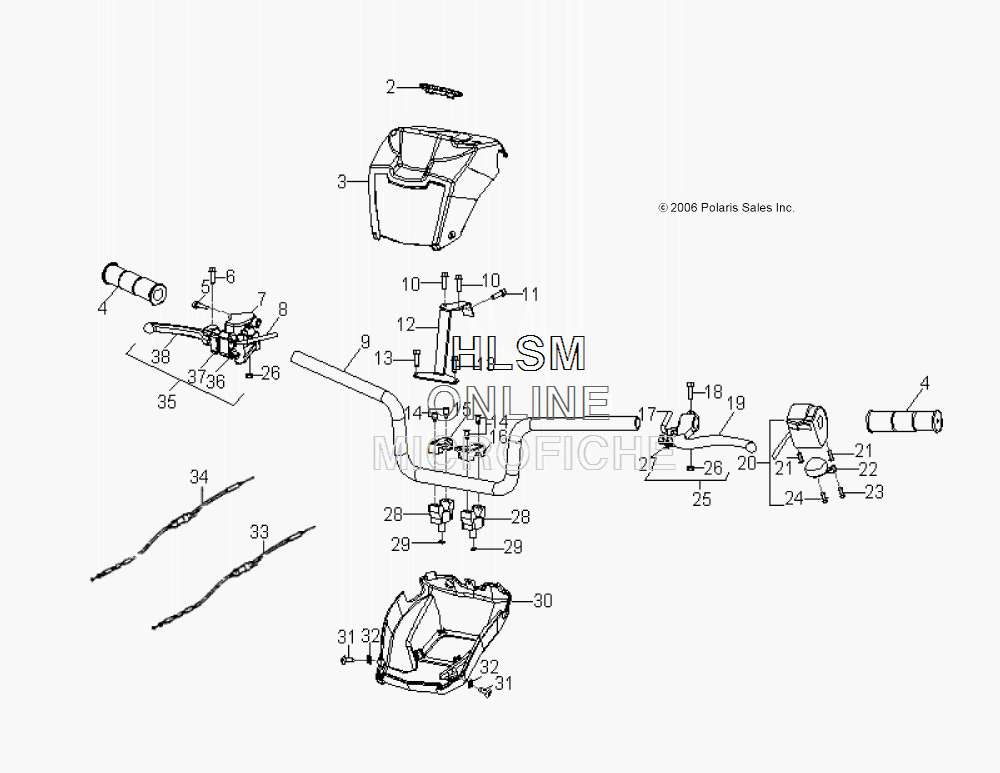

HANDLEBAR для Polaris SPORTSMAN 90 [A12FA09AA] - 2012 года выпуска
-
№АртикулНазвание
-
20454672 BEZEL, SPEEDOMETERBEZEL, SPEEDOMETER
-
30454215-498 POD, UPPER, GREENPOD, UPPER, GREEN
-
40453370 GRIP, HANDGRIPGRIP, HANDGRIP
-
50451788 BOLTBOLT
-
60450806 BOLT, BRAKE LEVER, RIGHT HANDBOLT, BRAKE LEVER, RIGHT HAND
-
70454732 MOUNT, LEVER, BRAKE, RIGHT HANDMOUNT, LEVER, BRAKE, RIGHT HAND
-
80453736 WIRE, BRAKE SWITCHWIRE, BRAKE SWITCH
-
90453722-067 HANDLEBAR, BLACKHANDLEBAR, BLACK
-
100452421 SCREWSCREW
-
110450614 SCREWSCREW
-
120453735 BRACKET, MOUNT, POD, BLACKBRACKET, MOUNT, POD, BLACK
-
130450040 SCREWSCREW
-
140450148 BOLTBOLT
-
150454711 CLAMP, SADDLE, UPPER, RIGHT HANDCLAMP, SADDLE, UPPER, RIGHT HAND
-
160454731 CLAMP, SADDLE, UPPER, LEFT HANDCLAMP, SADDLE, UPPER, LEFT HAND
-
170453815 SENSOR, BRAKESENSOR, BRAKE
-
180450807 BOLTBOLT
-
190450693 LEVER, BRAKE, SIDE, BLACKLEVER, BRAKE, SIDE, BLACK
-
200454735 ASM., SWITCH, LEFT HAND (INCL. 21-24)ASM., SWITCH, LEFT HAND (INCL. 21-24)
-
210451148 SCREWSCREW
-
220454734 ASM., MANUAL CHOKEASM., MANUAL CHOKE
-
230453708 BOLTBOLT
-
240451149 BOLTBOLT
-
250454043 ASM., LEVER, BRAKE, LEFT HAND (INCL. 17-19,26,27)ASM., LEVER, BRAKE, LEFT HAND (INCL. 17-19,26,27)
-
260450808 NUTNUT
-
270454042 LOCK, HAND BRAKELOCK, HAND BRAKE
-
280454710 CLAMP, SADDLE, LOWERCLAMP, SADDLE, LOWER
-
290450276 NUTNUT
-
300453347-070 POD, LOWER, BLACKPOD, LOWER, BLACK
-
310450514 SCREWSCREW
-
320450752 U-NUT, PLATEU-NUT, PLATE
-
330453499 CABLE, CHOKECABLE, CHOKE
-
340453500 CABLE, THROTTLECABLE, THROTTLE
-
350454816 ASM., LEVER, RIGHT HAND (INCL. 5-8,26,36-38)ASM., LEVER, RIGHT HAND (INCL. 5-8,26,36-38)
-
360454713 ARM, THROTTLEARM, THROTTLE
-
370450994 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
380450694 LEVER, BRAKE, SIDELEVER, BRAKE, SIDE
