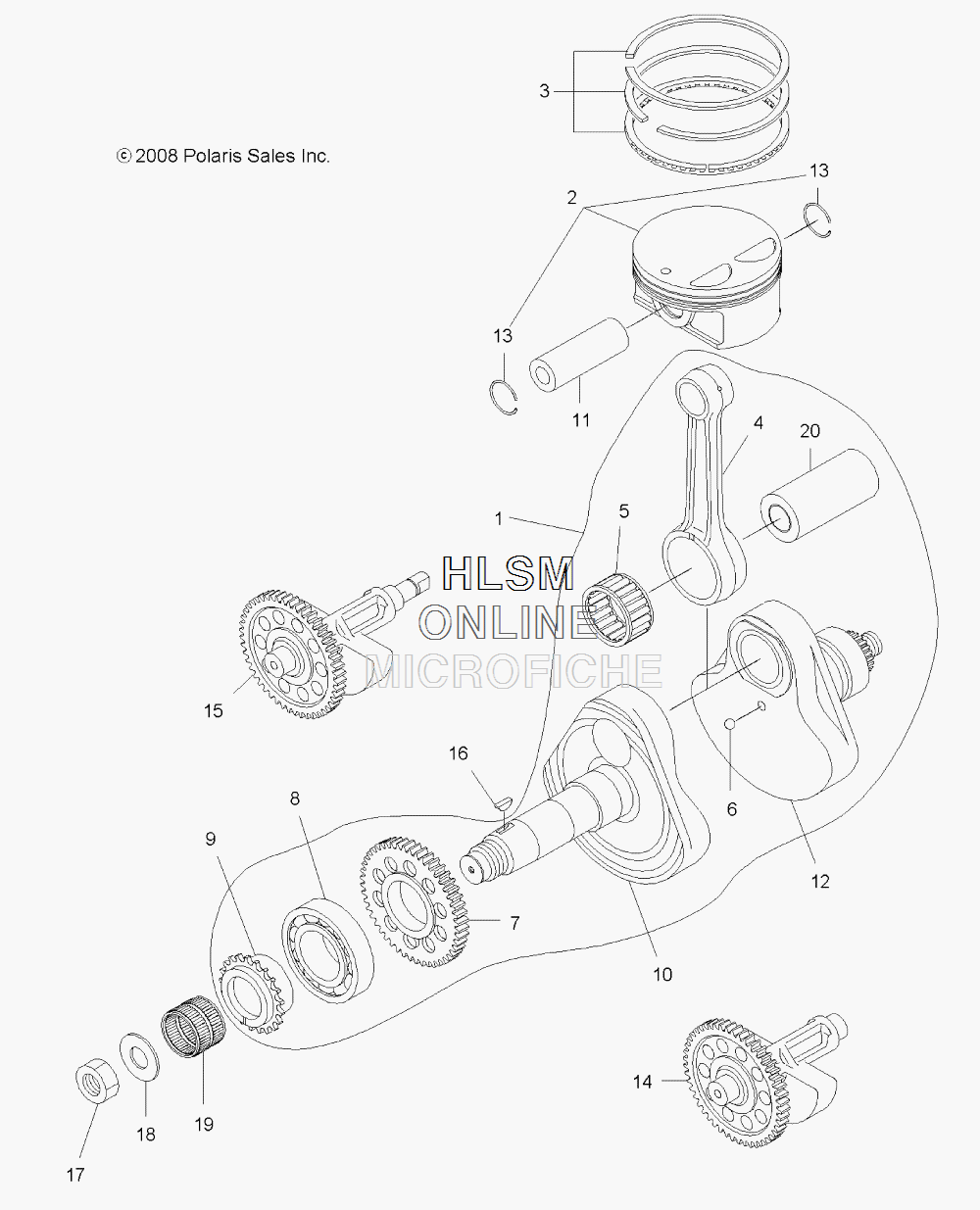

CRANKSHAFT W/ CYLINDER для Polaris SPORTSMAN EPS 550 - BRONZE MIST [A12ZN5EAH] - 2012 года выпуска
-
№АртикулНазвание
-
13090301 ASM., CRANKSHAFT (INCL. 4-10,12,20)ASM., CRANKSHAFT (INCL. 4-10,12,20)
-
23090173 PISTON, SET, STD. (INCL. PISTON, QTY 2 OF #13)PISTON, SET, STD. (INCL. PISTON, QTY 2 OF #13)
-
23090174 PISTON, SET, .25 OS (INCL. PISTON, QTY 2 OF #13)PISTON, SET, .25 OS (INCL. PISTON, QTY 2 OF #13)
-
23090175 PISTON, SET, .50 OS (INCL. PISTON, QTY 2 OF #13)PISTON, SET, .50 OS (INCL. PISTON, QTY 2 OF #13)
-
33090110 RING, PISTON SET, STD. (INCL. QTY 1 TOP, MIDDLE, LOWER RING)RING, PISTON SET, STD. (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
-
33090176 RING, PISTON SET, .25 OS (INCL. QTY 1 TOP, MIDDLE, LOWER RING)RING, PISTON SET, .25 OS (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
-
33090177 RING, PISTON SET, .50 OS (INCL. QTY 1 TOP, MIDDLE, LOWER RING)RING, PISTON SET, .50 OS (INCL. QTY 1 TOP, MIDDLE, LOWER RING)
-
43090172 ROD, CONNECTINGROD, CONNECTING
-
53085343 BEARING, LARGE ENDBEARING, LARGE END
-
63085024 BALL STEELBALL STEEL
-
73090211 GEAR, BALANCER, DRIVEGEAR, BALANCER, DRIVE
-
83080676 BEARING, BALLBEARING, BALL
-
93090108 SPROCKET, CRANKSPROCKET, CRANK
-
103090302 CRANKSHAFT 1CRANKSHAFT 1
-
113090109 PIN, PISTONPIN, PISTON
-
123090170 CRANKSHAFT 2CRANKSHAFT 2
-
133085534 CLIPCLIP
-
143090212 SHAFT, BALANCER 1SHAFT, BALANCER 1
-
153090213 SHAFT, BALANCER 2SHAFT, BALANCER 2
-
163081543 KEY, WOODRUFFKEY, WOODRUFF
-
173090113 NUTNUT
-
183090114 WASHERWASHER
-
193087976 BEARING, NEEDLEBEARING, NEEDLE
-
203090171 PIN, CRANKPIN, CRANK
