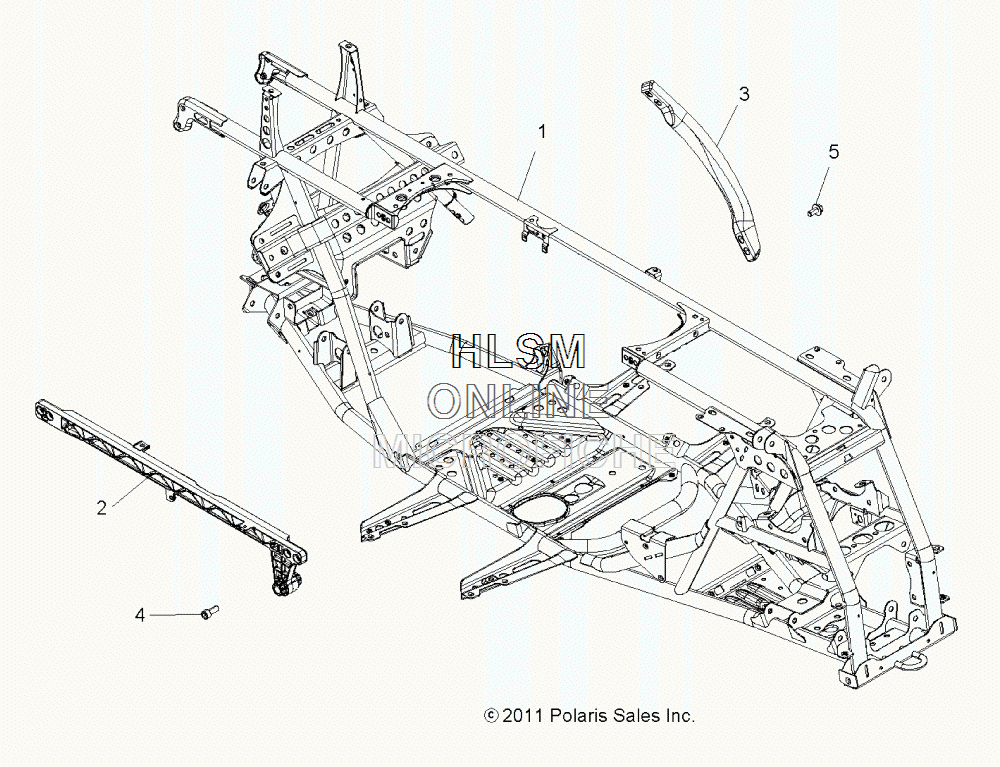

FRAME для Polaris SPORTSMAN FOREST 850 - BRONZE MIST [A12ZN8EFK] - 2012 года выпуска
-
№АртикулНазвание
-
11018256-067 FRAME, MAIN, BLACK (INCL. 2-5)FRAME, MAIN, BLACK (INCL. 2-5)
-
25135762-067 SUPPORT, FRAME, UPPER, RIGHT HAND, BLACKSUPPORT, FRAME, UPPER, RIGHT HAND, BLACK
-
35632013-067 SUPPORT, FRAME, LOWER, BLACKSUPPORT, FRAME, LOWER, BLACK
-
47517358 SCREWSCREW
-
57518700 SCREW, FLANGESCREW, FLANGE
