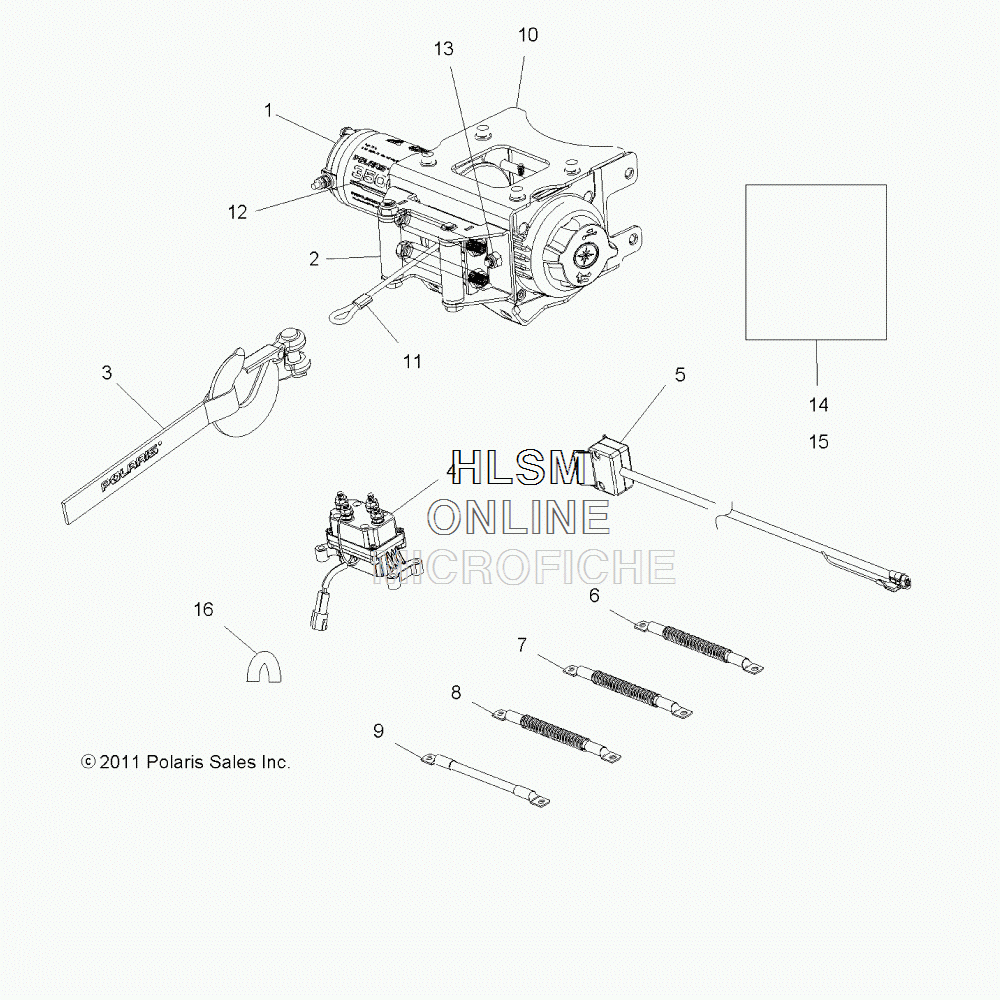

ACCESSORY - WINCH (BUILT 1/02/12 AND AFTER) для Polaris SPORTSMAN FOREST TRACTOR 500 - (SUNSET RED) [A12MN50ET] - 2012 года выпуска`
-
№АртикулНазвание
-
52878790 KIT, POLARIS, 2.5 WINCH (INCL. 1-5)KIT, POLARIS, 2.5 WINCH (INCL. 1-5)
-
12204631 WINCH, POLARIS, 2.5WINCH, POLARIS, 2.5
-
22411848 ROLLER, FAIRLEADROLLER, FAIRLEAD
-
32411836 HOOK, LATCHHOOK, LATCH
-
44013465 CONTACTORCONTACTOR
-
54013542 SWITCH, HANDLEBARSWITCH, HANDLEBAR
-
64013468-440 CABLE, WINCH, YELLOW, 6 GACABLE, WINCH, YELLOW, 6 GA
-
74013469-440 CABLE, WINCH, BLUE, 6 GACABLE, WINCH, BLUE, 6 GA
-
84013470-485 CABLE, POWER, WINCH, BLACK, 6 GACABLE, POWER, WINCH, BLACK, 6 GA
-
94013471-485 CABLE, POWER, WINCH, RED, 6 GACABLE, POWER, WINCH, RED, 6 GA
-
101018438 MOUNT, WINCHMOUNT, WINCH
-
112878890 CABLE, WINCH, STEELCABLE, WINCH, STEEL
-
127177991 DECAL, 2500 WINCHDECAL, 2500 WINCH
-
132878899 KIT, HARDWAREKIT, HARDWARE
-
149923642 MANUAL, INSTRUCTIONMANUAL, INSTRUCTION
-
159923644 MANUAL, WINCH GUIDEMANUAL, WINCH GUIDE
-
165210759 SHIMSHIM
