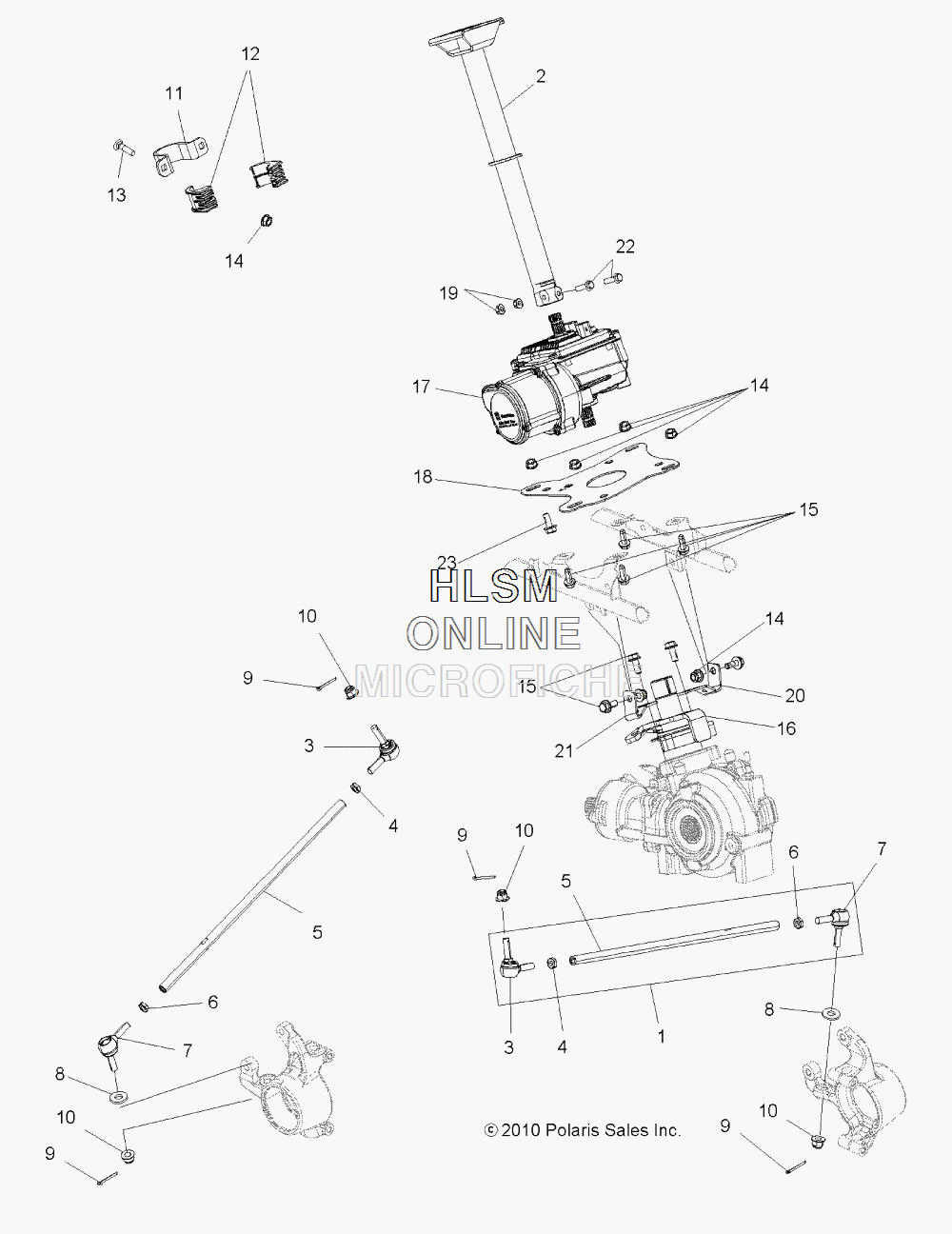

STEERING POST для Polaris SPORTSMAN TOURING EPS 850 - BOARDWALK BLUE [A12DN8EAF] - 2012 года выпуска
-
№АртикулНазвание
-
11823620 ASM., TIE ROD (INCL. 3-7)ASM., TIE ROD (INCL. 3-7)
-
21823781-329 POST, STEERING, UPPER, BLACKPOST, STEERING, UPPER, BLACK
-
37061175 ROD END, RIGHT HANDROD END, RIGHT HAND
-
47547452 NUT, JAM, RIGHT HANDNUT, JAM, RIGHT HAND
-
55136903 TIE RODTIE ROD
-
67547451 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
77061174 ROD END, LEFT HANDROD END, LEFT HAND
-
87556153 WASHERWASHER
-
97661205 PIN, COTTERPIN, COTTER
-
107547333 NUT, FLANGENUT, FLANGE
-
115249143 BRACKET, STEERING, UPPERBRACKET, STEERING, UPPER
-
125438904 BUSHING, STEERING, UPPERBUSHING, STEERING, UPPER
-
137518479 BOLT, CARRIAGEBOLT, CARRIAGE
-
147547317 NUT, FLANGENUT, FLANGE
-
157518450 BOLT, FLANGEBOLT, FLANGE
-
161823762 POST, STEERING, LOWERPOST, STEERING, LOWER
-
172411799 ASM., POWER STEERINGASM., POWER STEERING
-
185254633-329 BRACKET, POWER STEERING, BLACKBRACKET, POWER STEERING, BLACK
-
197547274 NUT, FLANGENUT, FLANGE
-
205253166-329 BRACKET, FRONT DRIVE, LEFT HAND, BLACKBRACKET, FRONT DRIVE, LEFT HAND, BLACK
-
215253167-329 BRACKET, FRONT DRIVE, RIGHT HAND, BLACKBRACKET, FRONT DRIVE, RIGHT HAND, BLACK
-
227516827 SCREW, FLANGESCREW, FLANGE
-
237518558 BOLT, FLANGEBOLT, FLANGE
