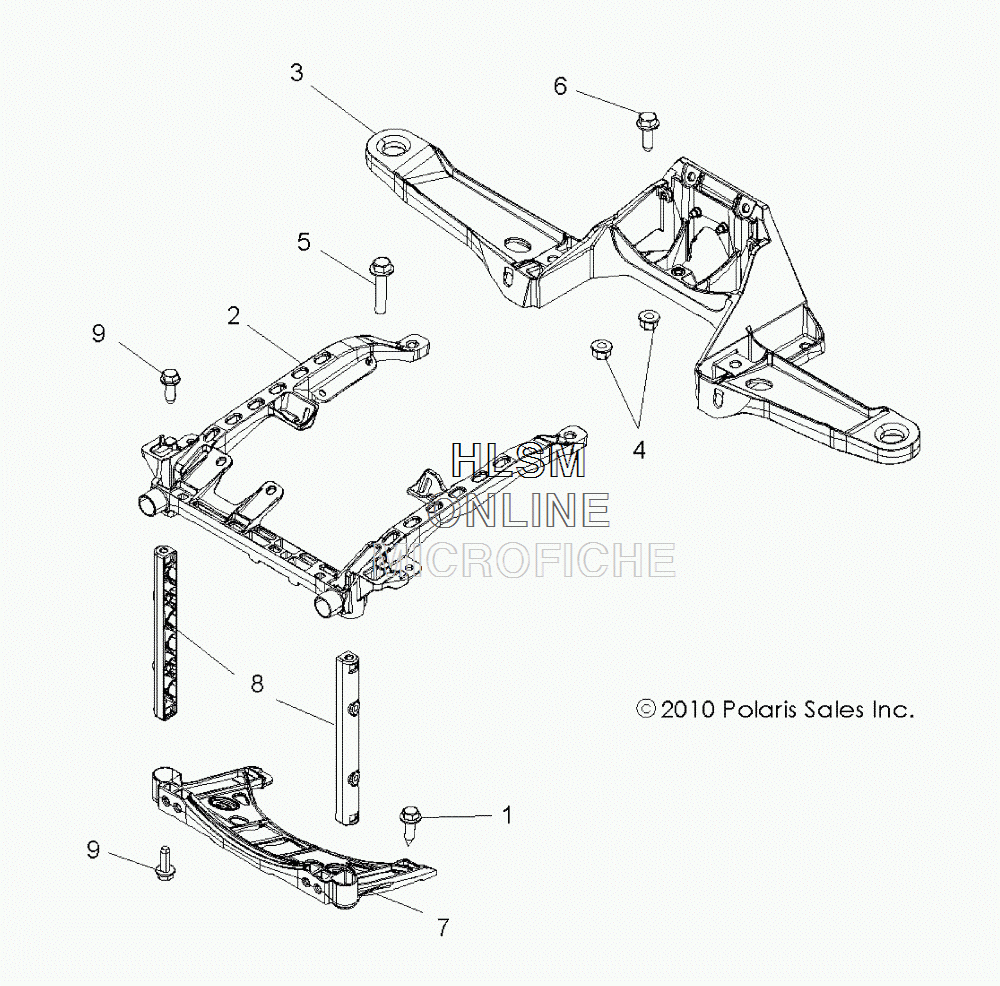

RACK - FRONT SUPPORT для Polaris SPORTSMAN X2 550 - (INDY RED) [A12TN55AZ] - 2012 года выпуска
-
№АртикулНазвание
-
17519156 SCREW, FLANGESCREW, FLANGE
-
25632355 SUPPORT, RACKSUPPORT, RACK
-
35632354 BULKHEADBULKHEAD
-
47547317 NUT, FLANGENUT, FLANGE
-
57518816 BOLTBOLT
-
67518450 BOLTBOLT
-
75632356 SUPPORT, RADIATORSUPPORT, RADIATOR
-
85632357 SUPPORT, RACK, FRONTSUPPORT, RACK, FRONT
-
97519156 SCREWSCREW
