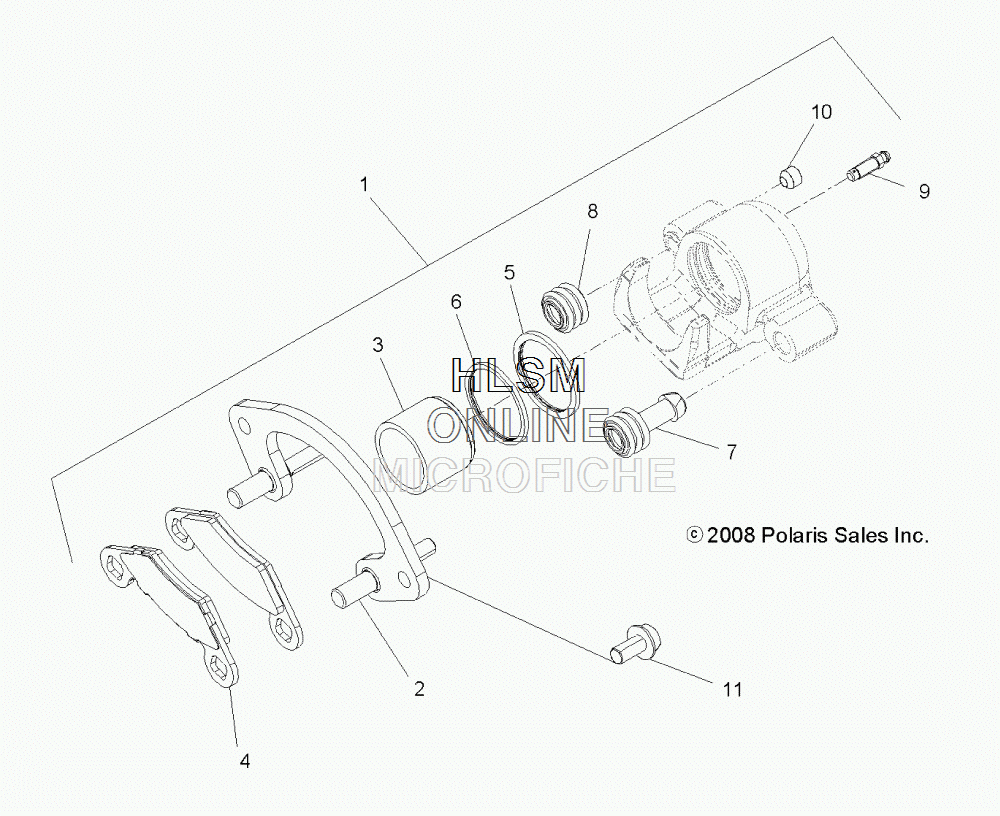

BRAKE - REAR CALIPER для Polaris SPORTSMAN X2 550 - SAGEBRUSH GREEN METALLIC [A12TN55AA] - 2012 года выпуска
-
№АртикулНазвание
-
11911301 ASM., BRAKE CALIPER, LEFT HAND (INCL. 1-10)ASM., BRAKE CALIPER, LEFT HAND (INCL. 1-10)
-
11911302 ASM., BRAKE CALIPER, RIGHT HAND (INCL. 1-10)ASM., BRAKE CALIPER, RIGHT HAND (INCL. 1-10)
-
21911225 ASM., CALIPER MOUNTASM., CALIPER MOUNT
-
35132405 PISTON, CALIPERPISTON, CALIPER
-
42203628 KIT, BRAKE PAD (INCL. 2 PADS)KIT, BRAKE PAD (INCL. 2 PADS)
-
55411596 SEAL, CALIPER, INNERSEAL, CALIPER, INNER
-
65411597 SEAL, CALIPER, OUTERSEAL, CALIPER, OUTER
-
75412505 BOOT, PIN BUSHINGBOOT, PIN BUSHING
-
85412506 BOOT, PIN SEALBOOT, PIN SEAL
-
97081343 SCREW, BLEEDERSCREW, BLEEDER
-
107518863 SCREW, SOCKET SETSCREW, SOCKET SET
-
117518760 BOLT, FLANGE (CALIPER MOUNTING)BOLT, FLANGE (CALIPER MOUNTING)
