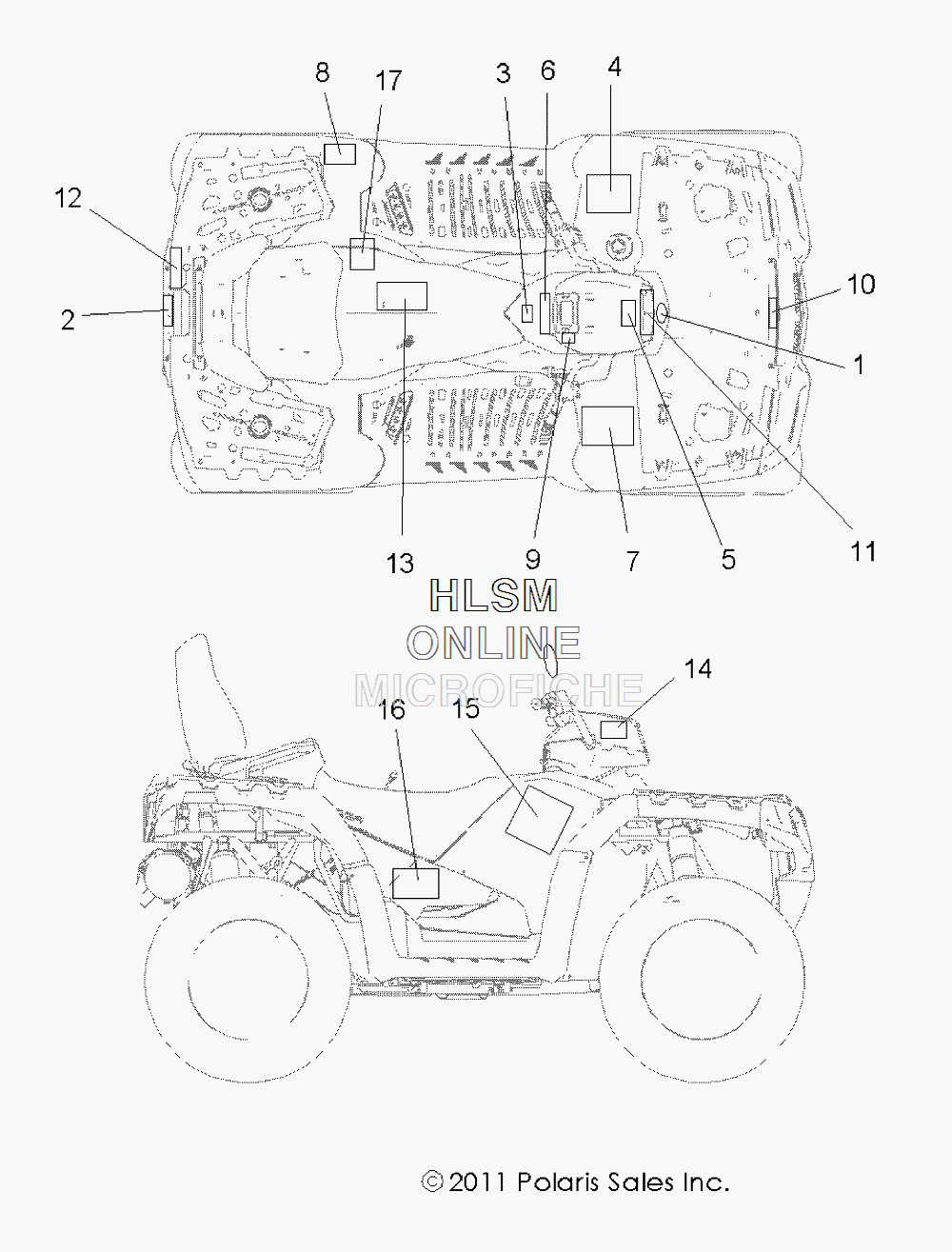

DECALS для Polaris SPORTSMAN XP TOURING EPS 550 INTL [A12DN5EFR] - 2012 года выпуска
-
№АртикулНазвание
-
17078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
27176168 DECAL, COMFORT RIDE SUSPENSIONDECAL, COMFORT RIDE SUSPENSION
-
37173027 DECAL, AGE WARNING, 16, QUADDECAL, AGE WARNING, 16, QUAD
-
47174362 DECAL, WARNING, GENERAL, CPSC, 2-UP, QUADDECAL, WARNING, GENERAL, CPSC, 2-UP, QUAD
-
57175528 DECAL, EPSDECAL, EPS
-
67175512 DECAL, WARNING, OVERRIDE, 4X4 SWITCHDECAL, WARNING, OVERRIDE, 4X4 SWITCH
-
77174361 DECAL, DISCRETIONARY WARNING, 2-UP, QUADDECAL, DISCRETIONARY WARNING, 2-UP, QUAD
-
87177977 DECAL, WARNING, TIRE/LOAD, 7, 7, 575DECAL, WARNING, TIRE/LOAD, 7, 7, 575
-
97174569 DECAL, IGNITION LIGHTINGDECAL, IGNITION LIGHTING
-
107175448 DECAL, WARNING, FRONT/REAR RACK, 120/240DECAL, WARNING, FRONT/REAR RACK, 120/240
-
117175819 DECAL, LENS COVERDECAL, LENS COVER
-
127175448 DECAL, WARNING, FRONT/REAR RACK, 120/240DECAL, WARNING, FRONT/REAR RACK, 120/240
-
137175826 DECAL, WARNING, CLUTCH COVER, QUADDECAL, WARNING, CLUTCH COVER, QUAD
-
147176826 DECAL, POD, 'TOURING'DECAL, POD, 'TOURING'
-
157177836 DECAL, SIDE, 'SPORTSMAN 550', LEFT HANDDECAL, SIDE, 'SPORTSMAN 550', LEFT HAND
-
157177819 DECAL, SIDE, 'SPORTSMAN 550', RIGHT HANDDECAL, SIDE, 'SPORTSMAN 550', RIGHT HAND
-
167176820 DECAL, REAR, 'AWD', LEFT HANDDECAL, REAR, 'AWD', LEFT HAND
-
167176821 DECAL, REAR, 'AWD', RIGHT HANDDECAL, REAR, 'AWD', RIGHT HAND
-
177175883 DECAL, CLUTCH, RETAINING BOLTDECAL, CLUTCH, RETAINING BOLT
